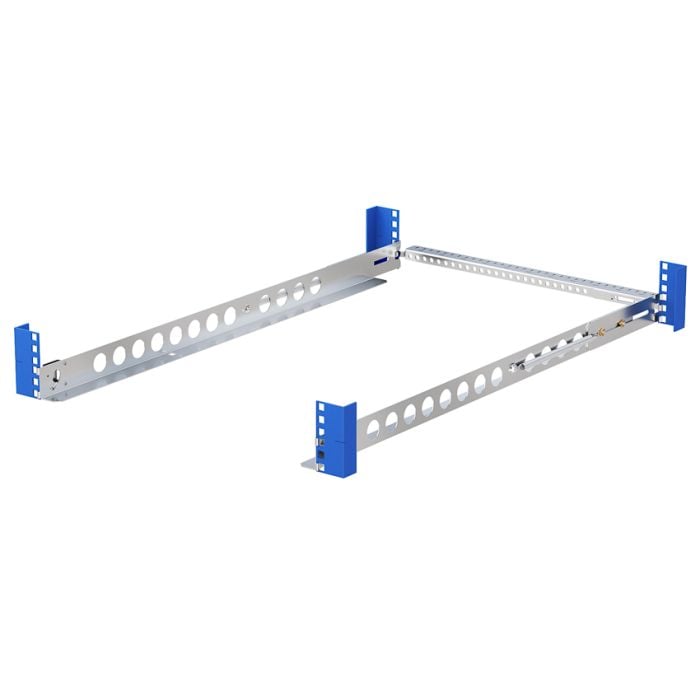

Tool-less Rack Rails

As low as €111.15 €95.00
In stock

Installs quickly into square hole, 4Post racks

  • Rackmounts a variety of equipment
  • Tool-less rack rails install in seconds
  • 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)

Dell, HP, Apple & IBM compatible

  • Alternative to OEM slide rails
  • Mounting depth from 28 - 30" (711 - 762 mm)
  • Tool-less, cable management bar included
  • Work with square hole, 4Post racks

2Post rack mounting

  • Center mount installation also requires 2POST-2UKIT
  • Flush mount installation also requires 4UKIT-003

Tool-less rack rails can be installed into racks with square holes. Rackmount equipment weighing up to 200 lbs (90.7 kgs) can be installed using a tool-less rack rail. The rack rail is 27.87" (708 mm) deep and can be installed into server racks with installation depths from 28 - 30" (711 - 762 mm) and supports equipment up to 35" (889 mm). The tool-less rack rail is primarily for 4Post racks, but it can be installed in other 2Post configurations as well with the addition of 2Post conversion kits. Center mount installations require 2POST-2UKIT and flush mount installations require 4UKIT-003


XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
10 - 31.5"
(254-800 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
2-Post Only

Mounting Depth Range
Center or Flush Mount

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
28 - 30"
(711 - 762 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)

Sizes Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
No

XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

Size Available
1U, 2U, 3U

Rack Type
4-Post

Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)

Rack Hole Type
Square, Round, Threaded

Cable Management Bar
Yes

Blue Stack Logo Web CC (desktop image)Blue Stack Logo Web CC (mobile image)
XUKIT-109 Universal Rack Rails  (desktop image)XUKIT-109 Universal Rack Rails  (mobile image)
XUKIT-009 2 Post Rack Rails  (desktop image)XUKIT-009 2 Post Rack Rails  (mobile image)
XUKIT-109-QR Tool-Less Rack Rails (desktop image)XUKIT-109-QR Tool-Less Rack Rails (mobile image)
XUKIT-109-20 Universal Shallow Rack Rails (desktop image)XUKIT-109-20 Universal Shallow Rack Rails (mobile image)
XUKIT-109-31 Deep Mount Rack Rails  (desktop image)XUKIT-109-31 Deep Mount Rack Rails  (mobile image)

XUKIT-109

XUKIT-009

XUKIT-109-QR

XUKIT-109-20

XUKIT-109-31

Sizes Available

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

1U, 2U, 3U

Rack Type

4-Post

2-Post Only

4-Post

4-Post

4-Post

Mounting Depth Range

10 - 31.5"
(254-800 mm)

Center or Flush Mount

28 - 30"
(711 - 762 mm)

1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)

11 - 39.5"
(279 - 1003 mm)

Rack Hole Type

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Square, Round, Threaded

Cable Management Bar

Yes

Yes

Yes

No

Yes

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 1UKIT-109-QR | 2UKIT-109-QR | 3UKIT-109-QR
  • Assembly Components:
    • (1) Left Fixed Rail
    • (1) Right Fixed Rail
    • (1) Cable Crossbar
    • (1) 30” Hook and Loop Cable Tie
Dell Part Number 1UKIT-109-QR - A2849214
Synnex Part Number 1UKIT-109-QR - 5744754
2UKIT-109-QR - 5744756
3UKIT-109-QR - 5744757
Ingram Part Number 1UKIT-109-QR - T25824
2UKIT-109-QR - T25825
3UKIT-109-QR - T25826
Fixed/Sliding Fixed
Finish Zinc plated
Hole Type Square hole only
