Deep Rackmount Rails

Availability: In stock

Deep Rackmount Rails

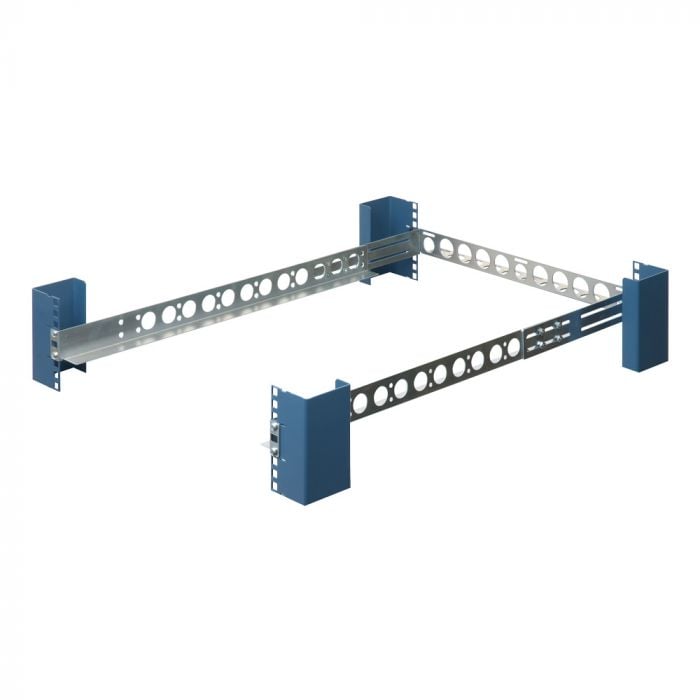

  • Front view - 1U Rackmount Rail
    Front view - 1U Rackmount Rail
    close
  • Front view with server - 1U Rackmount Rails
    Front view with server - 1U Rackmount Rails
    close
  • Rear view - 1U Rackmount Rails
    Rear view - 1U Rackmount Rails
    close
  • Front view with server - 2U Rackmount Rails
    Front view with server - 2U Rackmount Rails
    close
  • Front view with desktop - 3U Rackmount Rails
    Front view with desktop - 3U Rackmount Rails
    close

Designed for deep server racks

  • Installs in server racks up to 39.5" (1003 mm)
  • Work with square, round, threaded holes
  • 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)

Dell, HP & IBM compatible

  • Alternative to OEM slide rails
  • Mounting depth from 0" to 39.5" (0 mm - 1003 mm)
  • Universal rails mount in any 4Post rack

Alternate products

Rack Solutions Promise
Product Name SKU Price Qty
1U, 31" Rackmount Rail 1UKIT-109-31
Excl. VAT: €84.00 Incl. VAT: €98.28
2U, 31" Rackmount Rail 2UKIT-109-31
Excl. VAT: €99.00 Incl. VAT: €115.83
3U, 31" Rackmount Rail 3UKIT-109-31
Excl. VAT: €110.00 Incl. VAT: €128.70
Description

Details

Features

Deep Rackmount Rail Features

31" Universal Rackmount Rails are designed for deep Server Racks. These Rackmount Rails can be installed into racks with square, round, or threaded holes. Rack Mount Equipment weighing up to 200 lbs (90.7 kgs) can be installed using Rackmount Rails. The Rackmount Rail is 30.6" (777 mm) deep and can be installed into Server Racks with installation depths up to 39.5" (1003 mm).

Additional Information

Additional Information

Rail OEM Universal
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware
  • Components
  • (1) Left Fixed Rail
  • (1) Right Fixed Rail
  • (2) Rear Brackets
  • (1) Cable Crossbar
  • (1) 30" Velcro Cable Tie
  • Includes screws, cage-nuts, and nuts for all standard rack types

  • Assembly Hardware Kit
  • (8) 8-32 Flat Head Screws
  • (8) 8-32 Nuts
  • Cage Nuts
  • (2) 10-32 Cage Nuts
  • (2) 12-24 Cage Nuts
  • (2) M6 Cage Nuts

  • Rack Hardware
  • (12) 10-32 Pan Head Screws
  • (12) 12-24 Pan Head Screws
  • (12) 12-24 Cage Nuts
  • (12) 12-24 Square Nuts
Cable Management Cabling Crossbar
Overall Installation Depth Min: 31" (787 mm)
Max: 41.25 (1047 mm)
Rail Type Fixed Rail
Mounting Depth Range 0" to 39.5" (0mm to 1003.3 mm)
Tech Notes The Rackmount Rail Kit should be used when the depth of the Server Rack exceeds the installation range of the Server's Rail Kit. The Rackmount Rail Kit can be used in circumstances where the original Rail Kit has been lost or damaged.
Finish Zinc Plated
Weight Capacity 1U: 45 lbs (20.4 kgs)
2U: 75 lbs (34 kgs)
3U: 200 lbs (90.7 kgs)
Rack Units 1U, 2U, or 3U
Rack Type 4 Post
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24, and Metric M6
