Universal Rack Rails

Availability: In stock

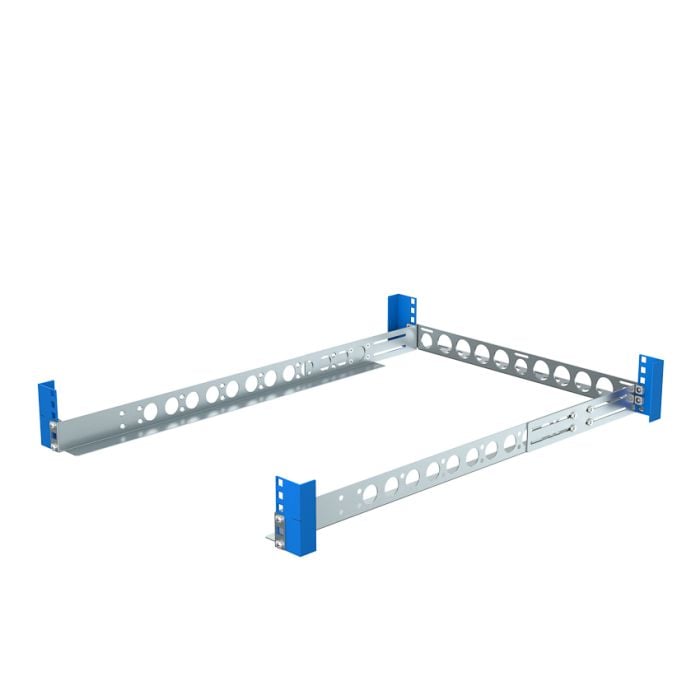

Universal Rack Rails
  • Front view - 1U Universal Rack Rails
    Front view - 1U Universal Rack Rails
    close
  • Front view with server - 1U Universal Rack Rails
    Front view with server - 1U Universal Rack Rails
    close
  • Top view - 1U Universal Rack Rails
    Top view - 1U Universal Rack Rails
    close
  • Front view - 2U Universal Rack Rails
    Front view - 2U Universal Rack Rails
    close
  • Front view with server - 2U Universal Rack Rails
    Front view with server - 2U Universal Rack Rails
    close
  • Front view - 3U Universal Rack Rails
    Front view - 3U Universal Rack Rails
    close
  • Front view with tower - 3U Universal Rack Rails
    Front view with tower - 3U Universal Rack Rails
    close
  • Rear view with tower - 3U Universal Rack Rails
    Rear view with tower - 3U Universal Rack Rails
    close
  • Top view - 3U Universal Rack Rails
    Top view - 3U Universal Rack Rails
    close

Fits any 4 Post rack

  • Fits square, round, threaded holes
  • Mounting depth: 10 - 31.75" (254 - 806 mm)
  • Includes cabling crossbar (installation is optional)

Rackmounts 19" equipment

  • 1U, 2U or 3U+
  • 45, 75 or 200 lb (20, 34 or 91 kg) capacity
  • Dell, HP, IBM, Apple compatible
  • Replaces OEM slide rails

Alternate rails

Rack Solutions Promise
Product Name SKU Price Qty
1U, Universal Rack Rails 1UKIT-109
Excl. VAT: €75.00 Incl. VAT: €87.75
2U, Universal Rack Rails 2UKIT-109
Excl. VAT: €95.00 Incl. VAT: €111.15
3U, Universal Rack Rails 3UKIT-109
Excl. VAT: €108.00 Incl. VAT: €126.36
Description

Details

Features



Die Rack Solutions Universal Server-Rack-Schienen kommen in 1U, 2U oder 3U + Größen, mit einer Gewichtskapazität von jeweils 45, 75 und 200 Pfund. Die Universal-Schienen sind so ausgelegt, dass sie die OEM-Schienen ersetzen, die mit Apple-, HP-, IBM- und Dell-Server-Racks geliefert werden und eine flexible Lösung für beschädigte Server-Rack-Schienen oder OEM-Gleitschienen darstellen. Das Produkt wurde entwickelt, um eine Vielzahl von Server-Racks zu unterstützen und ist kompatibel mit Setups, die standardmäßige quadratische, gerundete und Gewindelöcher erfordern. Um die Kompatibilität mit verschiedenen Geräten und Server-Racks zu erhöhen, unterstützt das Rail-Rack Montagetiefen zwischen 0 und 31,75 Zoll. Die Server-Rack-Schiene hat eine Vielzahl von komplementären Produkten und Hardware, um Montage, Installation und Kabel-Management zu erleichtern. Hardware-Artikel sind Schrauben, Käfig-Muttern und Muttern für alle Rack-Typen. Eine Kabel-Management-Schiene ist auch enthalten, um das Routing zu unterstützen. Ebenso sind Klettverschlüsse enthalten, um Kabel sicher zu halten. Insgesamt können die universellen, verzinkten, festen Universal Server Rack Schienen den Anforderungen einer Vielzahl von Server-Installationslösungen gerecht werden, so dass Rechenzentren ihre OEM-Schienen durch ein hochwertiges, zuverlässiges System ersetzen können.


The Rack Solutions Universal Server Rack Rails come in either 1U, 2U or 3U+ sizes, with weight capacities of 45, 75 and 200 pounds, respectively. The universal rails are designed to replace OEM rails included with Apple, HP, IBM and Dell server racks, providing a flexible solution for damaged server rack rails or OEM slide rails. The product is designed to support a variety of server racks, and is compatible with setups requiring standard square, rounded and threaded holes. To further its compatibility with various different devices and server racks, the rail rack supports mounting depths between zero and 31.75 inches. The server rack rail ships with a variety of complementary items and hardware to make assembly, installation and cable management easier. Hardware items include screws, cage-nuts and nuts for all rack types. A cable management bar is also included to assist with routing, and velcro strips come included to keep cords secure. Overall, the all-purpose, zinc plated, fixed Universal Server Rack Rails can meet the needs of a variety of server installation solutions, allowing data centers to replace their OEM rails with a high-quality, reliable system.


Testimonials

"Installed those universal rails from Rack Solutions yesterday - it was so easy and worked so well that the assistant editor literally couldn't believe it. Wish I would have discovered these first (before wasting precious time and money on extenders, adapters, etc.) And I mean every word. Thanks for the great service, quick turnaround, and excellent product!" :)

Sent from my iPhone
Shaun O.

Additional Information

Additional Information

Assembly Notes Ships un-assembled
Equipment Depth The rack rails support flange is 23.5" (597 mm) long.
The rack rail will support servers computers or equipment up to 35" (889 mm) deep.
Rack Type 4 Post
Fixed/Sliding Fixed
Shelf Surface Area *Maximum: 17.4" (442 mm)
1U Minimum: 16.625" (422 mm)
2U Minimum: 16.375" (416 mm)
3U Minimum: 16.75" (413 mm)
*Maximum equipment width allowed is based on worst case conditions. Wider equipment may fit depending on the mounting configuration and/or actual equipment dimensions. Please contact technical support for further assistance.
Finish Zinc plated
Mounting Depth Range 10" - 31.75" (254 - 806 mm)
Included Hardware
  • Components
  • (1) Left fixed rail
  • (1) Right fixed rail
  • (2) Rear brackets
  • (1) Cable crossbar
  • (1) 30" Velcro cable tie
  • Includes screws, cage-nuts, and nuts for all standard rack types

  • Assembly hardware kit
  • (8) 8-32 flat head screws
  • (8) 8-32 nuts
  • Cage Nuts
  • (2) 10-32 cage nuts
  • (2) 12-24 cage nuts
  • (2) M6 cage nuts

  • Rack Hardware
  • (12) 10-32 pan head screws
  • (12) 12-24 pan head screws
  • (12) 12-24 cage nuts
  • (12) 12-24 square nuts
Weight Capacity 1U: 45 lbs (20.4 kgs)
2U: 75 lbs (34 kgs)
3U: 200 lbs (90.7 kgs)
Rack Units 1U, 2U or 3U
Tool-less/Standard Standard
Overall Installation Depth Maximum overall depth is the same as the rack's mounting depth
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
RoHS Compliant Yes
