Universal Shallow Rack Rails
Fits square, round or threaded holes
- Rack mounts a variety of equipment
- Mounting depths from 10" - 24" (254 - 609.6 mm)
- 45 lbs, 75 lbs or 200 lbs capacity (1U, 2U, 3U)
Dell, HP & IBM compatible
- Alternative to OEM slide rails

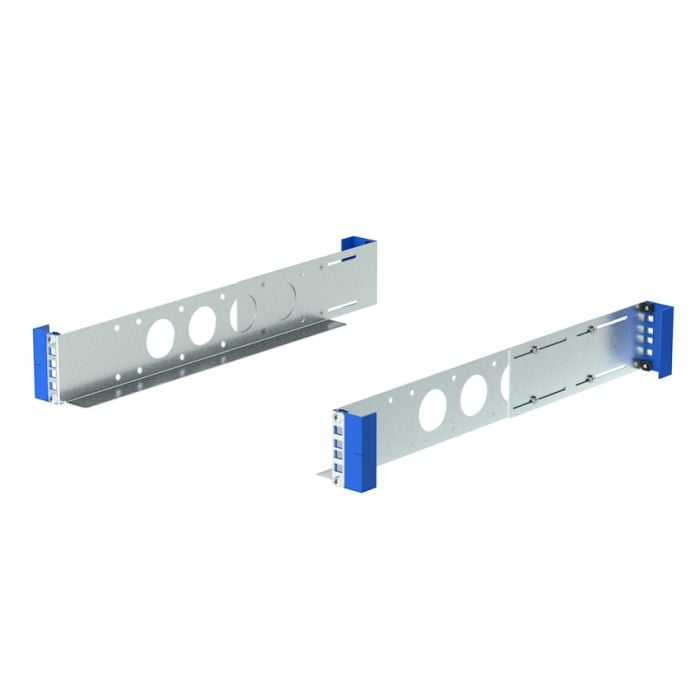

Rack rails can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 200 lbs (91 kgs) can be installed using rack rails. The rack rail can be installed into server racks with installation depths from 10" - 24" (254 - 609.6 mm).
Adjustable Rack Rails and Square Hole Mounting
The rail kit depth is fully adjustable from 10"-31.75" (254mm-806mm) all by loosening the screws and nuts. The rail kit is made from 18 GA steel and is zinc plated. The RackSolutions Universal rail kits are square hole to allow for the rails to be compatible with round, square or threaded hole racks.
The rails to be compatible with round, square or threaded hole racks.
XUKIT-109
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-009
Sizes Available
1U, 2U, 3U
Rack Type
2-Post Only
Mounting Depth Range
Center or Flush Mount
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-109-QR
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
28 - 30"
(711 - 762 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-109-20
Sizes Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
No
XUKIT-109-31
Size Available
1U, 2U, 3U
Rack Type
4-Post
Mounting Depth Range
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Cable Management Bar
Yes
XUKIT-109
XUKIT-009
XUKIT-109-QR
XUKIT-109-20
XUKIT-109-31
Sizes Available
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
1U, 2U, 3U
Rack Type
4-Post
2-Post Only
4-Post
4-Post
4-Post
Mounting Depth Range
10 - 31.5"
(254-800 mm)
Center or Flush Mount
28 - 30"
(711 - 762 mm)
1U: 11 - 28"
(279 - 711mm)
2U: 10 - 27"
(253 - 686 mm)
11 - 39.5"
(279 - 1003 mm)
Rack Hole Type
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Square, Round, Threaded
Cable Management Bar
Yes
Yes
Yes
No
Yes
| Dell Part Number | 1UKIT-109-20 - A2778999 |
|---|---|
| Synnex Part Number | 1UKIT-109-20 - 4614573 2UKIT-109-20 - 4614574 3UKIT-109-20 - 4614575 |
| Ingram Part Number | 1UKIT-109-20 - Y74703 2UKIT-109-20 - PQ8682 |
| Rail OEM | Universal |
| Fixed/Sliding | Fixed |
| Tool-less/Standard | Standard |
| Included Hardware |
|
| Assembly Notes | Ships Fully Assembled |
| Overall Installation Depth | Min: 19.5" (495.3 mm) Max: 27" (685.8 mm) |
| Rail Type | Fixed |
| Mounting Depth Range | The Rack Rails support flange is 19 1/2" (495.3 mm) long. The Rack Rail will support servers, computers or equipment up to 24" (609.6 mm) deep. |
| Finish | Galvanized |
| Rack Units | 1U, 2U, or 3U |
| Rack Type | 4 Post |
| Amazon ASIN | 1UKIT-109-20 = B003E9N3V2 2UKIT-109-20 = B0093HG1HM 3UKIT-109-20 = B00UVKAMWU |
| RoHS Compliant | Yes |
| Hole Type | Compatible with the industry standard 3/8" square hole racks Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24, and Metric M6 |
| TAA Compliant | Yes |
