Heavy Duty Relay Rack Shelf Base
Heavy Duty (500 lbs) Shelf for 2 Post Relay Rack
- Designed for the largest and heaviest equipment
- Supports large drive arrays: SAN & NAS appliances
- Supports large chassis servers and UPS Units
- Supports large blade centers: IBM, Dell, HP
- Solid Steel Construction
- Durable Zinc plated finish
Fits any 2 Post Rack
- Shelf Depth: 29.15" (740.41mm)
- Weight Capacity: 500 lb (227 kgs)
- Mounting Depth: 29.15" (740.41mm)
- Compatible with 10-32 Threads and 12-24 Threads
- Shelf does not come with Conversion Brackets (must be purchased separately)
- Includes two shelf pieces (front and back), use together or individually as needed
Want something more versatile? Check out our configurable (opens in a new tab) or adjustable (opens in a new tab) version.
See "Additional Information"Â for Tech Specs.
RackSolutions Relay Rack Shelf - Heavy Duty was designed for 2-post relay racks that need to support heavy duty equipment up to 500 lbs. Created for the largest and heaviest equipment, our relay rack shelf is made of solid steel construction and zinc plated finish to be able to support large blade centers such as IBM, Dell, and HP. In addition, our heavy duty relay shelf can support UPS units, large drive arrays (SAN & NAS appliances) and large chassis servers.
Our 2 post relay rack shelf has a depth of 29.15 inches (740.41 mm) and a weight capacity of 500 lbs (227 kgs), making it perfect for mounting a large variety of electronic equipment on your 2post rack that you might not normally be able to mount.
Our 2post relay rack heavy duty shelf will require a 2post conversion bracket for installation, which will need to be purchased separately. You can select one based on U-height: (2POST-4UKIT, 2POST-5UKIT, 2POST-7UKIT).
NOTE: This product kit comes with two shelf pieces, one for the front and one for the back, forming a complete and ready-to-use rack shelf. The images below demonstrate what your rack setup will look like with both shelf pieces. If your equipment does not require both pieces, then you can use a single shelf piece. You do not need to purchase them separately.
Relay Rack Shelf - Heavy Duty
Our 2post Relay Rack Heavy Duty Shelf designed for 2Post Racks does NOT come with conversion brackets.

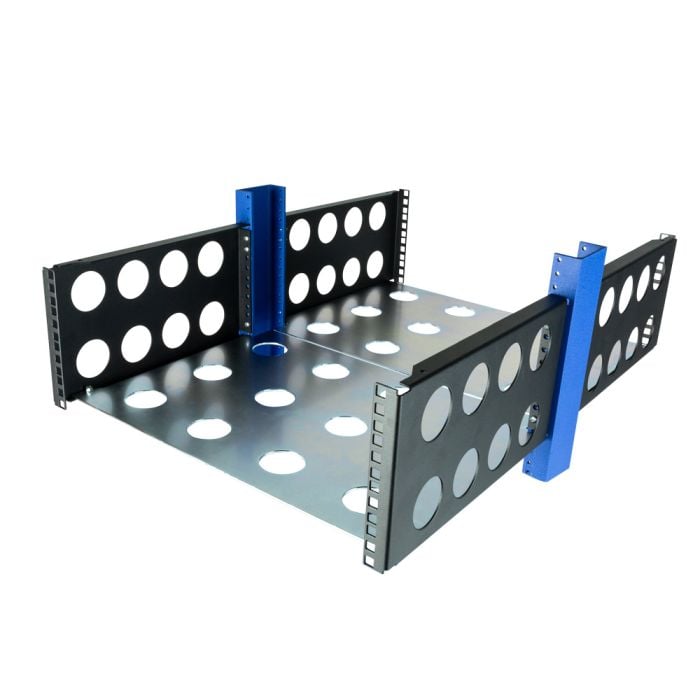

2post Conversion Brackets with Relay Rack Shelf
Our 2post Relay Rack Heavy Duty Shelf will require a 2post conversion bracket for installation, which will need to be purchased separately.
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | No | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | Rack Type | 2 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Vented | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Fixed | Weight Capacity | 300 - 550 lbs | Finish | Shelf: zinc plated Conversion kits: black textured powder coat |
Material | Solid Steel Construction | Synnex Part Number | 2USHL-100 - 4757181 | Ingram Part Number | 2USHL-100 - K78530 |
|---|
Kit Contents:
- (2) Heavy Duty Shelf
Mounting Hardware:
- (4) 12-24 x .500 Hex Screw
Kit Contents:
- (2) Left Conversion Brackets
- (2) Right Conversion Brackets
Bracket to Rack Hardware Kit:
- (16) 12-24 Slotted Hex Bolts
Equipment Install Hardware Kit:
- (10) M6x0.1mm Pan Head Screws
- (12) M6x0.1mm Cage Nut
Kit Contents:
- (2) Left Conversion Brackets
- (2) Right Conversion Brackets
Bracket to Rack Hardware Kit:
- (16) 12-24 Slotted Hex Bolts
Equipment Install Hardware Kit:
- (10) M6x0.1mm Pan Head Screws
- (12) M6x0.1mm Cage Nut
Kit Contents:
- (2) Left Conversion Brackets
- (2) Right Conversion Brackets
Bracket to Rack Hardware Kit:
- (16) 12-24 Slotted Hex Bolts
Equipment Install Hardware Kit:
- (10) M6x0.1mm Pan Head Screws
- (12) M6x0.1mm Cage Nut
