2U Configurable 2 Post Relay Rack Shelf - 20" depth

Availability: In stock

2U Configurable 2 Post Relay Rack Shelf - 20" depth
  • 2USHL-020FULL-20V
    2USHL-020FULL-20V
    close
  • 2USHL-020FULL-20S
    2USHL-020FULL-20S
    close

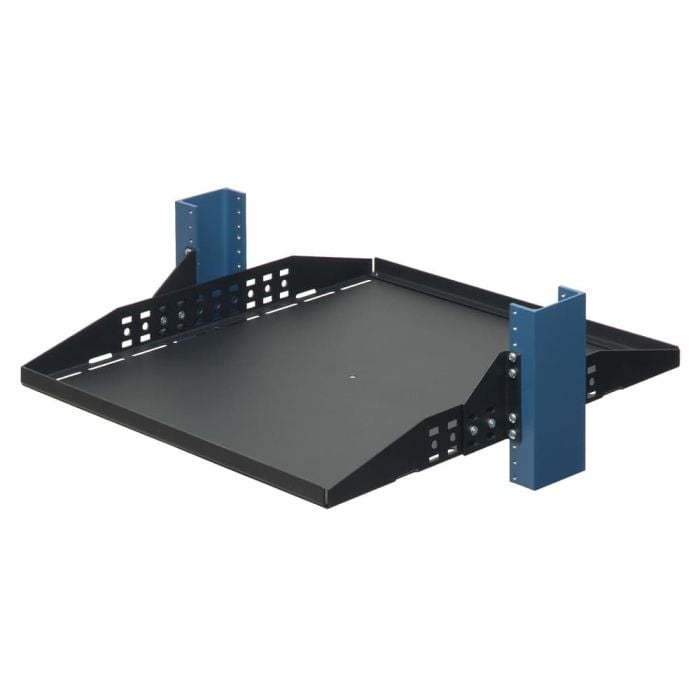

Center Mounted 2 Post Shelf Configurable to Your Needs

  • Shelf position configured along the mounting bracket
  • Equipment stops easily adjusted or removed
  • Vented or solid shelf options
  • Rack shelves can mount upside down

Compatible With 2 Post Racks

  • Weight Capacity: 150 lbs (68 kgs)
  • Shelf Depth: 20" (508 mm)
  • Compatible with 3" to 8" uprights
  • Compatible with round, threaded, or square rack holes
See "Additional Information" for Technical Specifications.
Rack Solutions Promise

Choose from vented and solid versions

Product Name SKU Price Qty
Configurable Relay Rack Shelf - 20" Vented 2USHL-020FULL-20V
Excl. VAT: €59.00 Incl. VAT: €69.03
Configurable Relay Rack Shelf - 20" Solid 2USHL-020FULL-20S
Excl. VAT: €59.00 Incl. VAT: €69.03
Description

Details

RackSolutions' center mounted configurable 2Post rack shelves can be adjusted to fit a wide variety of mounting needs. The shelf's mounting position can be adjusted along the attachment ears using the holes along the sides of the shelf. Slots for equipment straps are also found along the side of the rack, which can be used for securing equipment to the shelf. The flanges, or equipment stops, can be adjusted along the entire length of the shelf in 1" increments, or removed altogether. This 2 post rack shelf has a shelf depth of 20 inches (508 mm) and a weight capacity of 150 lbs (68 kgs), making it perfect for mounting a large variety of electronic equipment in a 2 post rack that might not ordinarily rack mountable. Our relay rack shelves are compatible with any Standard EIA 19" 2 post relay or telecommunications rack.

  • Fully Configurable
    Fully Configurable
    The shelf can be adjusted and configured to best suit your needs.
  • Features at a Glance
    Features at a Glance
    The 20” configurable relay rack shelf is designed to fit a variety of needs. The shelf’s position can be adjusted along the center mounting brackets and comes with equipment stops that can easily be moved or removed altogether.
Additional Information

Additional Information

Assembly Notes Phillips head screwdriver required
Equipment Depth The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement.
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area 20" x 17.375" (508 mm x 441 mm)
Finish Black, textured powder coat
Mounting Depth Range These relay rack shelves are cantilever mounted and will install into any relay rack as well as any 4Post server rack
Included Hardware 10-32 & 12-24 pan head screws
Weight Capacity 150 lbs (68 kgs)
Rack Units 2U
Tool-less/Standard Standard
Overall Installation Depth 20" (508 mm)
Material 16 GA Steel
RoHS Compliant Yes
Tech Notes The relay rack shelf can be installed in a 4Post server rack
Shelf depth is measured from front to rear excluding flanges
