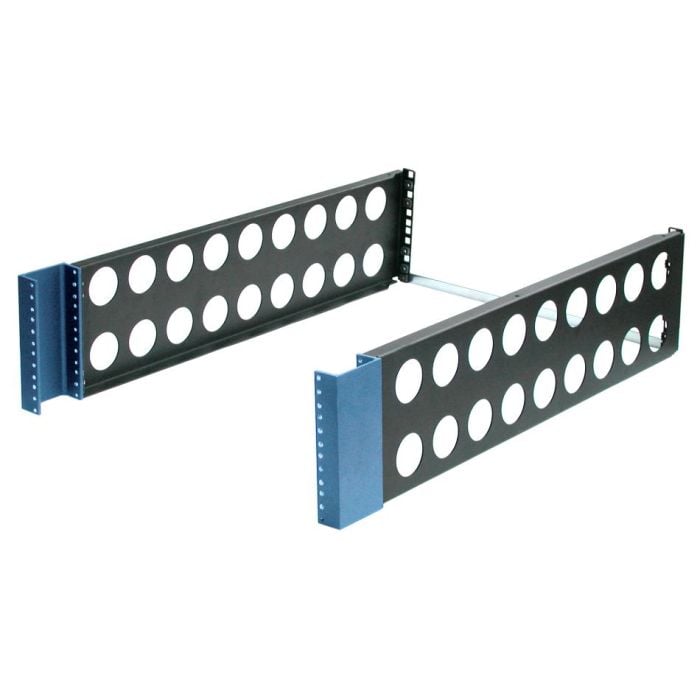

4U Flush Mount Conversion Bracket 2-Pack (26in Deep) with 2U Adapter Brackets 4-Pack (2 bends, 0.59in Deep)
Flush mount a server in a 2Post rack
- Mounts 1U - 4U servers
- Provides 4U of rack mount space
- Alternative to a center mount kit
- 2 Post server rack must be supported
Fits any 19", 2Post racks
- Universal square holes
- Compatible with most slide rails
- Dell, HP, IBM compatible
- Weight Capacity: 200 lbs.
NOTE: The server chassis + rail kit can not exceed 17.72" to be compatible.
The flush mount conversion kit from RackSolutions allows servers using 4Post rails to be mounted in 2Post, Telco racks. When front space is limited, this kit provides an alternative to the common center mount kits. The flush mount kit provides 4-point corner attachments to allow most OEM rails to be used. The flush mount kit provides 4U of 4Post rack mount space in a 2Post rack.
4UKIT-003 Installation
Flush mount conversion kit features
| Made In America | Yes | BABA Compliant | No | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Weight (lbs) | 10.800000 | Country of Manufacture | United States | U Height | 4U - 9U | Rack Type | 2 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Weight Capacity | 125 - 250 lbs | Bracket Depth | 26.00 in | Adaption Type | Rack Depth, Hole Type | Finish | Black, textured, powder coat |
|---|

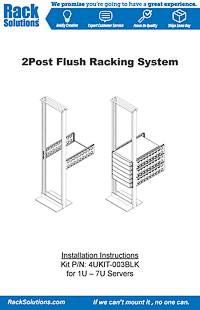

Installation Instructions
4U Flush Mount Conversion Bracket 2-Pack (26in Deep) with 2U Adapter Brackets 4-Pack (2 bends, 0.59in Deep) (4UKIT-003)
Open PDF
Dimensional Drawings
4U Flush Mount Conversion Bracket 2-Pack (26in Deep) with 2U Adapter Brackets 4-Pack (2 bends, 0.59in Deep) (4UKIT-003)
Open PDFMetal Components:
- (2) Flush Structural Brackets
- (4) "059" Adapter Brackets
- (1) 19" Rear Cross-Brace
Generic-Use Hardware:
- (8) 12-24 Cage Nuts
- (8) 12-24 Pan Head Screws
Structural Bracket Hardware:
- (8) 12-24 Bolts
059 Hardware:
- (8) 12-24 Pan Head Screws
Cross-Brace Hardware:
- (2) 12-24 Cage Nuts
- (2) 12-24 Pan Head Screws
