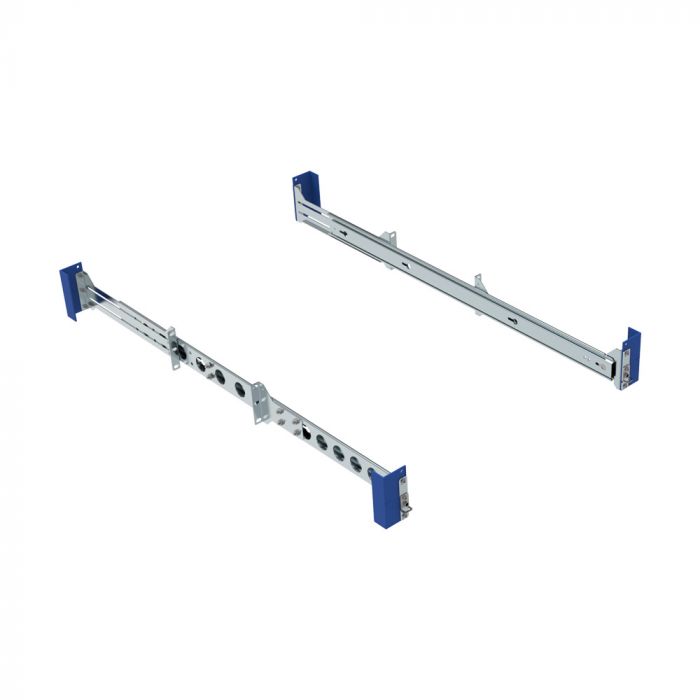

1U-2U HP Dry Sliding Rail Kits for Gen 10 Plus

As low as €156.78 €134.00
Out of stock

Fits any 2 Post or 4 Post rack

Can be converted to 2 Post or 4 Post with included parts

4-Post:

  • (122-7158) DL385 and DL380 Gen 10 Plus supports 18”-32” depth
  • (122-7159) DL325 and (122-7234) DL325 Gen 10 Plus supports 16”-36” depth

2 Post:

  • all models support 3”-6” uprights
  • Works with square, round and threaded holes

Alternative to OEM rails

  • High-quality dry slide that lasts longer than ball bearing kits
  • Slide rails extend equipment from the rack, offering easy access for maintenance
  • Made from 16 Ga Galvanized Steel, inner rails are Zinc plated
  • Perfect fit for you HP server

HP Compatibility

  • 122-7158: DL385 and DL380 Gen 10 Plus
  • 122-7159: DL325 Gen 10 Plus (Short Chassis)
  • 122-7234: DL325 Gen 10 Plus (Long Chassis)

Built to Fit Gen 10 Plus (DL385, DL380 and DL325)

With over 20 years in the server rack industry, RackSolutions is fully capable of creating rails that rival OEM products. All necessary screws and nuts are included to help achieve the perfect fit with any hole type. This product is specifically designed for compatible HP servers, ensuring a long-lasting and secure fit.

Comes Ready to Mount in 2-Post or 4-Post Racks

No conversion kit needed! This rail ships ready to mount in 2-post (telco or relay) racks and 4-post racks. Depth can be easily adjusted by shifting the rear brackets.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 122-7158
  • Kit Contents:
    • (2) Outer Rail (Left & Right)
    • (2) Inner Rail
    • (2) Rear Bracket (Left & Right)
  • Rear Bracket Hardware:
    • (8) 8-32 x .312 Flat Head Screw
    • (8) 8-32 Keps Nut
  • Mounting Hardware:
    • (12) 8-32 x .500 Pan Head Screw
    • (2) Retainer Plate (Left & Right)
    • (2) Mounting Plate
    • (2) Latch Plate (Left and Right)
  • Rack Mount 8x:
    • (8) 10-32 x .500 Pan Head Screw
    • (8) 12-24 x .500 Pan Head Screw
    • (8) 12-24 x Square Nut
    • (8) 12-24 x Cage Nut
  • Rack Mount 4x:
    • (4) 10-32 x .500 Pan Head Screw
    • (4) 12-24 x .500 Pan Head Screw
    • (4) 12-24 x Square Nut
    • (4) 12-24 x Cage Nut

122-7159
  • Kit Contents:
    • (2) Outer Rail (Left & Right)
    • (2) Inner Rail (Left & Right)
    • (2) Rear Bracket
  • Rear Bracket Hardware:
    • (4) 8-32 x .375 Flat Head Screw
    • (4) 8-32 Keps Nut
  • Mounting Hardware:
    • (8) 8-32 x .500 Pan Head Screw
    • (2) Retainer Plate (Left & Right)
    • (2) Mounting Plate
    • (2) Latch Plate (Left and Right)
  • Rack Mount 8x:
    • (8) 10-32 x .500 Pan Head Screw
    • (8) 12-24 x .500 Pan Head Screw
    • (8) 12-24 x Square Nut
    • (8) 12-24 x Cage Nut
122-7234
  • Kit Contents:
    • (2) Outer Rail (Left & Right)
    • (2) Inner Rail (Left & Right)
    • (2) Rear Bracket
  • Rear Bracket Hardware:
    • (4) 8-32 x .312 Flat Head Screw
    • (4) 8-32 Keps Nut
  • Rail Attachment Hardware:
    • (6) 6-32 x .188 Button Head Screw
    • Mounting Hardware:
    • (8) 8-32 x .500 Pan Head Screw
    • (2) Retainer Plate
    • (2) Latch Plate (Left & Right)
    • (2) Mounting Plate
  • Rear Mount 8x:
    • (8) 10-32 x .500 Pan Head Screw
    • (8) 12-24 x .500 Pan Head Screw
    • (8) 12-24 x Square Nut
    • (8) 12-24 x Cage Nut
Compatibility HP
HP Server Compatibility DL325 G10 Plus (Long Chassis), DL325 G10 Plus (Short Chassis), DL380 G10 Plus, DL385 G10 Plus
Synnex Part Number 122-7158 - 6302398
122-7234 - 6302397
Fixed/Sliding Sliding
Finish Outer Rails: 16 Ga Galvanized Steel
Inner Rails: Zinc Plated
Hole Type Square, Round, and Threaded hole
