100-C Fixed Wall Mount for Dell Wyse

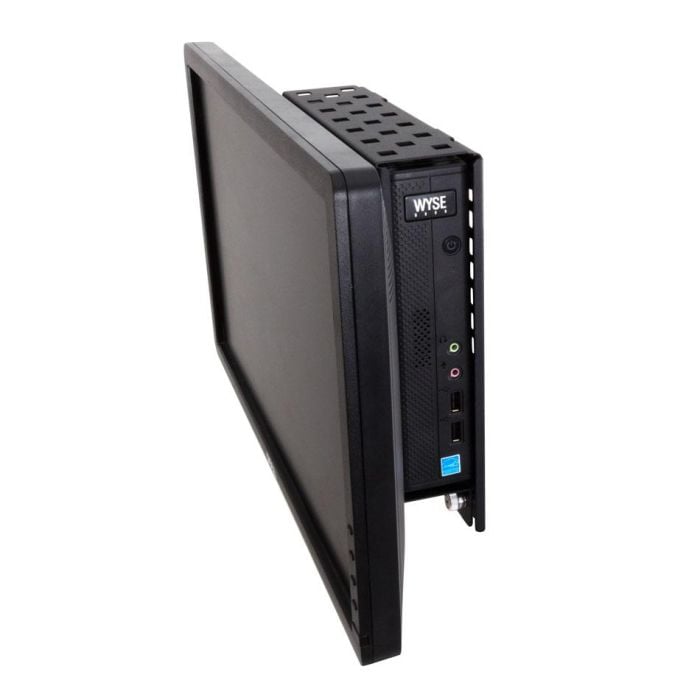

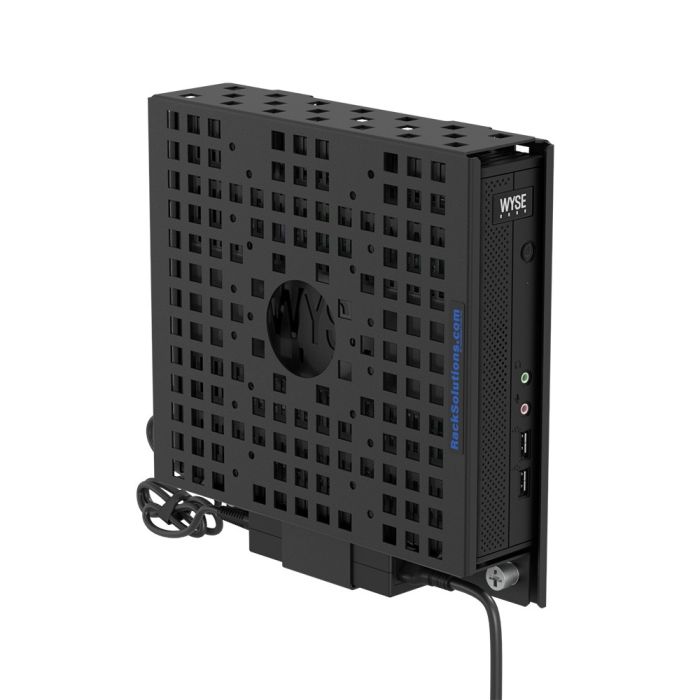

Wall mounts a Dell Wyse 7000 Series
- Compatible with most Wyse Z Class Thin Client PCs
- Uses 75 mm and 100 mm VESA monitor hole pattern
- Raised lances for securing zip ties
- All required mounting hardware is included
- PC, power supply, & monitor not included
Customize to your needs
- Compatible with almost any LCD monitor
- Pair with a keyboard wall mount for a fully wall mounted solution
- VESA mounts on both sides allow PC and monitor to be mounted on an adjustable swivel arm
The RackSolutions Dell Wyse 7000 Series Wall Mount is designed to create a compact work space by mounting a Dell Wyse Thin Client PC to a wall. With VESA hole patterns on both sides, the wall mount is dual mounting, allowing it to mount your Z Class thin client to the back of a monitor, as well as to a wall or even a monitor arm. The wall mount is designed to be compatible with most flat panel displays, and serves as an alternative to the Wyse Dual Mounting Bracket Kit. The bracket also includes a place for the power brick to be mounted with the PC. All required mounting hardware is included with the Dell Wyse Wall Mount. Raised lances are integrated in the enclosure for securing cables and the power brick to the enclosure. PC, A/C adapter, & monitor are not included.
| VESA Standard | Hole Pattern | Monitor Weight | Screen Size |
| FDMI MIS-C | 75 x 35 mm | ≤ 10 lbs / ≤ 4.5 kg | 8" to 11.9" |
| FDMI MIS-D | 75 x 75 or 100 x 100 mm | ≤ 30.8 lbs / ≤ 14 kg | 12" to 23.9" |
| FDMI MIS-E | 200 x 100 mm | ≤ 50 lbs / ≤ 23.7 kg | 24" to 30.9" |
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.
| Dell Part Number | 114-4658 - A8500541 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
|---|---|
| Synnex Part Number | 114-4658 - 4614616 |
| Ingram Part Number | 114-4658 - 1P2985 |
| Compatibility | Dell |
| Finish | Black, powder coat |
| Amazon ASIN | B01K1JJFQ4 |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| Included Hardware |
Wall Mount Hardware Package: |
Download Dell Wall Mount Installation Instructions
Download Dell Wall Mount Dimensional Drawings
Download Dell Wall Mount Data Sheet
