Adjustable Arm Monitor Wall and Desk Mount

As low as €0.00 €0.00
Out of stock
Qty:

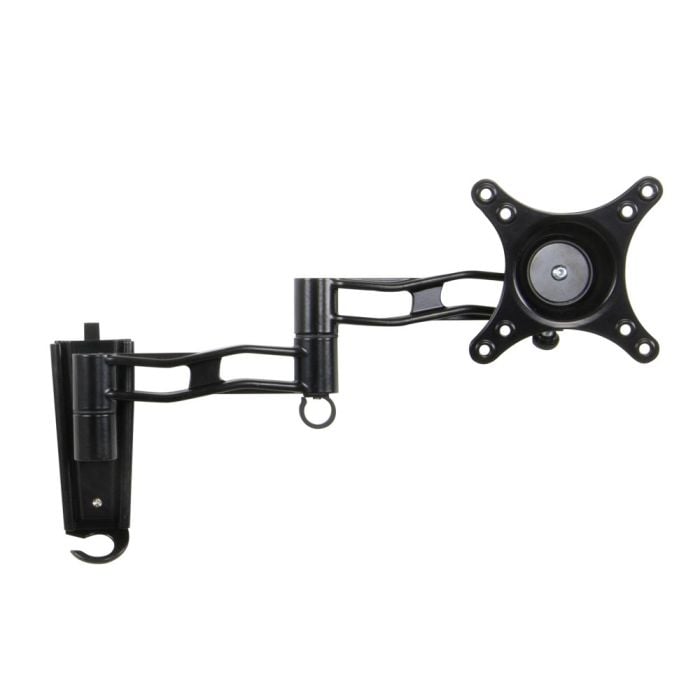

Mount your monitor to an adjustable arm

  • Full arm length extension: 14 inches
  • 75 - 100 mm VESA hole pattern
  • 180° swivel and 360° rotation of monitor

Mount your monitor to a desk or wall

  • Built-in hooks for cable management
  • Bubble level on mount
  • Mounting hardware included

The Adjustable Arm Monitor Wall & Desk Mounts allows you to easily maneuver a monitor to any viewpoint. The 1st half extension is 6 inches and the 2nd half is 8 inches. The mounts tilt vertically with ±15° tilting capability. It is compatible with 13"-27" computer monitors from leading manufacturers like Dell and HP. Our mounts are designed for monitors with 75-100mm VESA hole patterns and support 20 lbs weight capacity.


For installation, hardware is included to attach the wall mount to a wall or flat surface. Hardware includes a VESA monitor bracket, 2 drywall anchors, and 2 screws. Spacers and screws included to attach your monitor to the mount. The desk mount clamps to the bottom of the desk.

Adjustable Arm Monitor Wall MountAdjustable Arm Monitor Wall Mount

180-5209 Installation


VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications GuidesVESA Specifications Guides

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.

More Information
Compatibility 75 X 75 and 100 X 100mm VESA hole patterns are compatible with there arm mounts.
Weight Capacity 20 lbs
Dimensions Distance between the clamp and the bottom of the mount is 2.5" (180-5211)
Finish Black
Amazon ASIN 180-5209 = B01EXNT6IG
180-5211 = B01EXOHIGW
Tech Notes 180-5211 The desktop pole has a height of 16"
RoHS Compliant Yes
TAA Compliant No
Included Hardware All mounting hardware needed to mount the wall monitor mount included.
Screwdriver needed
2 drywall anchors
