Dell PowerEdge R510 Rack Rails

Availability: In stock

Dell PowerEdge R510 Rack Rails

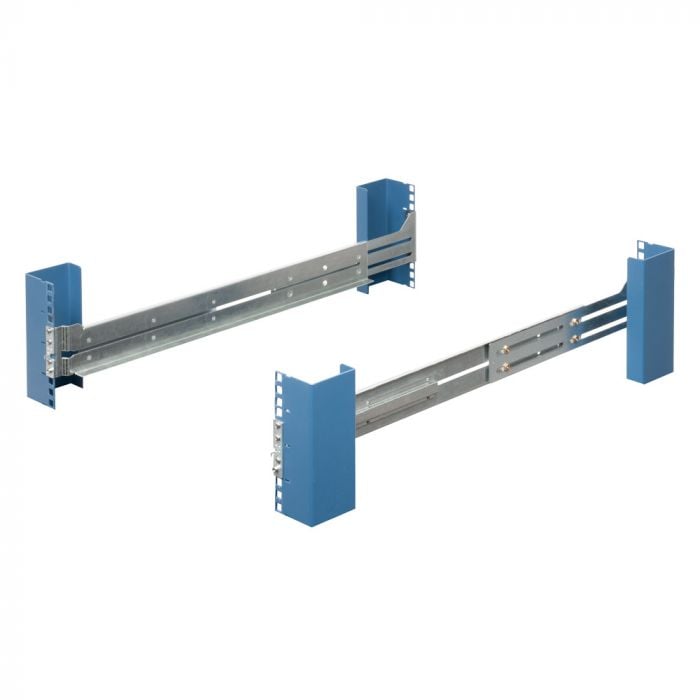

  • Front view - Dell R510 Rack Rails
    Front view - Dell R510 Rack Rails
    close
  • Front view with server - Dell R510 Rack Rails
    Front view with server - Dell R510 Rack Rails
    close
  • Rear view - Dell R510 Rack Rails
    Rear view - Dell R510 Rack Rails
    close
  • Side view - Dell R510 Rack Rails
    Side view - Dell R510 Rack Rails
    close
  • Front view - P/N: 109-1872 - 2Post center mount - Dell R510 Rack Rails
    Front view - P/N: 109-1872 - 2Post center mount - Dell R510 Rack Rails
    close
  • Front view with server P/N: 109-1872 - 2Post center mount - Dell R510 Rack Rails
    Front view with server P/N: 109-1872 - 2Post center mount - Dell R510 Rack Rails
    close
  • Front view - P/N: 109-1872 - 2Post flush mount - Dell R510 Rack Rails
    Front view - P/N: 109-1872 - 2Post flush mount - Dell R510 Rack Rails
    close

Fits any 4 Post rack

  • Square, round, threaded holes
  • Supports L, C, Z, and ? rack upright shapes
  • Compatible with 4 hard drive and 8 hard drive chassis only
  • Dell R510 chassis with 12 hard drives require 2UKIT-109 rails

4Post Mounting

  • 4Post Deep Mounting depth of 11 - 34" (279 - 864 mm) : Requires the P/N:109-1837

2Post Mounting

  • 2Post Center Mount or Flush Mount: Requires the P/N:109-1872
  • Dell R510 chassis with 12 hard drives require 2UKIT-009 rails

Dell Compatible Products

  • Dell PowerEdge R510
  • Dell PowerEdge R520
  • Dell PowerEdge R530
  • Dell PowerEdge R720 XD
  • Dell PowerEdge R720
  • Dell PowerEdge R730 XD
  • Dell PowerEdge R730
  • Dell PowerEdge R7910
RackSolutions is a Dell Technology Partner
Rack Solutions Promise
Product Name SKU Price Qty
Dell R510 Rack Rails (11 - 34" Mounting Depth) 109-1837
Excl. VAT: €84.00 Incl. VAT: €98.28
Dell R510 Rack Rails - 2Post Flush or Center Mount 109-1872
Excl. VAT: €135.00 Incl. VAT: €157.95

Out of stock

Description

Details

Features

The Dell PE R510 rail kit is a replacement for the Dell rail kit that is provided with the R510 server. The R510 rails work with 4Post server racks. The Dell R510 rail kit is not a ball-bearing rail kit. The Dell R510 rail kit is a fixed rack mounting device.

Additional Information

Additional Information

Compatibility Dell PowerEdge R510
Dell PowerEdge R520
Dell PowerEdge R530
Dell PowerEdge R720 XD
Dell PowerEdge R720
Dell PowerEdge R730 XD
Dell PowerEdge R730
Dell PowerEdge R7910
Dell Part Number Dell PowerEdge R510 - A4644380
Rail OEM Dell
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware
Kit Contents:
(1) Right Rail Assembly
(1) Left Rail Assembly
Mounting Hardware:
(2) Hook Plates (Left & Right)
(6) 8-32 x .500 Pan Head
(8) 10-32 x .500 Pan Head
(8) 12-24 x .500 Pan Head
(8) 2-24 Cage Nut
Assembly Notes Phillips head screwdriver required
Rail Type Fixed
Mounting Depth Range P/N: 109-1685
Pre-set at 26 - 29.35" (660 - 745 mm)
30.1 - 32.5" (764 - 825 mm) range may be attained with a hardware adjustment

P/N: 109-1837
Pre-set at 26.2 - 30.3" (665 - 769 mm)
11 - 34" (279 - 769 mm) range may be attained with a hardware adjustment
Finish Galvanized
Rack Units 2U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
