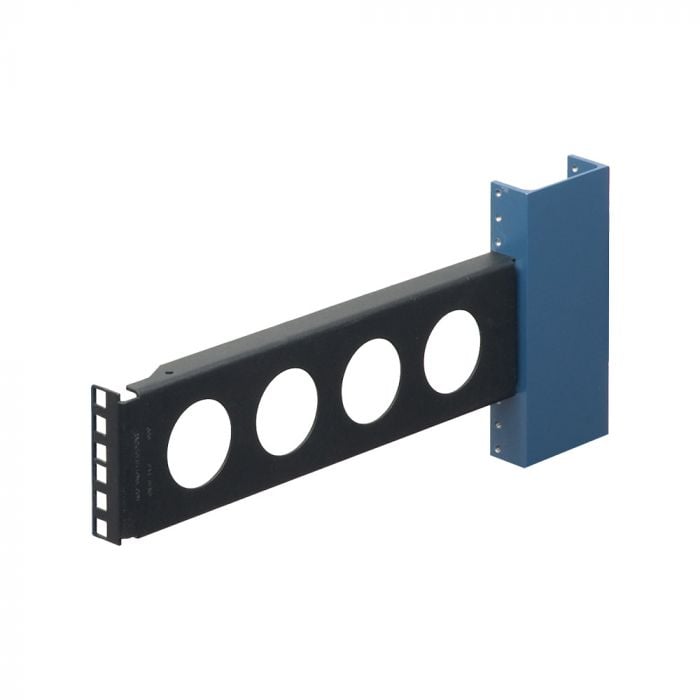

2Post Conversion Bracket
Mount 4Post equipment in 2Post racks
- Converts space in a 2Post Rack to allow 4Post equipment
- Convert only the space you need
- Couple several brackets together for contiguous space
- 3" and 6" depths available
- High quality solid steel construction
- Sold individually (one bracket per pack)
- 4 brackets required for mounting a server with rails
Compatible with any 2Post rack
- Works with standard EIA 19" racks or 23" telecommunications racks
- Mounts using square, round, or threaded holes
- 50lb weight capacity per U space
(opens in a new tab)
NOTE: Hardware not included. Rackmount hardware can be purchased here.

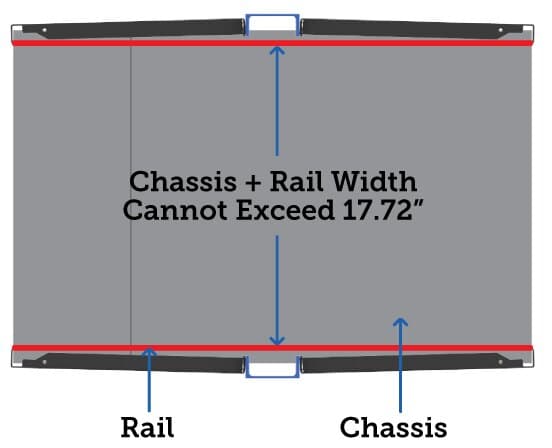

Compatible with most servers

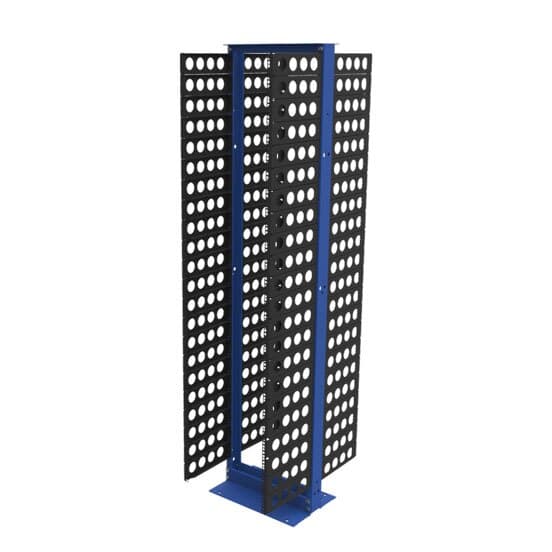

Create a 4 Post cabinet on a 2 Post relay rack
If the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.
RackSolutions 2Post conversion brackets one key issue with 2Post racks, mounting 4Post equipment. Rather than purchasing a 4Post rack for only a few pieces of equipment, conversion brackets allow 4Post equipment such as servers using 4Post rail kits to be mounted in a 2Post rack. The 2Post conversion brackets essentially convert a small amount of space in your 2Post rack into a 4Post rack. Coupled together, the brackets can convert as much of the 2Post rack as needed. The brackets are sold in individual packs, so 4 brackets must be purchased to mount one piece of 4Post equipment in the rack.
| BABA Compliant | No |
|---|---|
| RoHS Compliant | No |
| TAA Compliant | No |
| UL Compliant | No |
| ETL Compliant | No |
| Country of Manufacture | United States |
| Dell Part Number | 2UBRK-000C: AB064953 |
| Ingram Part Number | 2UBRK-000C - NE9990 2UBRK-000C-6 - 3FM343 |
| Tech Notes |
|
