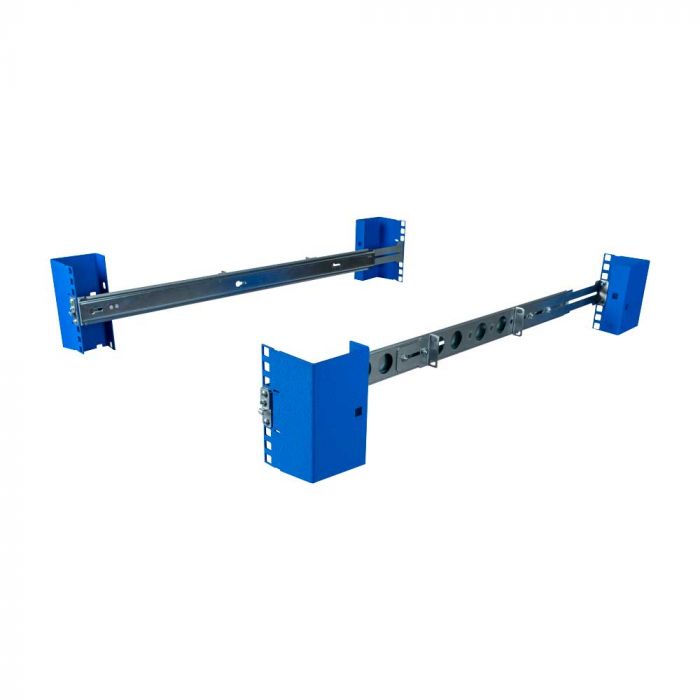

1U Raven 165-A Dry Slide Rail for HP

As low as €156.78 €134.00
In stock

Designed for shallow depth racks

  • Compatible with HP ProLiant DL 20 Gen10
  • Inner rails are shortened so they don’t stick out of shallow depth racks
  • Square, threaded, or through hole mounting
  • Dry slide rails provide greater longevity
  • Compatible with EIA 19” standard racks

Mount in a 4 or 2 post rack with any hole type

  • Center mount on 2 post racks
  • Supports L, C, and ? rack upright shapes
  • 122-8420 Mounting depth:
    - 4 Post: 16.75" to 29.50" (425mm - 749mm)
    - 2 Post: 3” - 6” (76.2mm - 152.4mm)
  • 122-7776 Mounting depth:
    - 4 Post: 14.56" - 30.26" (370mm - 769mm)
    - 2 Post: 3” - 6” (76.2mm - 152.4mm)

Compatible with these HP servers:

By minimizing the length of the inner rail, this HP server rail kit is designed to take advantage of short HP servers. Full sized slide rails can protrude past the rear uprights of shallow racks, which makes it difficult to close the rear door or install accessories.This rail kit allows the HP ProLiant DL20 Gen 10 to be installed into any type of server rack and replaces the HP rail kit that would normally come with the server. Depending on your needs, you can select between our standard depth or short depth rail kit.

These rails allow the DL20 G10 to be installed into a typical 4 Post and 2 Post server racks. The inner rail of this kit is shortened so that users will also be able to take advantage of smaller racks such as our Transport Case Rack (opens in a new tab).

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Compatibility HP
HP Server Compatibility DL20 G9, DL20 G10, DL60 G9, DL120 G9, DL160 G9, DL160 G10, DL325 G10
Synnex Part Number 122-7776 - 6224806
Fixed/Sliding Sliding
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack.
Finish Zinc Plated
Hole Type Compatible with round, square and threaded racks.
