2U 2Post Cantilever Rack Shelf 13in Depth
Great for Mounting IT & Networking Equipment
- Solid and vented options available
- Choose from equipment stops (flanges) facing up or down
- Slots for equipment straps along the side of the shelf
- Can be mounted upside down
Compatible With 2 Post and 4 Post Racks
- Weight Capacity: 60 lbs (27.2 kgs)
- Shelf Depth: 13" (330.2 mm)
- Compatible with round, threaded, or square rack holes
Want something more versatile? Check out our configurable version.
See "Additional Information" for Technical Specifications.

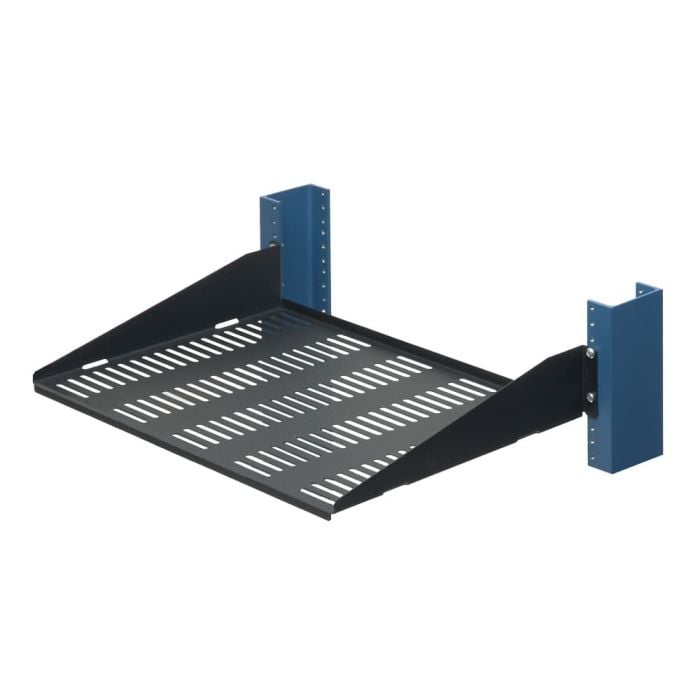

RackSolutions' fixed 2U Cantilever Rack Shelf has a depth of 13 inches, (330 mm) and a weight capacity of 60 lbs (27.2 kgs) making it perfect for rack mounting smaller networking, AV, and other equipment that might not ordinarily be rack-mountable. Our 2 Post rack shelves are compatible with most standard EIA 19" 2Post relay and telco racks and 4Post racks and cabinets. These fixed rack shelves are cantilever, meaning they mount to the rack at only one end of the shelf. Both vented and solid shelf options are available depending on your airflow needs. The shelf features flanges that can face either up or down meaning that the shelf can be mounted upside down to fit a wider variety of needs for different types of electronic equipment. Equipment strap slots found along the side of the shelf allow straps to be looped through the shelf to secure equipment to the shelf.
2U Cantilever 2 Post Rack Shelf Features
RackSolutions 2U Cantilever 2 Post Rack Shelf is available vented or solid with flanges up or down.
|Dell Part Number||2USHL-022HALF-13US - A0539432
2USHL-022HALF-13UV - A0754708
2USHL-022HALF-13DV - A0445191
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||2USHL-022HALF-13US - 6356022 2USHL-022HALF-13DS - 6223599 2USHL-022HALF-13UV - 4614649 2USHL-022HALF-13DV - 4614779|
|Ingram Part Number||2USHL-022HALF-13US - E93440 2USHL-022HALF-13DS - E93442 2USHL-022HALF-13UV - E93439 2USHL-022HALF-13DV - E93441|
|Assembly Notes||Phillips head screwdriver required|
|Equipment Depth||The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges are used to increase the load-bearing capacity of the rack mount shelf or used to prevent equipment movement.|
|Shelf Type||Solid , Vented|
|Rack Type||2 Post|
|Shelf Surface Area||Flanges Up: 19.89" x 17.5" (505 x 445 mm) Flanges Down: 20" x 17.5" (508 x 445 mm)|
|Finish||Black textured powder coat|
|Mounting Depth Range||These relay rack shelves are cantilever mounted and will install into any relay rack, as well as any 4Post server rack|
|Included Hardware||10-32 & 12-24 pan head screws|
|Overall Installation Depth||13" (330 mm)|
|Material||16 GA Steel|
|Amazon ASIN||2USHL-022HALF-13UV = B00UVK9YC4 2USHL-022HALF-13DV = B016ZSDM82 2USHL-022HALF-13US = B0006I5GYQ 2USHL-022HALF-13DS = B0006I5H0E|
|Tech Notes||These relay rack shelves can be installed in a 4Post server rack.
Shelf depth is measured from front to rear excluding flanges.
