2U 2Post Vented Adjustable Cantilever Shelf 13in Depth

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
As low as €52.65 €45.00
In stock

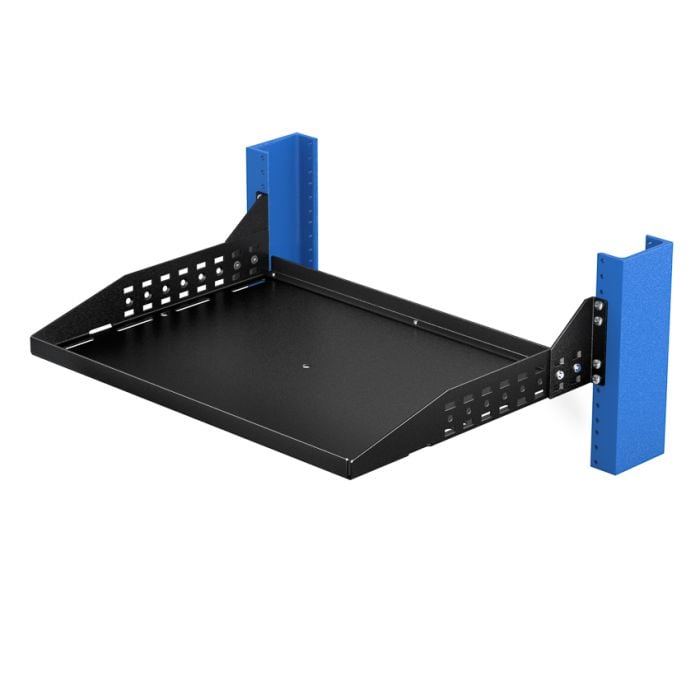

Solid
Vented

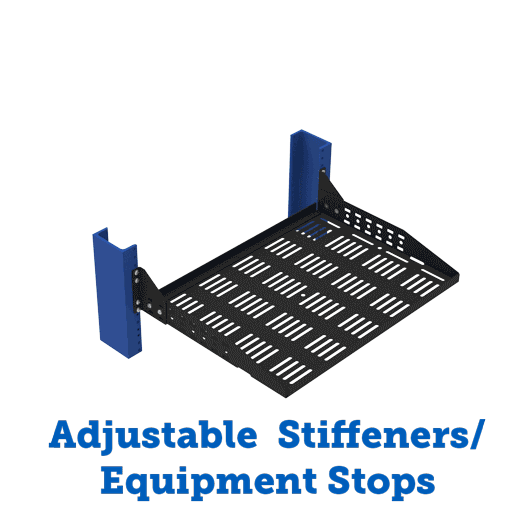

2 Post Shelf Adjustable to Your Needs

  • Shelf position adjusted along the mounting bracket
  • Equipment stops easily adjusted or removed
  • Vented or solid shelf options
  • Can be mounted upside down

Compatible With 2 Post Racks

  • Weight Capacity: 150 lbs (68 kgs)
  • Shelf Depth: 13" (330 mm)
  • Compatible with 3" to 8" uprights
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

RackSolutions 13" Configurable 2 Post Rack Shelf is designed to be able to be configured to your needs. With a depth of 13 inches (330 mm) and a weight capacity of 150 lbs (68 kgs), the shelf can support a wide variety of networking, AV, and telecommunications equipment. The shelf's position can be adjusted along the mounting mounting bracket in 1" increments. Equipment stops, also called flanges, can be also be re-positioned on the shelf or removed entirely if desired. The shelf mounts the rack cantilever, meaning that it attaches to the rack at only one side of the shelf. Slots for equipment straps along the side of the shelf can be used for strapping down and securing equipment mounted on the shelf. Our 2Post relay rack shelves are designed to fit standard EIA 19" (opens in a new tab) racks.

Adjustable Shelf Animation (desktop image)Adjustable Shelf Animation (mobile image)

Shelf Adjustments

RackSolutions 2U Configurable Cantilever 2 Post Rack Shelf is designed to be able to be configured to your needs

Shelf Features (desktop image)Shelf Features (mobile image)

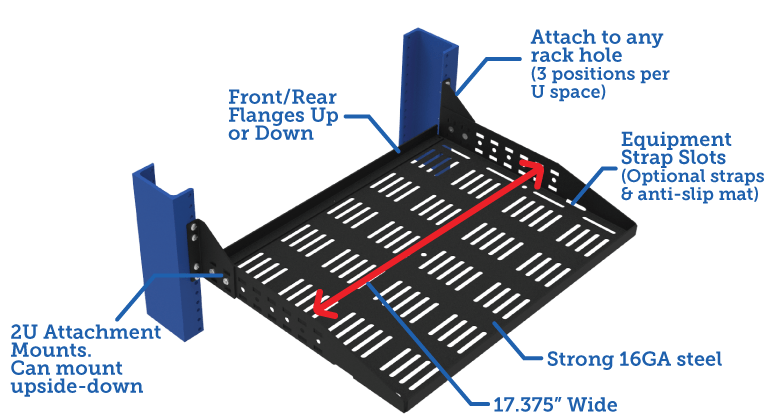

Shelf Features

RackSolutions 2Post relay rack shelves are designed to fit standard EIA 19" racks.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 2USHL-020HALF-13V | 2USHL-020HALF-13S
  • Assembly Hardware:
  • (1) Shelf
  • (1) Attachment Flange Right
  • (1) Attachment Flange Left
  • (2) Equipment Stop/Stiffener Flange
  • (4) 10-32 Pan Head Screws
  • (4) 12-24 Pan Head Screws
  • (6) 8-32 Flat Head Screws
  • (4) 10-32 Flat Head Screws
Synnex Part Number 2USHL-020HALF-13S - 5068208
2USHL-020HALF-13V - 5068199
Ingram Part Number 2USHL-020HALF-13S - E93432
2USHL-020HALF-13V - E93431
Fixed/Sliding Fixed
Finish Black, textured powder coat
Shelf Depth 7"-18" (178mm-457mm)
Material 16 GA Steel
Tech Notes These 2Post rack shelves can be installed in a 4Post server rack
