Wall Mount Rack

Availability: In stock

Made in America

Install equipment anywhere

  • When there's no room for a full size rack
  • Perfect solution for small office or home office
  • Mounts flush against any flat surface
  • Fits in data closets
  • Great solution for remote sites
  • Equipment's mounting rails are required
  • Includes 1 pair of brackets for mounting additional,
    network equipment. Extra brackets sold separately

Equipment compatibility

  • Compatible with all 19" rackmount equipment
  • 35 - 105 lb load capacity

Alternate wall mount racks

Product Name SKU Price Qty
1U Wallmount Rack 1URACK-110
Excl. VAT: €122.00 Incl. VAT: €142.74
2U Wallmount Rack 2URACK-110
Excl. VAT: €142.00 Incl. VAT: €166.14
Extra Brackets (pair) for 1U Wall Mount 1URACK-110-REAR-BRKTS
Excl. VAT: €14.00 Incl. VAT: €16.38

Out of stock

Extra Brackets (pair) for 2U Wall Mount 2URACK-110-REAR-BRKTS
Excl. VAT: €14.00 Incl. VAT: €16.38

Out of stock

Description

Details

Features

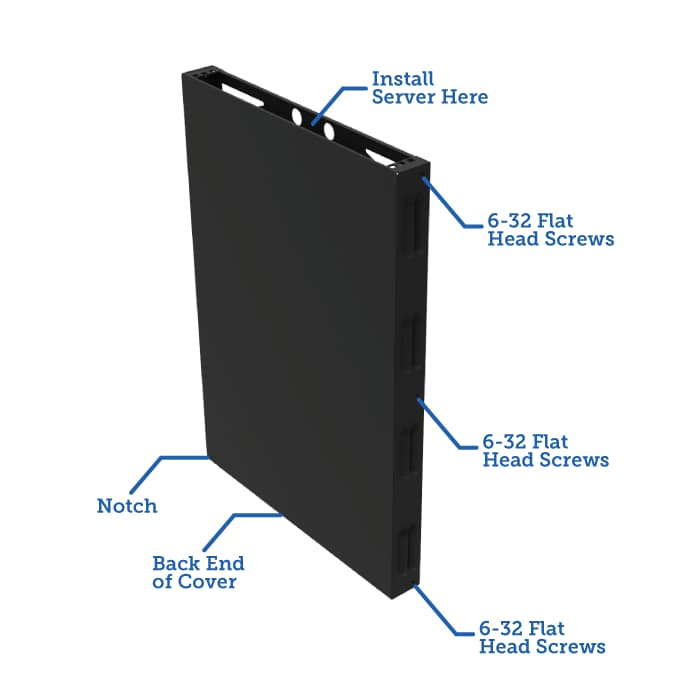

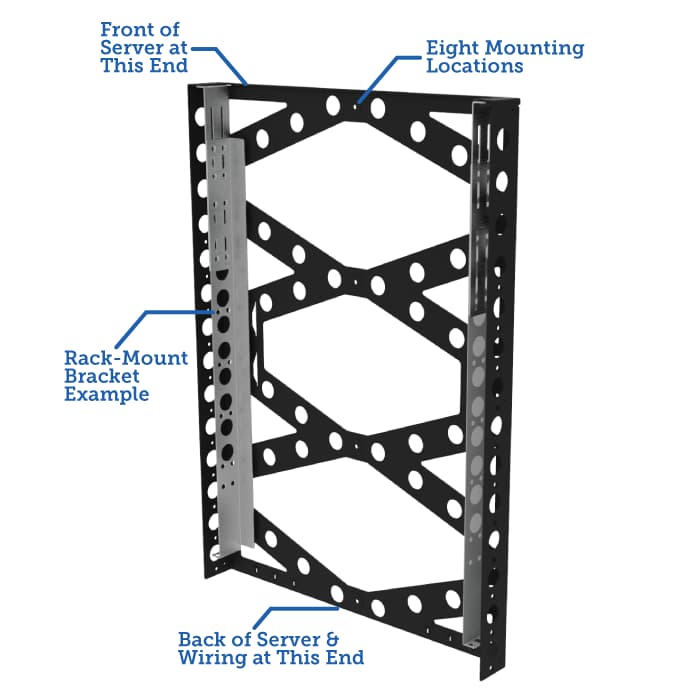

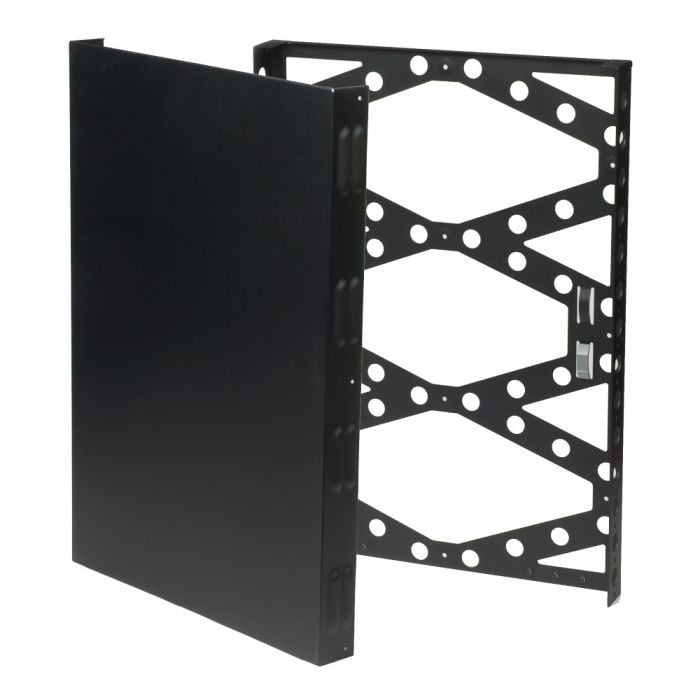

The wall mount rack provides 1U or 2U of usable rack space anywhere it's needed. The wall mount rack can be used to mount equipment horizontally or vertically. It allows 1U or 2U tall, 19" rack mount equipment to be mounted to a wall, under a desk or stacked on a desk or table.The wallmount rack is compatible with most OEM slide rails: Dell, HP, IBM, Apple, Sun, Intel, Cisco, Juniper and 3Com. This rack is compatible with round hole, threaded hole and square hole equipment and slides. The wall mount server rack supports equipment up to 30" deep, including slide rails and cable management. The cover protects the unit while allowing for proper ventilation. Airflow and cooling are handled with front and rear airspace openings above and below the server and louvers on each side. Wall mount hardware is included. Extra 1U and 2U brackets are sold separately for mounting additional, network equipment. See 1URACK-110-REAR-BRKTS and 2URACK-110-REAR-BRKTS listed above.

Additional Information

Additional Information

Rack Type Enclosed, Wall Mount
Rack Internal Width EIA 19" Standard Rack
Tech Notes 1) Wall mounting in any orientation (hardware and screws provided)
2) Under desk mounting (may require additional hardware depending on the desk design)
3) Stack-able on desktops
Eight anchors included in kit
Total shear strength, 540 lbs (vertical)
Total pullout strength, 160 lbs (horizontal)
Included Hardware All required hardware is included
Finish Black, textured powder coat
Assembly Notes Phillips head screwdriver required
Rack Units 1U or 2U
RoHS Compliant Yes
Dimensions 1U: 2.3" (58 mm) height x 28.5" (725 mm) depth x 20" (508 mm) width
2U: 4.1" (104 mm) height x 28.5" (725 mm) depth x 20" (508 mm) width
