Secure Vertical 5U Wall Mount Rack

As low as €0.00 €0.00
In stock

5U of Secure Rackable Space

  • Top cover and rack door are lockable
  • Vented bottom
  • Vented locking hinged cabinet door with latch
  • 12 punch outs for routing cables
  • Mount (2) 120mm fans to vented bottom for efficient airflow

Mounts 19" equipment

  • 23”-30” adjustable depth
  • 2U of extra rack space designed for patch panels
  • Adjustable vertical mounting bracket
  • Load capacity: 150 lbs
  • Threaded holes for M6 or 12-24 screws

See "Additional Information" for Tech Specs.

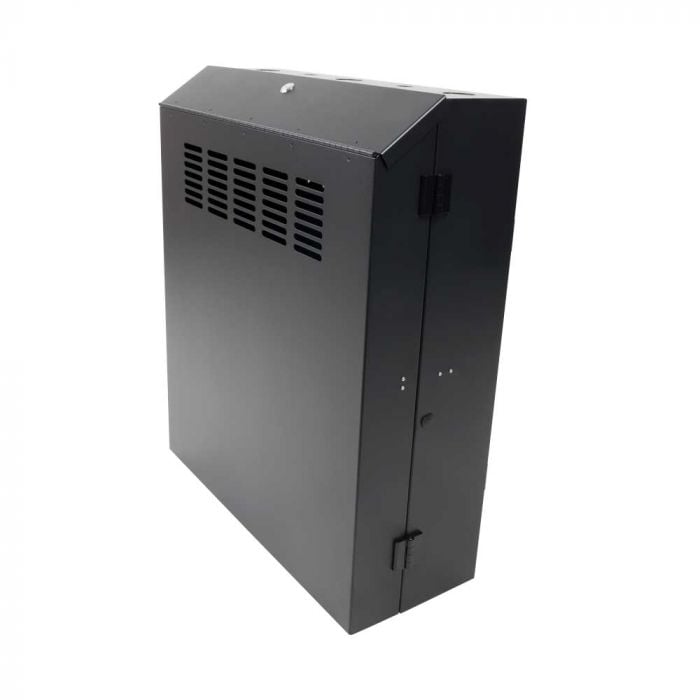

Our secure 5U vertical wall mount rack is a perfect place to secure small amounts of rack equipment, extending less than 10 inches from the wall and saving space. Rack mount equipment such as servers, patch panels, UPS systems, and network switches are compatible with this vertical wall mount rack. The vertical rack features a vented hinged door and hinged top panel, both featuring lockable security and accessibility to equipment. The tab on the locking hinged cabinet door must be pressed down to avoid damaging the equipment.

There is an additional 2U mounting bracket, great for mounting patch panels up to 2.5 inches deep. The vented bottom of the server rack allows x2 standard 120mm fans to be mounted. The vertical wall solution is available in 23" and 30" vertical mount depths. The maximum weight capacity is up to 150 lbs of 19" equipment. The 5U vertical wall mount rack enclosure is PCI DSS compliant and ships fully assembled.

Security and Accessibility:

The top panel cover and front rack door are both separately lockable for when you need varying security access.

Rack Mount Equipment Without Losing Floor Space:

Inside the top of the rack is a patch panel mounting bracket with the horizontal mounting rails below. Air vents are located at the bottom of the rack ready for 120mm fans to be installed.

Security and Accessibility Security and Accessibility

Security and Accessibility

Top patch panel cover and front rack door provide lockable security and easy accessibility.
Saving Floor SpaceSaving Floor Space

Saving Floor Space

Inside the top of the rack is a patch mounting bracket with horizontal mounting rails below. Air vents are located at the bottom of the rack and allow for 1200mm fans to be installed.
Cable Access and Management Cable Access and Management

Cable Access and Management

12 total punch outs for routing cables. Circular punch outs located on the top (5) and bottom (5), rectangular punch outs (2) located on the back of the rack.


Vented Locking Hinged Cabinet Door With LatchVented Locking Hinged Cabinet Door With Latch

Vented Locking Hinged Cabinet Door With Latch

Tab on the locking hinged door must be pressed down to avoid equipment damage.

Adjustable vertical mounting bracketAdjustable vertical mounting bracket

Adjustable Vertical Mounting Bracket

Adjustable mounting depth up to 23” and is compatible with M6/12-24 screws.

Optional Patch Panel Optional Patch Panel

Optional Patch Panel

Additional 2U slide-out mounting bracket to secure patch panels for easy cable access.

More Information
Rack Type Enclosed, Wall Mount
Hole Type 12-24 Threaded mounting holes
Rack Internal Width EIA 19" Standard Rack
Rack Mount Depth 180-5281-23"
180-5282-30"
Dell Part Number 180-5282 - AA503081
Included Hardware Included
Rack Height ( U Height) 5U
Finish Black
Rack Doors Vented locking hinged cabinet door with latch
Rack Ventilation Vented bottom
Amazon ASIN 180-5281 = B07L41952Z
180-5282 = B01N6ADQ16
RoHS Compliant Yes
TAA Compliant Yes
