Server Rack Cabinet

As low as €1,131.00 €975.00
Out of stock

This Product Ships Freight

42U/48U of rackable space

  • Overall rack depth 1070 mm or 1200 mm
  • 1070 mm rack: Adjustable mounting depth up to 890 mm
  • 1200 mm rack: Adjustable mounting depth up to 1020 mm

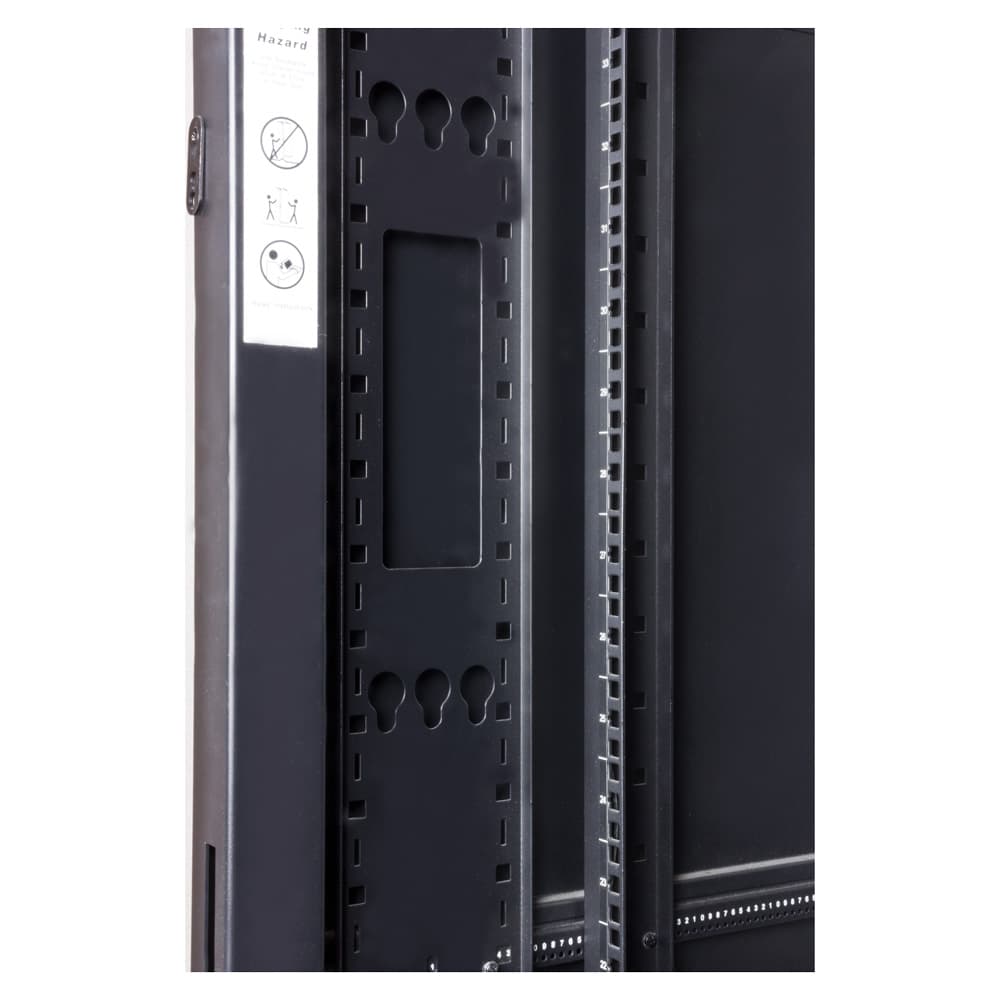

  • Universal square holes
  • Dell, HP, IBM compatible

Designed for Data Centers

  • Doors and sides are removable, lockable
  • 3000 lbs. (1360 kgs) capacity
  • Casters, leveling feet included
  • Cable pass-throughs in top & bottom of rack
  • (2) Vertical cable management bars included

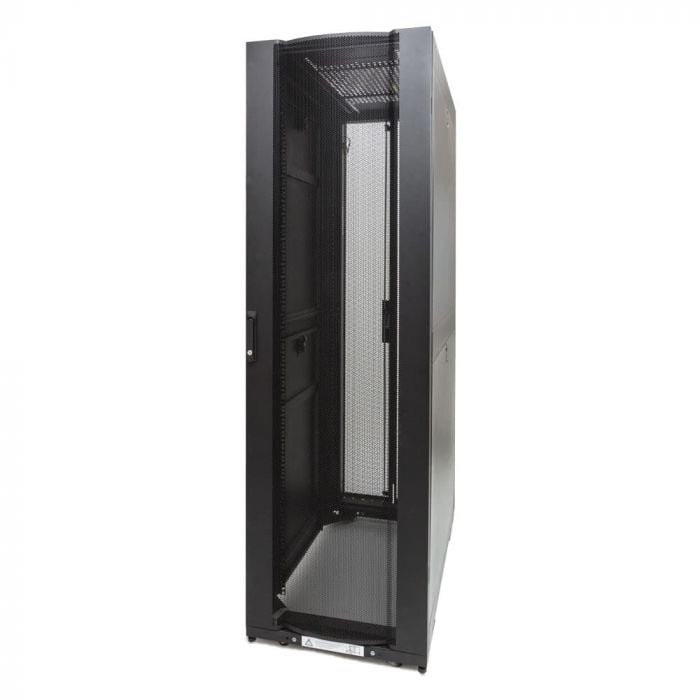

The RackSolutions Server Rack Cabinets are compatible with Dell, HP and IBM servers and have a footprint that is the same size as a European data center tile (600 mm). The 800 mm wide rack is also available for a network cabinet. Our cabinets are the EIA standard 19" server rack. The sizes are available in 24U, 42u and 48U to get the most height out of your data center space. All of these rack options come standard with 2 vertical cable management bars that are the same height of the rack.

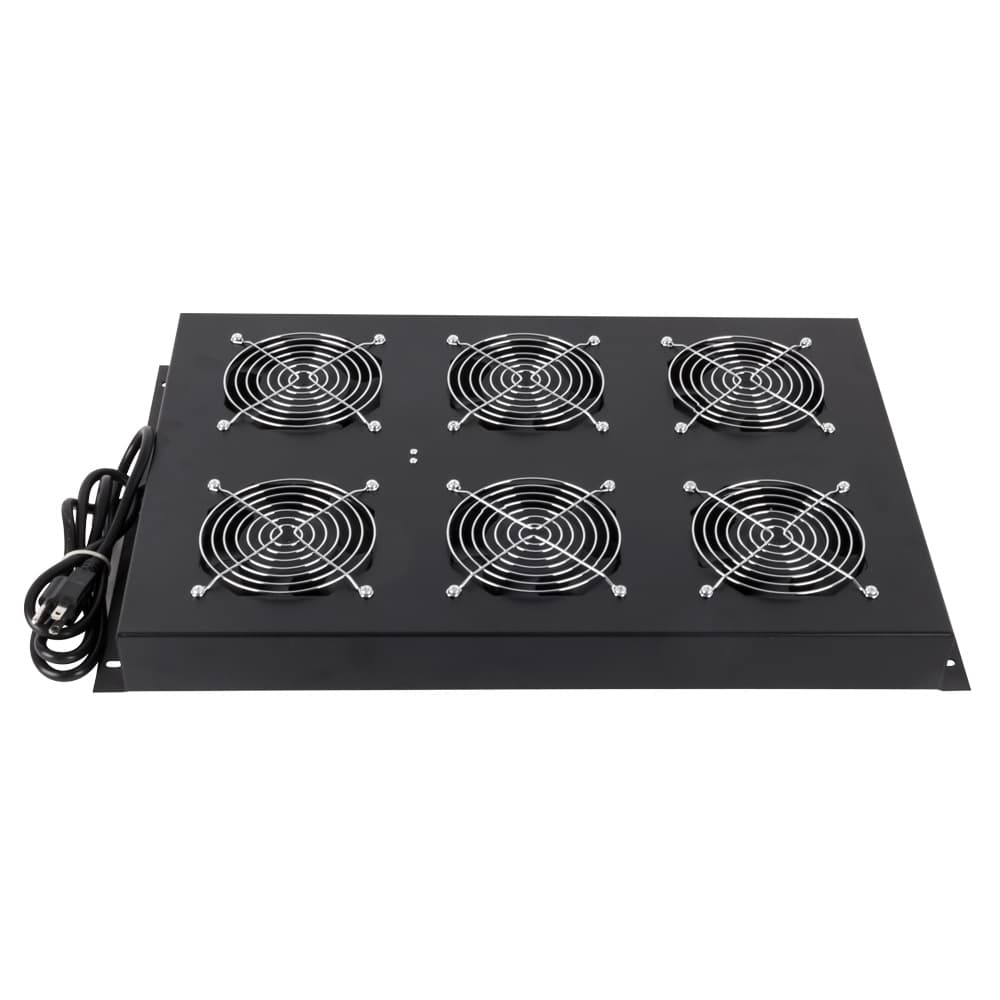

Fantray

The fan tray is powered with a standard 110 power cable that may be plugged into a power strip or PDU.

Vertical Cable Management Tray

These trays run vertically from the top to the bottom of the server cabinet and allow you to route cables to data switches or UPS devices in a structured manner.

Rack-151

Available Heights
18U, 22U, 27U, 32U, 37U, 42U

Available Depths
39" (1000mm)

Available Widths
23.6" (600mm)

Weight Capacity (Static)
1680 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Management Bars Included

Customizable Configuration

Caster Kit

151SW

Available Heights
24U, 32U, 37U, 42U, 48U

Available Depths
42", 48" (1070 mm, 1200mm)

Available Widths
23.6", 31.5" (600mm, 800mm)

Weight Capacity (Static)
3000 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Management Bars Included

Customizable Configuration

Caster Kit

RS148 Data Center Server CabinetRS148 Data Center Server Cabinet

RS148

Available Heights
42U, 48U

Available Depths
42", 48" (1070 mm, 1200mm)

Available Width
24", 30" (610 mm, 762 mm)

Weight Capacity (Dynamic)
3000 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(4) Vertical Cable Management Bars Included

Customizable Configuration

Caster Kit

Rack-151

151SW

151DC

Available Heights

18U, 22U, 27U, 32U, 37U, 42U

24U, 32U, 37U, 42U, 48U

16U, 42U, 45U, 48U

Available Depths

39" (1000mm)

42", 48" (1070 mm, 1200mm)

42", 48" (1070 mm, 1200mm)

Available Widths

23.6" (600mm)

23.6", 31.5" (600mm, 800mm)

24", 30" (610mm, 762mm)

Weight Capacity (Static)

1680 lbs

3000 lbs

3000 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Managment Bars Included

Customizable Configuration

More Information
Product Line RACK 151-SW
Rack Type 4 Post Rack, Enclosed
Hole Type EIA 3/8" square holes
Rack Internal Width EIA 19" Standard Rack
Rack Mount Depth
  • 1070 mm rack: Adjustable mounting depth up to 890 mm (35")
  • 1200 mm rack: Adjustable mounting depth up to 1020 mm (40")
Dell Part Number 151SW-4562 - AB419957
151SW-4563 - AB304910
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 151SW-4560 - 5399487
151SW-4562 - 6358398
151SW-4563 - 4729080
151SW-4565 - 5334347
151SW-4566 - 6197936
151SW-4567 - 5334342
180-4961 - 5401933
Ingram Part Number 151SW-4560 - 01QY31
151SW-4562 - 8PB988
151SW-4563 - 7R9181
151SW-4565 - 4T0010
151SW-4566 - 4F2098
151SW-4567 - 4F2099
180-4961 - 5JV890
Included Hardware (2) keys
Finish Black textured powder coat
Rack Post Shape L Shape
Assembly Notes Ships fully assembled on a pallet
Rack Doors Removable, lockable and reversible
Rack Outside Dimensions 1070 mm x 600 mm D x W Weight: 260 lbs(151SW-4560)
1070 mm x 600 mm D x W (151SW-4561)
1070 mm x 600 mm D x W Weight: 363 lbs(151SW-4563)
1200 mm x 600 mm D x W Weight: 380 lbs (151SW-4565)
1200 mm x 600 mm D x W Weight: 426 lbs(151SW-4566)
1200 mm x 800 mm D x W Weight: 470 lbs (151SW-4567)

Height
  • 48U = 2224 mm (87.5 ")
  • 42U = 1995 mm (78.5 ")
  • 32U = 1547 mm (60.9 ")
  • 24U = 1155 mm (45.5 ")
Rack Casters Standard casters with leveling feet
Rack Sides Removable and lockable
RoHS Compliant Yes
TAA Compliant No

The products on this page ship via freight.

Freight shipping charges start at $600 per freight item. Shipping and handling fees, as well as other additional fees may apply per product.

You will need a freight dock available that is set up to receive freight shipments or additional fees will be applied.

For exact charges, you will need to add all items into your cart at checkout and proceed with your shipping address.

Our freight is currently a flat fee, however, you can contact us directly at info@racksolutions or call us at 1-888-505-7225 and we can see if we can offer you a better freight rate on your order. There is no guarantee that we will be able to offer a better freight rate.

Additional Order and Shipping Information

  • We ship products via FedEx. Freight and palletized shipping can be arranged.
  • We have low international shipping rates. We also offer shipping from multiple regions.
  • Online orders received before 2:00 PM Central time for in stock products will be shipped on the same day. Transit times include business days only.
  • For Saturday Delivery service or other special shipping requests, please call sales at 888-505-RACK before placing the order.
  • Online ordering is provided for convenience and for evaluation of our products. Orders over 50 kits may require special shipping considerations and must be pre-arranged over the phone. Any orders may be placed by contacting RackSolutions directly.

Shipping Errors and Defective Products

Claims for shipping shortages, errors, or defective products must be in writing and received by RackSolutions within ten (10) days after receipt of shipment by buyer. Failure to make such claim within the stated period shall constitute an irrevocable acceptance of the goods and admission that they fully comply with all the terms and conditions of the buyer's order.
For more information, please visit our Policies and Warranty Information.
