2U Joggled Reducer Brackets 2-Pack

As low as €19.89 €17.00
In stock

Allows 19" equipment to fit 23 - 24" racks

  • Does not change mounting depth of rack
  • "Joggled" bracket type keeps mounting flush with the frame
  • Capacity, 50 lbs (22.7 kgs) per rack unit
  • P/N: 2UBRK-23J-PAIR reduces width of 23" rack to 19"
  • P/N: 2UBRK-24J-PAIR reduces width of 24" rack to 19"
  • Single order comes with 2 brackets

Fits any 4Post, 2Post rack

  • Compatible with Square, round holes
  • Works with Dell, HP, IBM, equipment

NOTE: Hardware not included. Rackmount hardware can be purchased here.

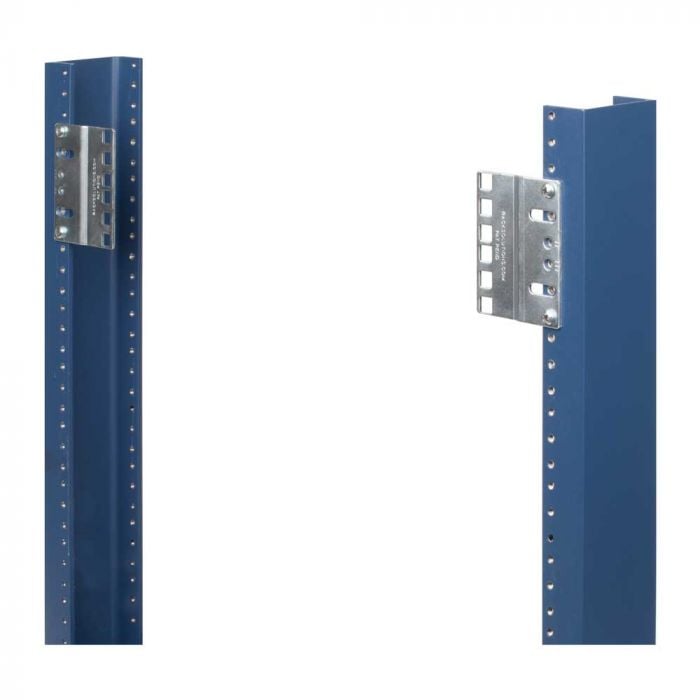

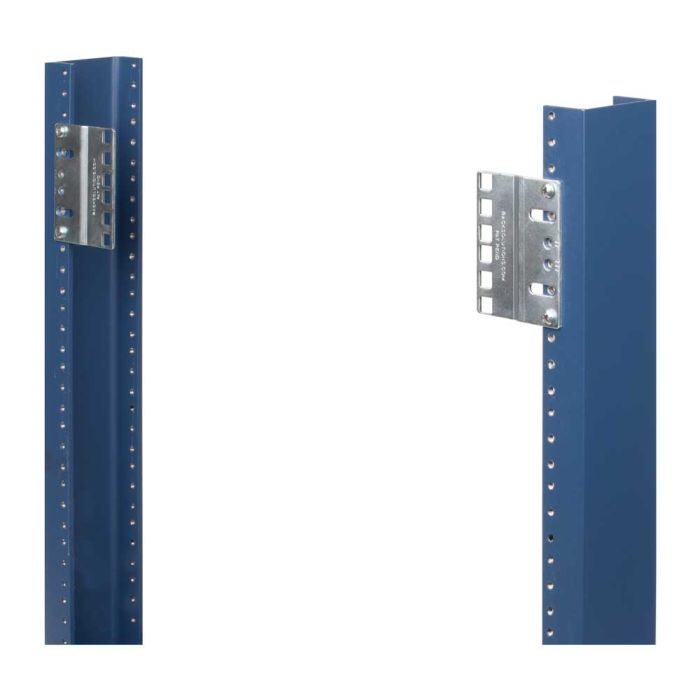

RackSolutions' reducer brackets allow rack-mount equipment designed for 19" (483 mm) racks to be properly installed into 24" (609 mm) and 23" (584 mm) racks.

The 24" (609 mm) and 23" - 19" (584 mm - 483 mm) reducer bracket provides EIA-D standard square holes for installing OEM rails into 24" (609 mm) and 23" (584 mm) round-holed racks.

This "joggled" type bracket has a slight bend in the material that keeps whatever you are mounting flush with the server frame, unlike flat brackets which cause items to stick out slightly.

RackSolutions Reducer Bracket (desktop image)RackSolutions Reducer Bracket (mobile image)

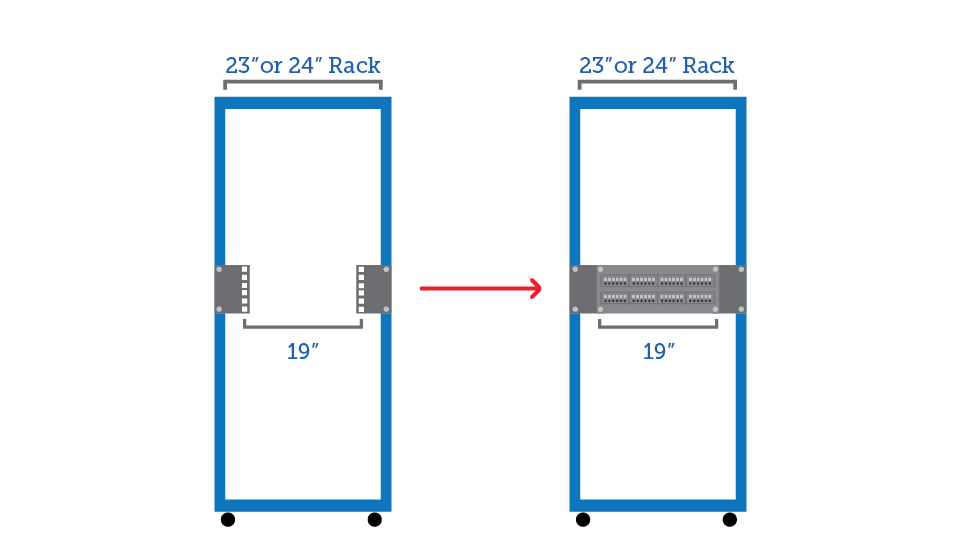

RS-Reducer Bracket

The RackSolutions Reducer bracket allows 19" equipment to be mounted in 23" or 24" racks

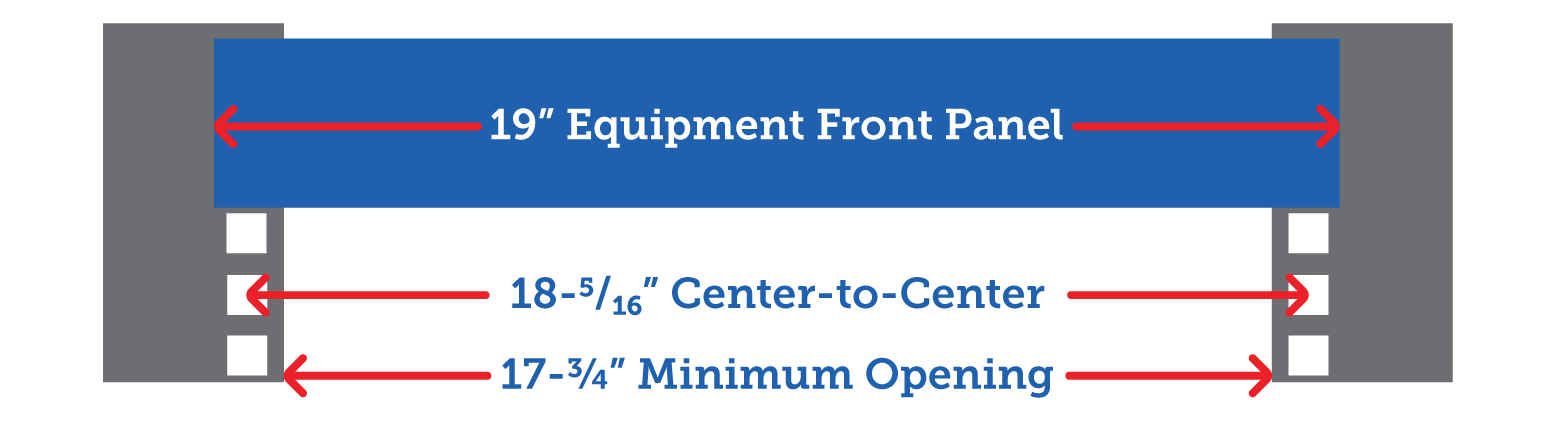

Defining 19 Inch Rack (desktop image)Defining 19 Inch Rack (mobile image)

Why 19" Conversion

19" server rack is the standard. Most OEMs made equipment that mounts in 19" racks. Some 2 post racks can be 23" or 24" wide and our brackets will allow for 19" equipment to be mounted normally.

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Dell Part Number 2UBRK-23J-PAIR - A1292710
2UBRK-24J-PAIR - A1309660
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 2UBRK-24J-PAIR - 4614656
2UBRK-23J-PAIR - 4614655
Ingram Part Number 2UBRK-24J-PAIR - N56015
2UBRK-23J-PAIR - N55499
Hole Type Compatible with all EIA-D standard round hole racks or square hole racks with cage nuts
Tech Notes 50 lb (22.7 kgs) weight capacity per rack unit
