3U Adjustable Monitor Rackmount with Pan & Tilt (No Monitor)

€150.93 €129.00
Out of stock

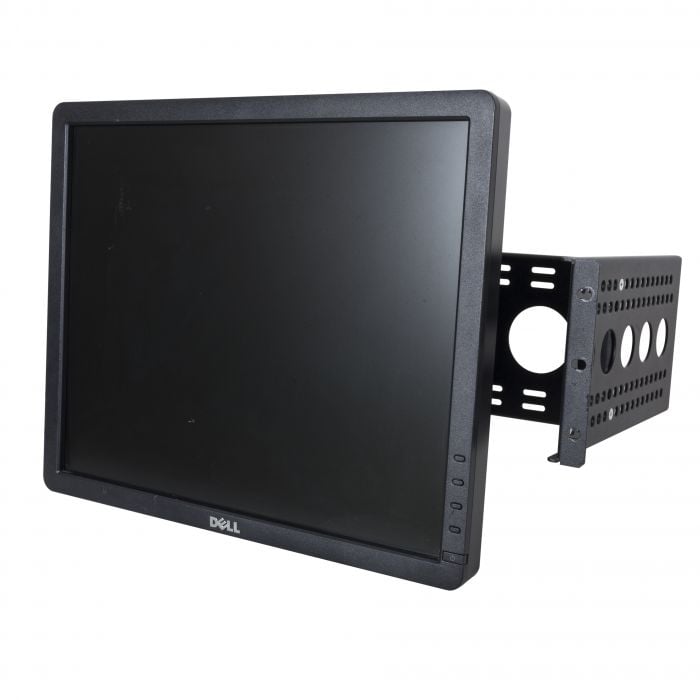

Universal Pivot Monitor Mount for Server Racks

  • Four way pivot arm for the most comfortable viewing angle
  • Adjustable depth from 0.44" - 9.5" (11.2 - 89 mm)
  • 75mm - 100 mm VESA hole pattern
  • Flush Mounting is compatible with most monitors up to 19"
    • Note: Overall width cannot exceed 16.85"
  • Wider displays can be mounted in front of rack post depending on door clearance
  • Great for control rooms, AV labs, and data centers

Monitor not included.

Compatible with standard EIA 19" racks

  • Fits square, round, threaded holes
  • Easily installed in 4 post and 2 Post
  • Dell, HP, IBM, APC compatible

RackSolutions Pivot LCD Flushmount Kit lets you mount an LCD monitor into any EIA standard 19" server rack and position your monitor at the most convenient and comfortable position. The pivot bracket allows four directional movement of the monitor, making it easy to find the perfect viewing angle. Rack mounting a monitor is perfect for displaying server console data and any other video feed you would need in a data center, AV lab, control rooms, and more.All mount assembly hardware and rack mounting hardware included. Pair with a rackmount keyboard for a complete solution.

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained (opens in a new tab).

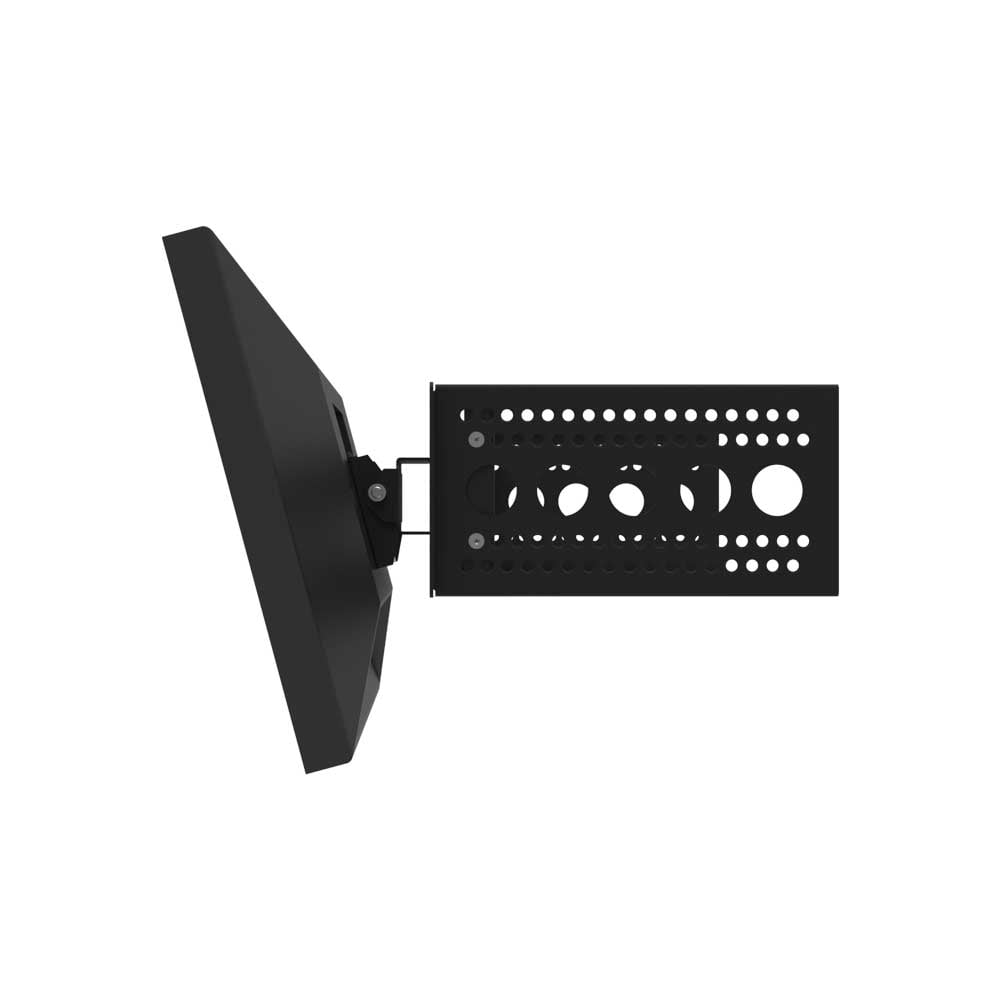

Brack Side Tilt View (desktop image)Brack Side Tilt View (mobile image)

Adjusts to needed equipment depth

Our bracket can mount from 9.5" depth to 0.44" depth in increments of 0.25"

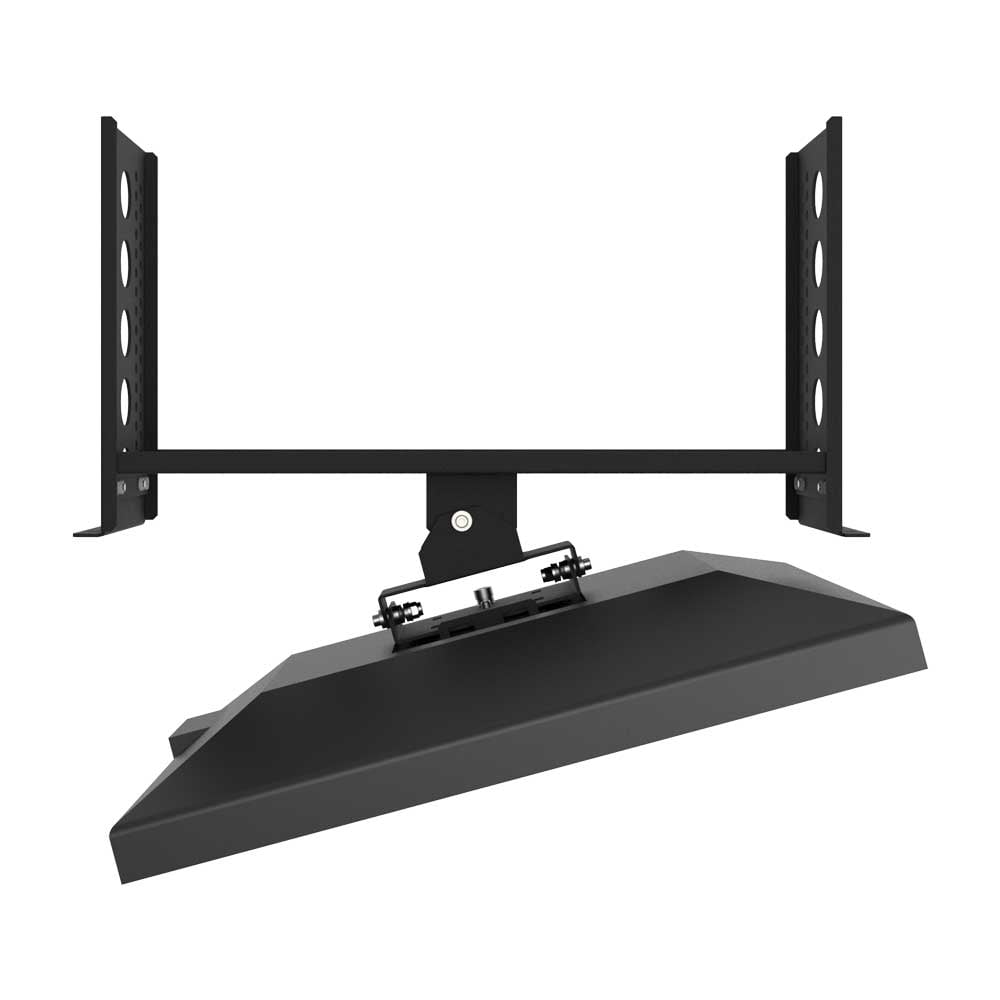

Bracket Top Tilt View (desktop image)Bracket Top Tilt View (mobile image)

The type of tilt you want

Four way pivot arm for the most comfortable viewing angle

VESA StandardHole PatternMonitor WeightScreen Size
FDMI MIS-C75 x 35 mm≤ 10 lbs / ≤ 4.5 kg8" to 11.9"
FDMI MIS-D75 x 75 or 100 x 100 mm≤ 30.8 lbs / ≤ 14 kg12" to 23.9"
FDMI MIS-E200 x 100 mm≤ 50 lbs / ≤ 23.7 kg24" to 30.9"
VESA Specifications Guides (desktop image)VESA Specifications Guides (mobile image)

For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained. (opens in a new tab)

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 7.810000
Country of Manufacture United States
Synnex Part Number 163-6008 - 5772013
Ingram Part Number 163-6008 - 7MQ131
Assembly Notes Phillips head screwdriver required
Finish Black, Powder coated
Tech Notes Installation is flush with rack post, the width cannot exceed: 16.85" (428 mm)
Wider displays can be mounted in front of rack post depending on door clearance.
15" - 19" (381 - 483 mm) displays will typically mount flush with rack post.
