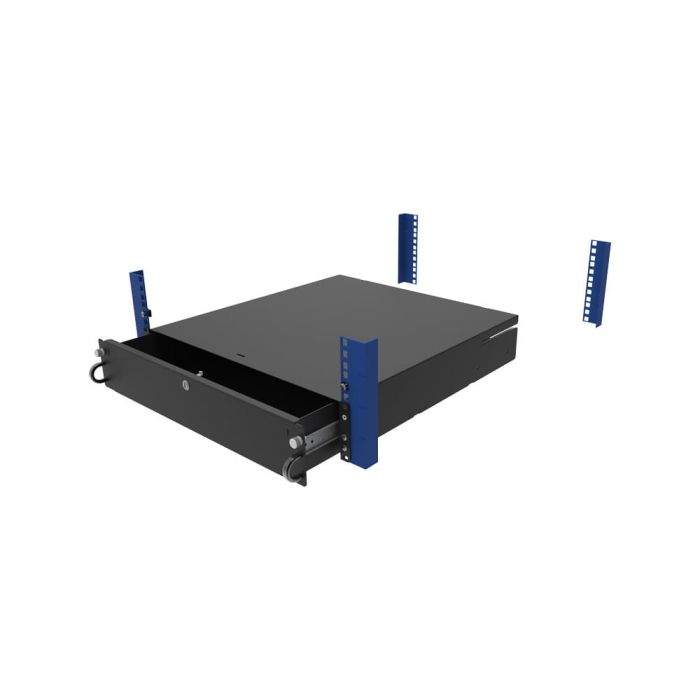

Lockable Rackmount Drawers 18"
Keep all your networking tools on-hand
- 2U, 3U, and 4U sizes
- EIA 19" compatible
- Deep enough to store all tools and a full-sized keyboard or laptop
- Lock and keys keep equipment secure
- Cable access holes located in rear
Large lockable drawer for server racks
- Optional bracket to fasten drawer to rear of rack
- High quality ball bearing slides
- 100 lbs (45 kgs) max capacity with bracket
- 25 lbs (1 kgs) max capacity without bracket
- Why put drawers in a server rack?
RackSolutions 18” Lockable Rackmount Drawers provide a secure enclosure to store equipment that you need on-hand for your server rack, such as USB drives, hardware, cable management supplies, manuals, patch cables, networking tools, and more.
Available in sizes from 2U-4U, this drawer features an integrated lock to keep all of your equipment safely stored. The rack-mountable drawer extends up to 20” from the rack on high-quality ball bearing slide rails. With up to 2,000 cubic inches of storage, the 18” drawer is perfect for storing a laptop or full-sized keyboard.
The rear access holes allow cables to be routed to any equipment that is stored in the rackmount drawer. An optional bracket is available to fasten the drawer to the rear of the rack to prevent sagging into the rack units below. When rear brackets are used, the mounting depth is between 3”-32” deep.
|Country of Manufacture||United States|
|Assembly Notes||Phillips Head Screwdriver Required|
|Dimensions||2U Dimensions (W x H x D):
19" x 3.45" x 18.65" (483 mm x 88 mm x 474 mm) 3U Dimensions (W x H x D):
19" x 5.2" x 18.65" (483 mm x 132 mm x 474 mm) 4U Dimensions (W x H x D):
19" x 6.95" x 18.65" (483 mm x 177 mm x 474 mm) Weight Capacity: With bracket (101-5195) 100 lbs (45 kgs) Without bracket 25 lbs (11 kgs) Cable Access Hole: 1.25" (32 mm) Inside Width: 16.63" (422 mm) Drawer Extension: 20" (508 mm)
|Finish||Black Textured Powder Coated Steel|
|Included Hardware||Assembly Components:
|Dell Part Number||101-5195 - AA238775
160-5030 - AA238772
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Synnex Part Number||160-5030 - 5751432 160-5031 - 5751433 160-5032 - 5386861 101-5195 - 5386858|
|Ingram Part Number||160-5030 - 5DK103 160-5031 - 5DK104 160-5032 - 5DK105 101-5195 - 5DK106|
|Amazon ASIN||160-5030 = B01DJN5KOA 160-5031 = B01NBXWHKR 160-5032 = B01N6U301V|
