5U HyperShelf for 6 Apple Mac Studio
Rack mount up to 6 Mac Studios per shelf
- Increases operational efficiency with limited space
- Integrated airflow ducting for optimal cooling and thermal efficiency
- Supports more Mac Studios per rack than alternatives in the industry
- No power button or port interference
- 26” - 29.5” mounting depth range
HyperShelf for Apple Mac Studio Features
- Rack mount 6 Mac Studios per 5 rack units of space
- Extends out of the server rack for in-rack serviceability
- Built-in cable management for tie points/pathways
- Isolated intake and exhaust ports
- Optional blanking plate to control and improve airflow
Designed for enterprise deployments and data center environments, the Apple Mac Studio HyperShelf allows you to rack mount 6 mac studios per 5U of rack space. This rack mount shelf provides a lower installation cost per device that doesn’t interfere with the power button or peripheral ports. We built the Mac Studio HyperShelf to perfectly optimize space and airflow so that your mac studios will last and perform. You will be able to increase scalability and decrease deployment times.

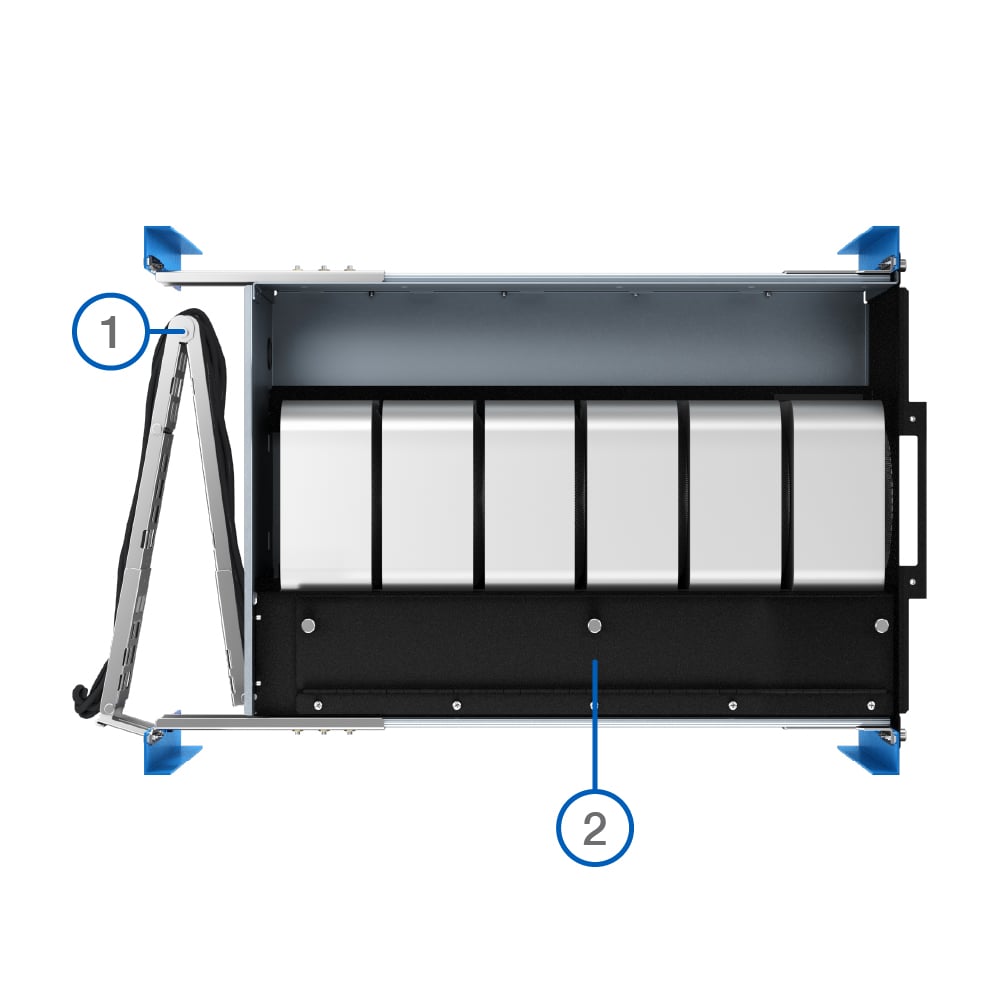

The fully articulated Cable Management Arm is compact and adjustable. The cable management arm extends out of the rack for in-rack serviceability, allowing you to easily slide your mac studios in and out of the rack. The Mac Studio shelf features built-in cable management, so you can conveniently pass cables through the pathway within limited space.

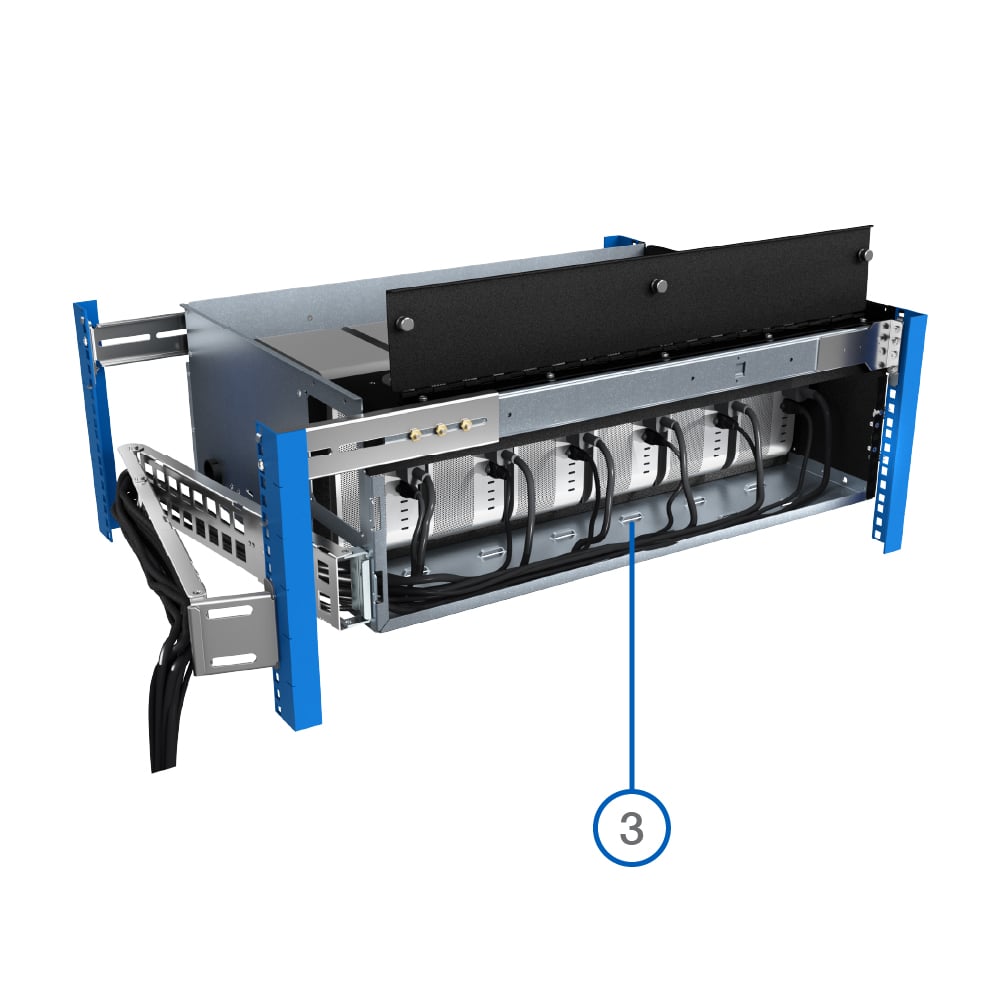

The Mac Studio HyperShelf features integrated tie points, allowing you to designate cable pathways for cable management and organization.

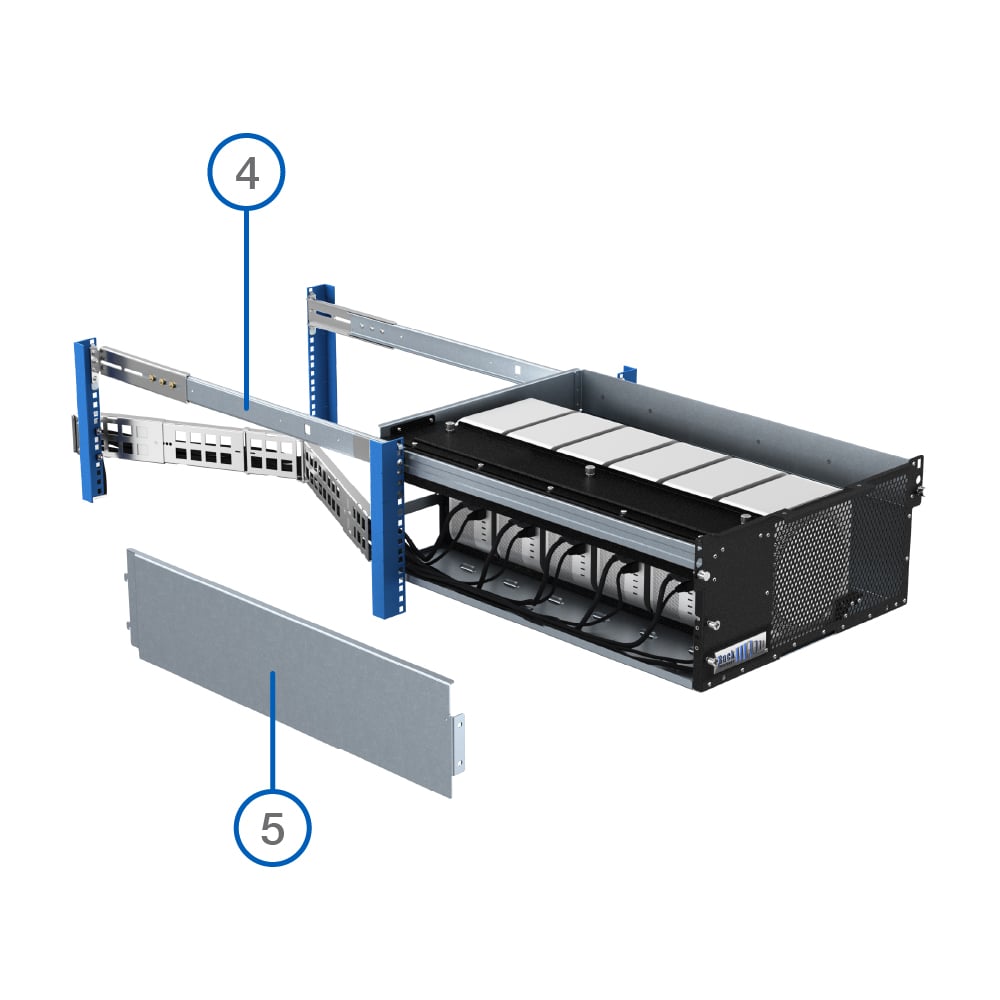

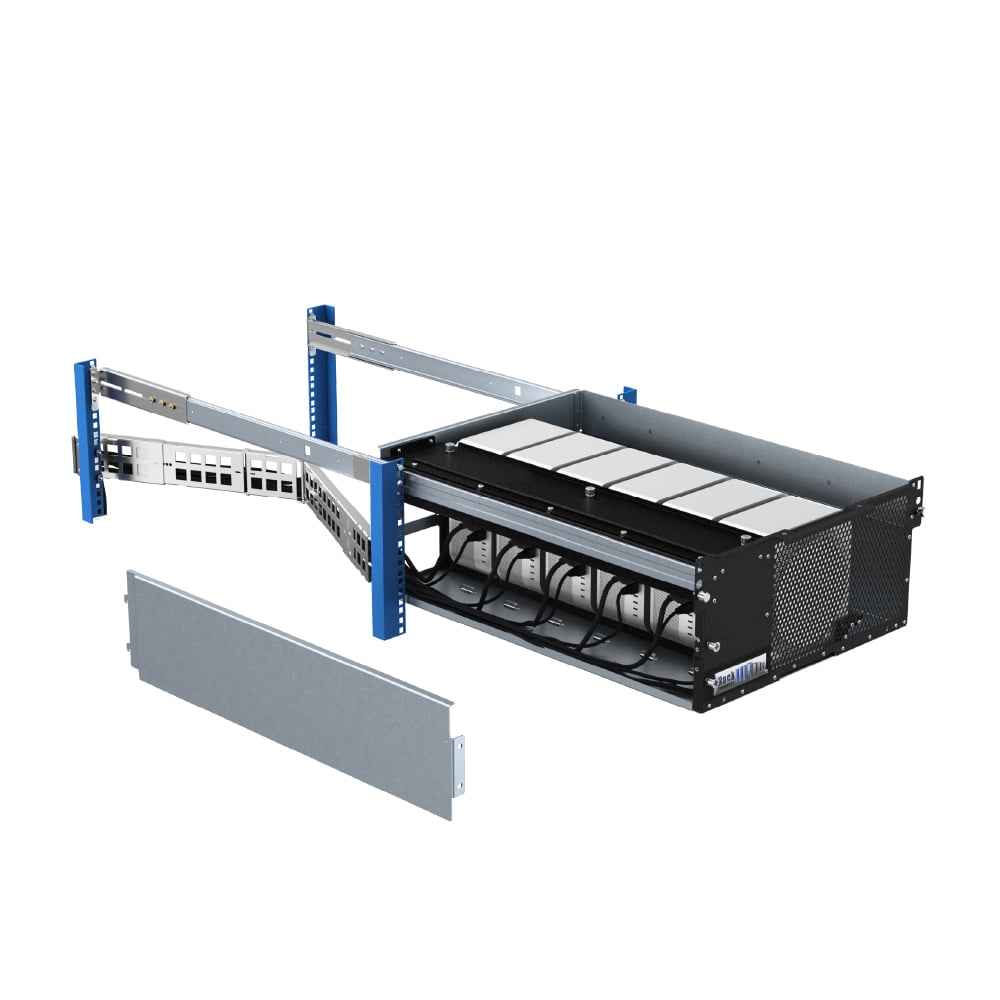

The rack mount shelf sits on high-quality ball bearing slide rails for easier serviceability and increased accessibility. For increased operational efficiency, the side panel provides airflow management for your devices. The removable side panel is included for cable access and exhaust containment.

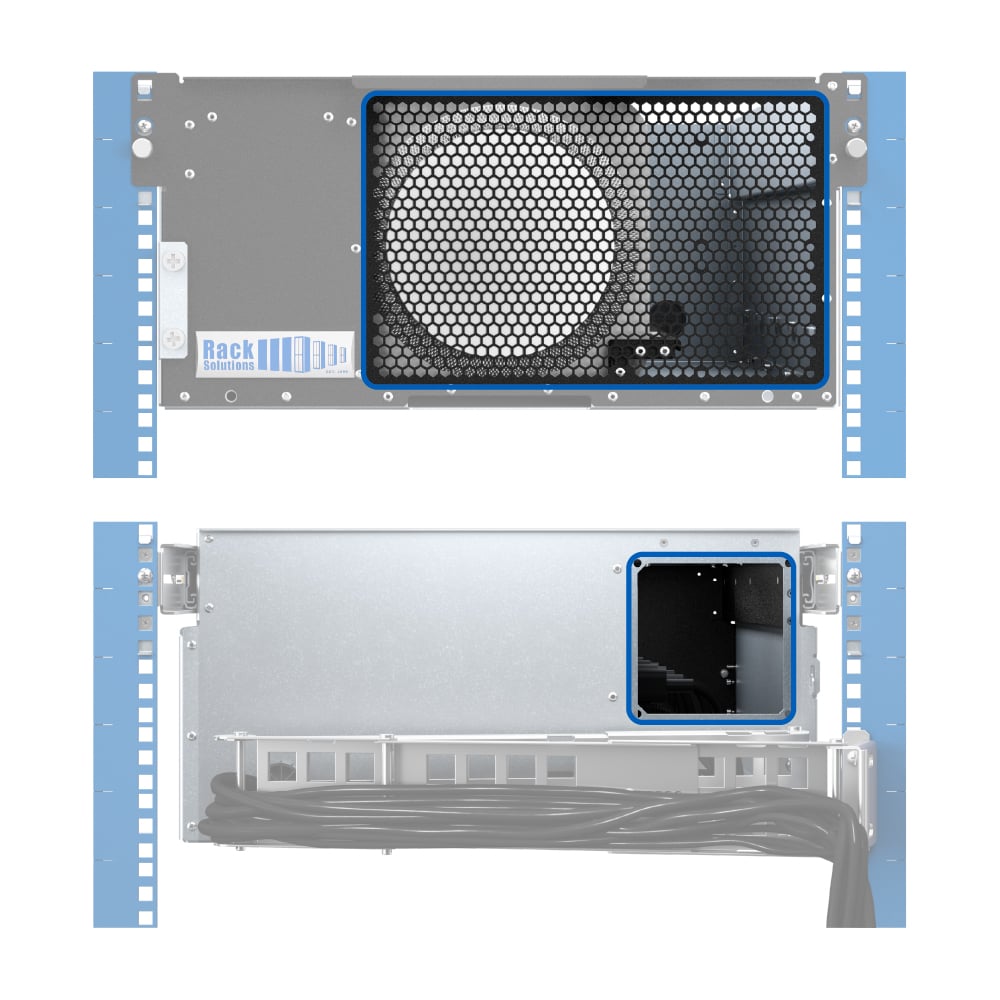

For optimal cooling and thermal efficiency, the Mac Studio HyperShelf features integrated airflow for your mac studios. To prevent the air from mixing, the intake and exhaust separates the hot and cold air.

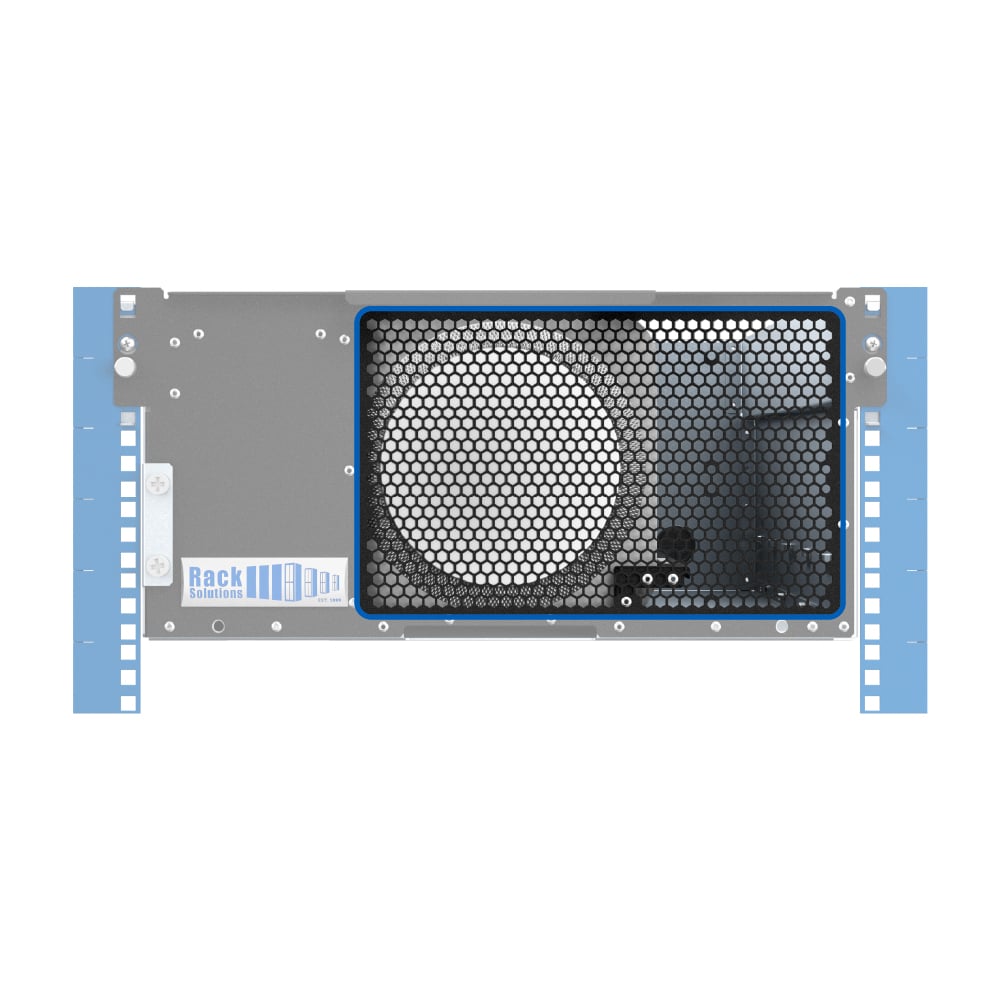

The front airflow management of the rack mount shelf includes mounting holes for optional fans to be installed. The airflow management separates the hot and cold air, so you can be confident that your mac studios will not overheat.
The rack mount shelf features an access door for accessing power buttons or peripheral ports.
|Country of Manufacture||United States|
|Ingram Part Number||115-8652 - 06UV29|
|Rack Type||4 Post|
|Mounting Depth Range||26” - 29.5”|
|Included Hardware||All mounting hardware included|
|Material||16 GA Galvanized steel, 14 GA CRS, 16 GA CRS|
