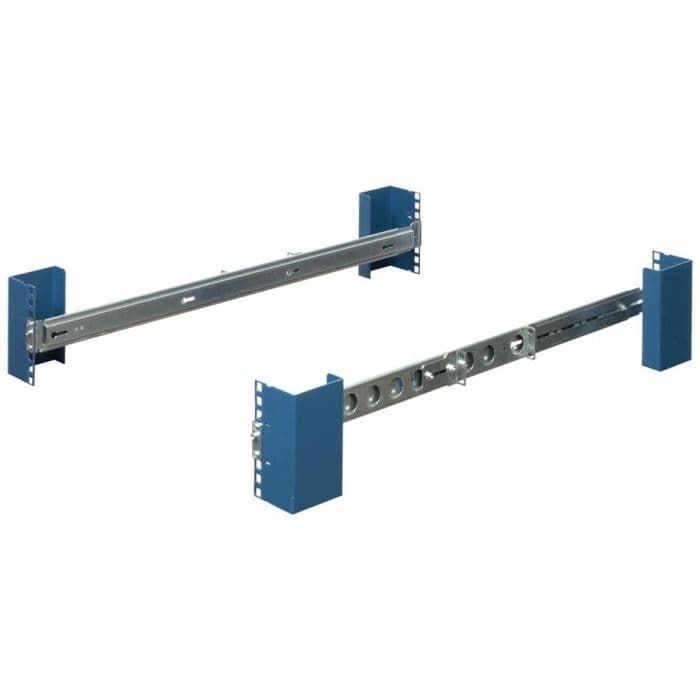

1U Raven 100-A Rail for HP

€97.44 €84.00
Out of stock
SKU
122-2413

Fits any 4 Post rack

  • Non-ball bearing, slide rails
  • Square, round, threaded hole compatible
  • Adjustable mounting depth of 18 - 34.5" (457 - 876 mm)
  • HP rail kit not required
  • Supports L, C, Z and ? rack upright shapes

Alternative to HP DL320 Gen 8, DL360 Gen 8 & Gen 9 rail kit

  • Mounts HP DL320 Gen 8, DL360 Gen 8 & Gen 9 in 4Post racks
  • Mounts HP DL320 Gen 8, DL360 Gen 8 & Gen 9 in any 2Post Relay Rack

Fits any 2Post rack

  • Center mounts in 2Post rack
  • Works with 3" - 6" uprights



This slide rail kit allows the HP DL320 Gen 8, DL360 Gen 8 and Gen 9 to be installed in any type of server rack. These rails replace the HP rail kit that would normally come with the sever. This 1U HP rail kit allows the server to be installed in typical 4Post server racks as well as 2Post server racks. These rails are considered a dry slide type. They allow the server to slide in and out, but they are not ball bearing slides. Also, the rails do not include a stop catch mechanism that prevents the server from sliding completely out of the rack when removing it for servicing.

More Information
HP Server Compatibility DL60 G9, DL120 G9, DL120 G10, DL160 G8, DL160 G9, DL160 G10, DL320 G8, DL325 G10, DL360 G8, DL360 G9, DL360e G8
Compatibility HP DL320 Gen 8
HP DL360 Gen 8
HP DL 360e Gen 8
HP DL360 Gen 9
HP DL160 Gen 9
HP DL120 Gen 9
HP DL60 Gen 9
HP DL160 Gen 8
HP DL160 Gen 10
HP DL120 Gen 10
HP DL325 Gen10
Dell Part Number 122-2413 - AA182301
Rail OEM HP
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Mounting Hardware:
(8) 8-32 x .500 Pan Head Screws
(2) Retainer Plate (Left & Right)
(2) Mounting Plate
(8) 10-32 x .500 Pan Head Screws
(8) 12-24 x .500 Pan Head Screws
(8) 12-24 Square Nut
(8) 12-24 Cage Nut

Rear Bracket Hardware:
(4) 8-32 x .375 Flat Head Screws
(4) 8-32 Keps Nuts
Rail Type Non-ball bearing slides
Mounting Depth Range 4Post server racks: 18 - 34.5" (457 - 876 mm)
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack.

Inner Rail Length: 27.3"
Finish Zinc plated
Rack Type 2 Post , 4 Post
Amazon ASIN B00ECH58G8
RoHS Compliant Yes
TAA Compliant Yes
