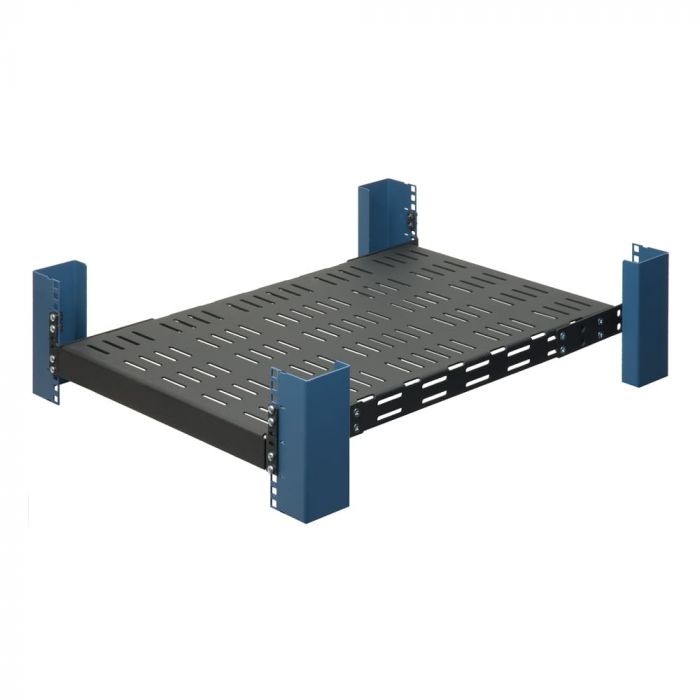

2U Fixed Heavy Duty Rack Shelf

Availability: In stock

2U Fixed Heavy Duty Rack Shelf
  • Front view - Heavy Duty Fixed Shelf
    Front view - Heavy Duty Fixed Shelf
    close
  • Heavy Duty Fixed Shelf
    Heavy Duty Fixed Shelf
    close
  • Front view with server - Heavy Duty Fixed Shelf
    Front view with server - Heavy Duty Fixed Shelf
    close
  • Side view - Heavy Duty Fixed Shelf
    Side view - Heavy Duty Fixed Shelf
    close
  • Top view - Heavy Duty Fixed Shelf
    Top view - Heavy Duty Fixed Shelf
    close
  • Side view with server - Heavy Duty Fixed Shelf
    Side view with server - Heavy Duty Fixed Shelf
    close
  • 1USHL-116 mounted in 2 post rack
    1USHL-116 mounted in 2 post rack
    close
  • 1USHL-116 mounted in 2 post rack
    1USHL-116 mounted in 2 post rack
    close
  • 1USHL-116 mounted in 2 post rack
    1USHL-116 mounted in 2 post rack
    close

Ideal for Large Printers, UPS, and Tower Servers

  • Supports the even the heaviest equipment
  • Made from Thick 1/8" steel
  • Choose from a 500 lb or 900 lb weight capacity
  • Adjustable mounting brackets

Compatible with 2 Post and 4 Post Racks

  • Weight Capacity
    1USHL-116: 500 lbs (226 kgs)
    108-0991: 900 lbs (409 kgs)
  • Shelf Depth: 28" (711 mm)
  • Adjustable Mounting Depth: 15 - 31.5" (381 - 800 mm)
  • Fits square, round, threaded holes
See "Additional Information" for Technical Specifications.
Rack Solutions Promise

Fixed Heavy Duty Rack Shelves

Product Name SKU Price Qty
Heavy Duty Fixed Shelf, 500 lb capacity 1USHL-116
Excl. VAT: €100.00 Incl. VAT: €117.00
Heavy Duty Fixed Shelf, 900 lb capacity 108-0991
Excl. VAT: €130.00 Incl. VAT: €152.10

Out of stock

Description

Details

RackSolutions' Fixed Heavy Duty Rack Shelf is built to withstand even the heaviest equipment in a server rack. The shelf's 1/8" steel construction helps gives the shelf a whopping 500 lbs (226 kgs) weight capacity and a depth of 28 inches (711 mm). For even heavier equipment, a version with a 900 lb (226 kgs) weight capacity is available. The extra heavy duty version of this shelf uses stronger front and year brackets that better spread the load of the shelf. Our Heavy duty rack shelves can be installed into racks with square, round, or threaded holes in EIA standard 2Post relay racks.

Additional Information

Additional Information

Equipment Depth 28" ( 711 mm)
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 28" x 17.58" ( 711 mm x 447 mm)
Finish Black textured powder coat
Mounting Depth Range 15 - 31.5" (381 - 800 mm)
Included Hardware 10-32 & 12-24 screws. Cage nuts are included for square hole racks
Weight Capacity 1USHL-116: 500 lbs (226 kgs)
108-0991: 900 lbs (409 kgs)
Rack Units 2U
Tool-less/Standard Standard
Overall Installation Depth 31.5" (800 mm)
Material 1/8" steel
RoHS Compliant Yes
