4U Adjustable Monitor Rackmount (No Monitor)
Universal Monitor Mount for Server Racks
- Flushmount any LCD monitor up to 20"
- Uses standard 75 mm - 100 mm VESA hole pattern
- Adjustable center mount depth of .44 - 3.5" (11.2 - 89 mm)
- Great for viewing data in control rooms, AV racks, and data centers
Monitor not included.
Compatible with standard EIA 19" racks
- Fits square, round, threaded holes
- Easily installed in 4 post and 2 Post racks
- Dell, HP, IBM, APC compatible

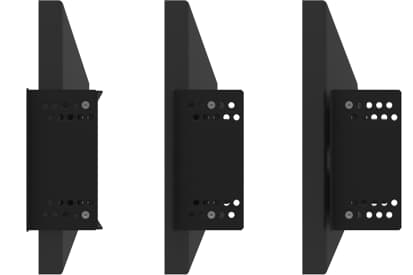

Adjustable Center Mount Depth
Adjust your monitor depth in your rack in increments of 0.25" to get the best viewing angle

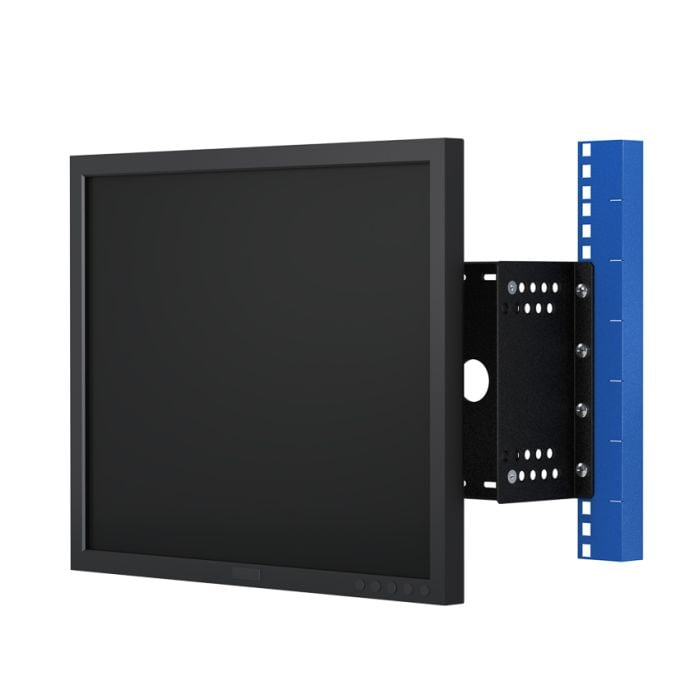

Universal Monitor Mounting
Mount any monitor within 17.5" width inside the bracket, or mount wider monitors on the front of the bracket
The flush mount monitor kit allows for the installation of any flat screen monitor with 75 or 100 mm VESA mount into any EIA standard 19" server rack. With this kit, you can install up to a 20" flat screen display into a server rack. The rack is perfect for displaying any data or other video feed from a server rack, control center, or AV rack. A rackmount keyboard is available as an optional feature.
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained.
|KVM Type||Monitor Mount|
|Mounting Depth Range||Max bracket depth - 3.5"
Min bracket depth - 0.44"
Adjustable depth increments - 0.25"
|Rack Type||2 Post Rack (Telco Rack), 4 Post Rack|
|Tech Notes||Installation is flush with rack post, the width cannot exceed: 17.5" (444.5 mm)
Wider displays can be mounted in front of rack post depending on door clearance.
15" - 19" (381 - 483 mm) displays will typically mount flush with rack post.
20" (508 mm) display can mount flush. However, it cannot exceed the 17.5" (444.5 mm) width, or it will require mounting the display forward of the rack post.
|Overall Installation Depth||Center mounting bracket: 0.44" - 3.5" (11.2 - 89 mm) adjustable in 0.25" (6.35 mm) increments|
|Hole Type||Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24, and Metric M6
|Included Hardware||Assembly Contents:
|Assembly Notes||Phillips head screwdriver required|
|VESA Mount||Compatible with 100 mm or 75 mm VESA hole patterns|
|Finish||Black, Powder coated|
|Dell Part Number||MON-BRK-163: A3456978 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.|
|Synnex Part Number||MON-BRK-163 - 5388713|
|Ingram Part Number||MON-BRK-163 - V10300|
