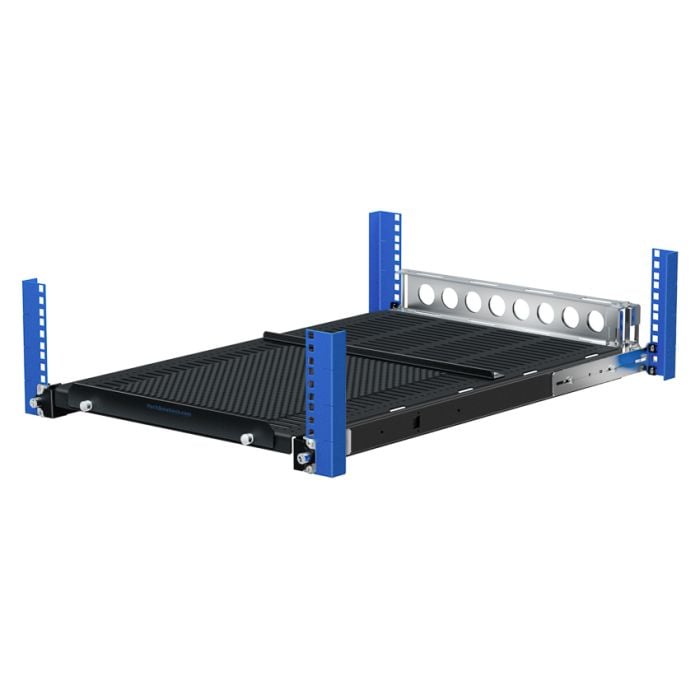

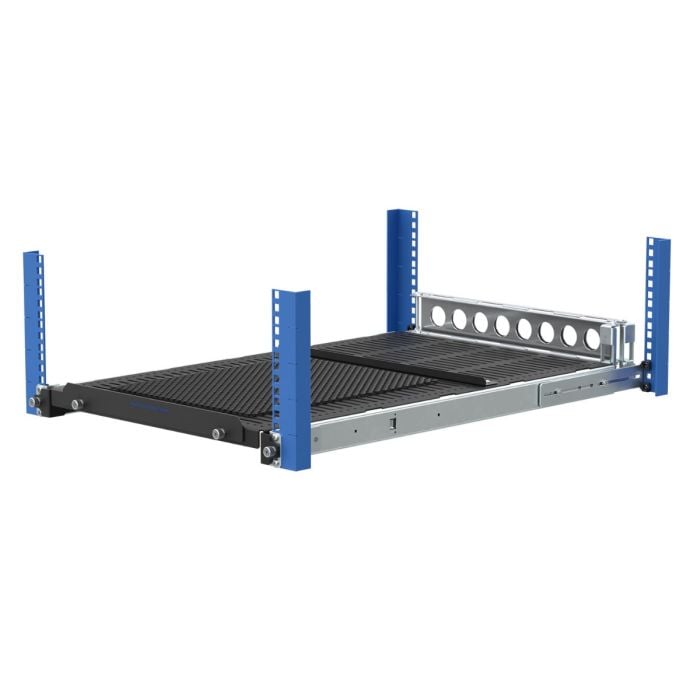

1U 115 Sliding Equipment Shelf 27in Depth

As low as €0.00 €0.00
In stock
Qty:
Qty:

Tower Server and Desktop Ready

  • Cable management arm (CMA) included
  • Front and back equipment stops included
  • Thumb screws lock the shelf into place
  • High quality ball bearing slides
  • Tower-to-Rack conversion
  • Compatible with round, threaded, and square rack holes

See "Additional Information" for Tech Specs.

RackSolutions Sliding Equipment Shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lbs (43kgs) weight capacity and will support a wide variety of IT equipment.

Computers up to 27" (685mm) deep can be supported on a 19 inch equipment shelf in any 4Post rack. Constructed of 14 GA steel, the RackSolutions Sliding Equipment Shelf is designed for storing your non-rack mountable equipment safely.

The slide rails extend a full 30" (762mm) on this equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Your purchase includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat, and optional straps for securing equipment for transport or seismic applications.

Light Duty Laptop ShelfLight Duty Laptop Shelf

115-5029

Strength
Light Duty

Weight Capacity
75 lbs.

Sliding / Fixed
Sliding

Sliding Equipment ShelfSliding Equipment Shelf

1USHL-115

Strength
Standard

Weight Capacity
95 lbs.

Sliding / Fixed
Sliding

Heavy Duty Sliding ShelfHeavy Duty Sliding Shelf

2USHL-130

Strength
Heavy Duty

Weight Capacity
235 lbs.

Sliding / Fixed
Sliding

2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs)2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs)

115-4044

Strength
Extreme Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed
Sliding

More Information
Dell Part Number 1USHL-115 - A0134097
101-0914 - AA107473
115-1526 - AB250753
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Assembly Notes Removable, front equipment stop bar
Adjustable rear equipment stop bar
Optional straps for securing equipment for transport or seismic applications
Equipment Depth Maximum: 26.8" (681 mm)
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 16.5" W x 26.8" D (419 x 681 mm)
Finish Textured, black, powder coated
Mounting Depth Range 15.5 - 31.5" (394 - 800 mm)
Included Hardware Cage nuts and screws
Weight Capacity 95 lbs (43kgs)
Rack Units 1U
Tool-less/Standard Standard
Overall Installation Depth 15.50” - 31" (393mm - 787mm)
Hole Type Compatible with round, threaded, or square rack holes
Amazon ASIN 1USHL-115 = B00UVK6T5E
115-1526 = B00TJI58V0
TAA Compliant Yes
RoHS Compliant Yes
