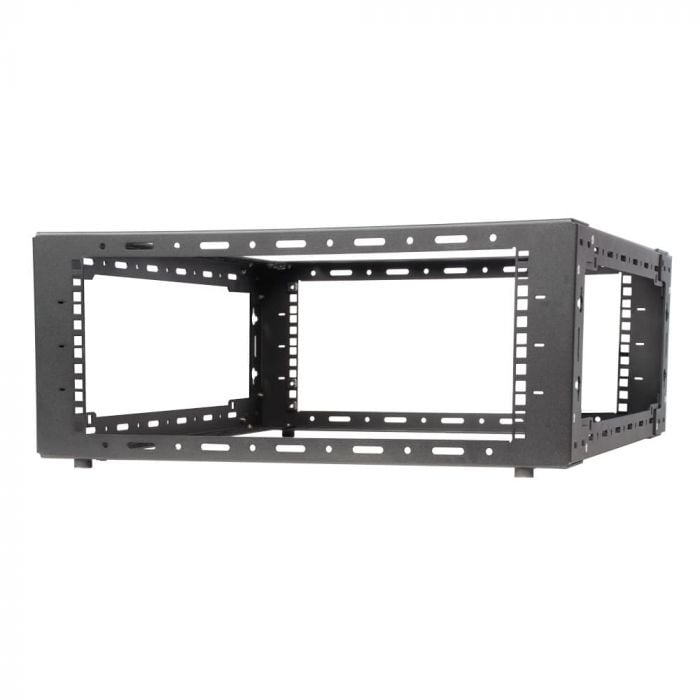

Open Frame Desktop Rack
Highly configurable 19” desktop rack
- 4U, 6U or 9U options that can be converted to 12U or 15U when placed vertically
- 50 lb per U capacity (9U = 450 lb capacity)
- Depths: 12U = 24.70”; 15U = 29.95”
- 2Post options available at Open Frame 2 Post Desktop Rack
Can also be used in wall mount rack applications
*12U = 24.70” depth / 15U = 29.95” depth
See "Additional Information" for Tech Specs.
Please call for shipping rates to Hawaii, Alaska and Puerto Rico.
Our desktop rack unit is available in 4U-9U front mounts and 12U-15U top mounts combining into 9 total configurations. The open frame rack desktop rack mounts 19" rack-mount equipment and holds 50 lbs per U capacity.
Desktop mount 19" equipment and servers
Our desktop rack is tool-less and non-locking. The desktop rack mount side panels come in 6 different sizes and are sold as single units. You must order 2 side panels per desktop server rack if you wish to install side panels on the left and right side of the desktop rack stand. The desktop equipment rack side panels are easy to install.

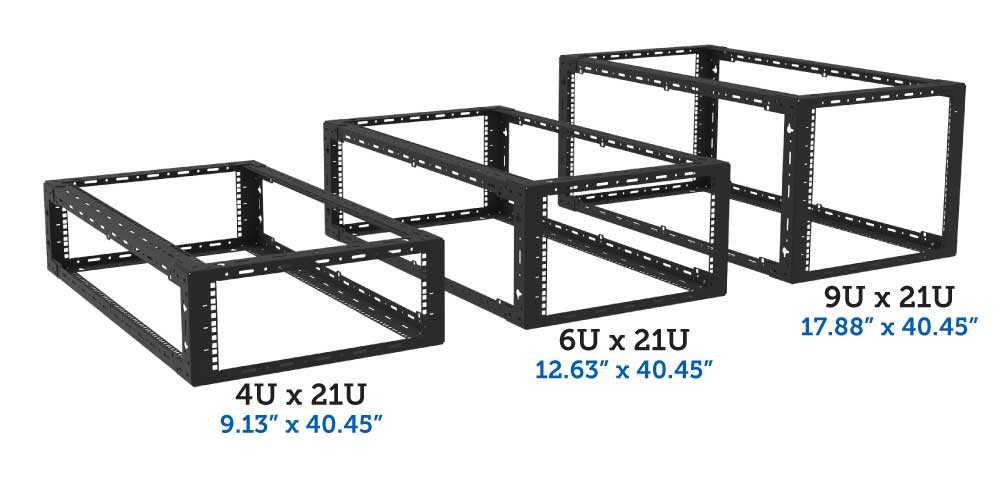

Front U space X Top U space
Overall Height X Overall Depth
Wall Mount Conversion
Our desktop rack also is capable of being wall mounted. There are four mounting keyholes on what would be the top and bottom of the rack when sitting on a desk.
When the rack is mounted to studs on all four keyholes, it will have a weight capacity of up to 400 lbs depending on the choice of U height. Small equipment can be mounted vertically on the wall while full sized servers will need to be mounted horizontally
|Rack Type||4 Post Rack, Open Frame|
|Rack Internal Width||EIA 19" Standard Rack|
|Dell Part Number||119-1591 (4U) - A4973686
119-1752 (12U) - A4603637
119-1781 (15U) - A4915238
119-1754 (6U) - A4986314
119-1755 (9U) - A4603652
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
|Included Hardware||(2) Frames
Assembly Hardware Kit
(32) 10-32 x .375" Flat Head Screws
Mounting Hardware Kit
(4) .25" Hex Lag Screws
(4) .281 Flat Washers
Rack Mount Hardware Kit
(20) 12-24 x .500" Pan Head Screws
(20)12-24 Cage Nuts
|Finish||Black, powder coated|

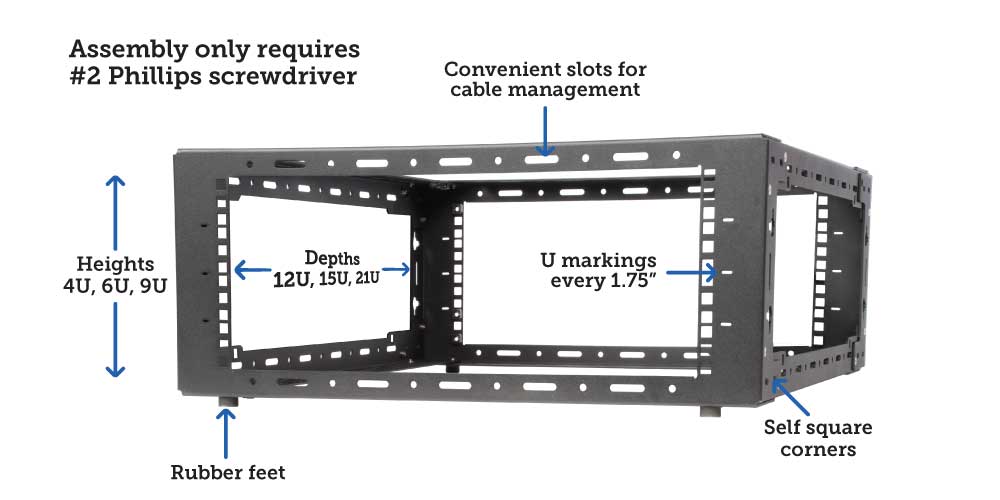

|Assembly Notes||Assembly time is less than 10 minutes
Requires only a #2 Phillips Screwdriver
|Rack Units||4U, 6U, or 9U front mount 12U, 15U, 21U top mount|
|Dimensions||Vertical: 4U, 6U, 9U in front and rear Horizontal: 12U, 15U, 21U on top|
