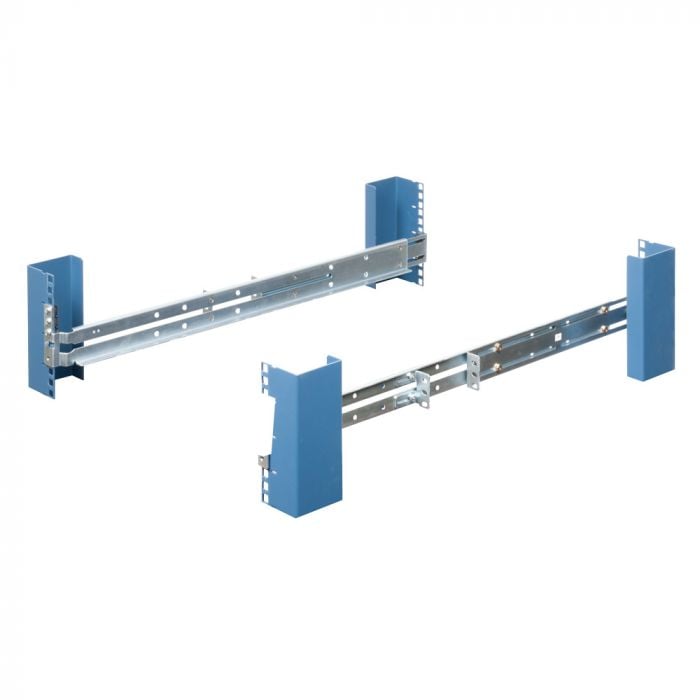

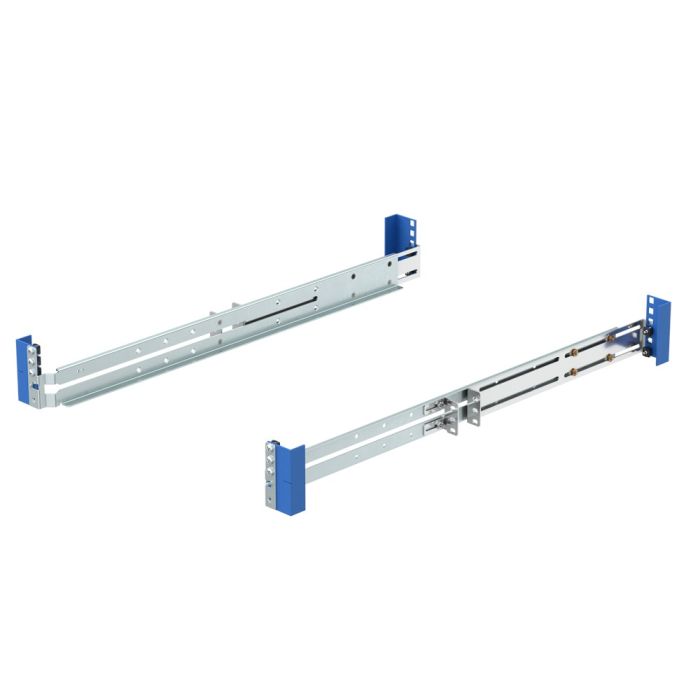

Dell PowerEdge R810, R815 & Precision R5500, 7610 Rack Rails

Availability: In stock

Dell PowerEdge R810, R815 & Precision R5500, 7610 Rack Rails
  • 4Post - Dell PowerEdge R810 Rack Rails
    4Post - Dell PowerEdge R810 Rack Rails
    close
  • 4Post with server - Dell PowerEdge R810 Rack Rails
    4Post with server - Dell PowerEdge R810 Rack Rails
    close
  • 2Post flush mount with server - Dell PowerEdge R810 Rack Rails
    2Post flush mount with server - Dell PowerEdge R810 Rack Rails
    close
  • 2Post flush mount - Dell PowerEdge R810 Rack Rails
    2Post flush mount - Dell PowerEdge R810 Rack Rails
    close
  • 2Post center mount with server - Dell PowerEdge R810 Rack Rails
    2Post center mount with server - Dell PowerEdge R810 Rack Rails
    close
  • 2Post center mount - Dell PowerEdge R810 Rack Rails
    2Post center mount - Dell PowerEdge R810 Rack Rails
    close

Fits any 4Post rack

  • Square, round, threaded holes
  • Alternative to Dell R810 or R815 rail kit
  • Mounting depth of 16 - 36" (406 - 914 mm)
  • Supports L, C, Z and ? rack upright shapes

2Post centre mount

  • Purchase P/N: 109-1737
  • 2Post flush mount

    • Purchase P/N: 109-1841
    • some_text
Rack Solutions Promise
Product Name SKU Price Qty
Dell PowerEdge R810, R815 & Precision R5500, R7610 Rack Rails 109-1737
Excl. VAT: €78.00 Incl. VAT: €91.26
Dell PowerEdge R810, R815 Rails for 2Post Flush Mount 109-1841
Excl. VAT: €129.99 Incl. VAT: €152.09

Out of stock

Description

Details

Features

The Dell R810,815,R5500,R7610 rail kit is a replacement for the Dell rail kit that is provided with the R810, R815, R550 and R7610 servers. The R810/815 rail kit is compatible with 4Post and 2Post server racks. The Dell R810,815,R550,R7610 rail kit is a fixed rack mounting device. These rails will mount in a 4Post rack. They may also be centre-mounted in a 2Post rack.

Additional Information

Additional Information

Compatibility Dell PowerEdge R810
Dell PowerEdge R815
Dell Precision R5500
Dell Precision R7610
Rail OEM Dell
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware
  • (12) 10-32 pan head screws
  • (12) 12-24 pan head screws
  • (12) 12-24 cage nuts
Assembly Notes Phillips head screwdriver required
Rail Type 4Post and 2Post, 19" EIA-310 standard server racks
Tech Notes The front mounting flange of the rail kit engages the Dell slam latch
Finish Zinc plated
Rack Units 2U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
