2U Cobra 135-A Rail for Dell
Mounts in 4 Post Racks
- Only compatible with the Dell PowerEdge R760xd2
- Mounting depth: 27 - 30" (686 - 762mm)
- Slam latch fully secures the server into place
- Sliding rack rails provides easy serviceability
Alternative to Dell OEM Rail Kits
- High-quality dry slide that lasts longer than ball bearing kits
- Works with all EIA 19” standard racks
- Supports L and C rack upright shapes
- Works with square, round, and #12 threaded holes racks
- Original Dell rail kit not required

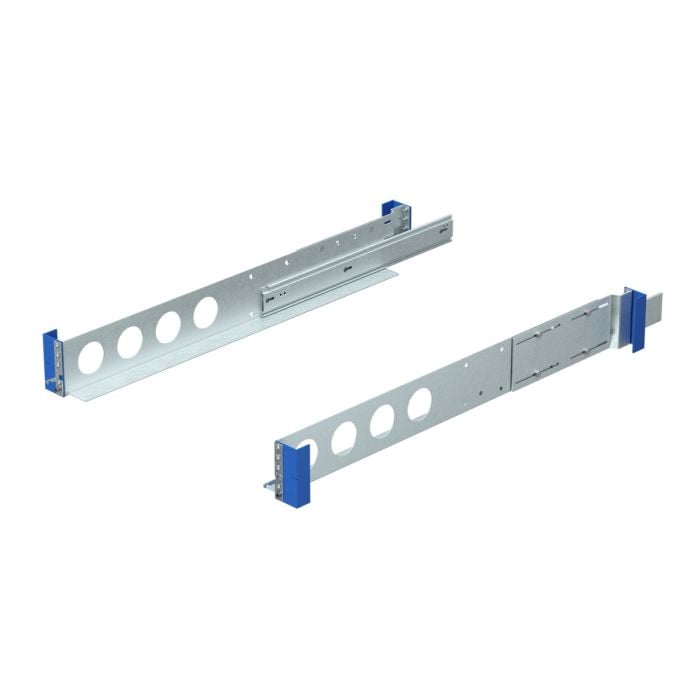

The RackSolutions 2U Cobra 135-A Rail for Dell provides a stable, sturdy and easy-to-install sliding rail solution for the Dell PowerEdge R760xd2. These slide rails are compatible with standard 19" EIA-310 server racks, and only mount in 4 post server racks with square, round, and #12 threaded holes. Designed to last longer than ball-bearing rail kits, the dry slides allow you to extend equipment in and out of your server rack for easier serviceability.

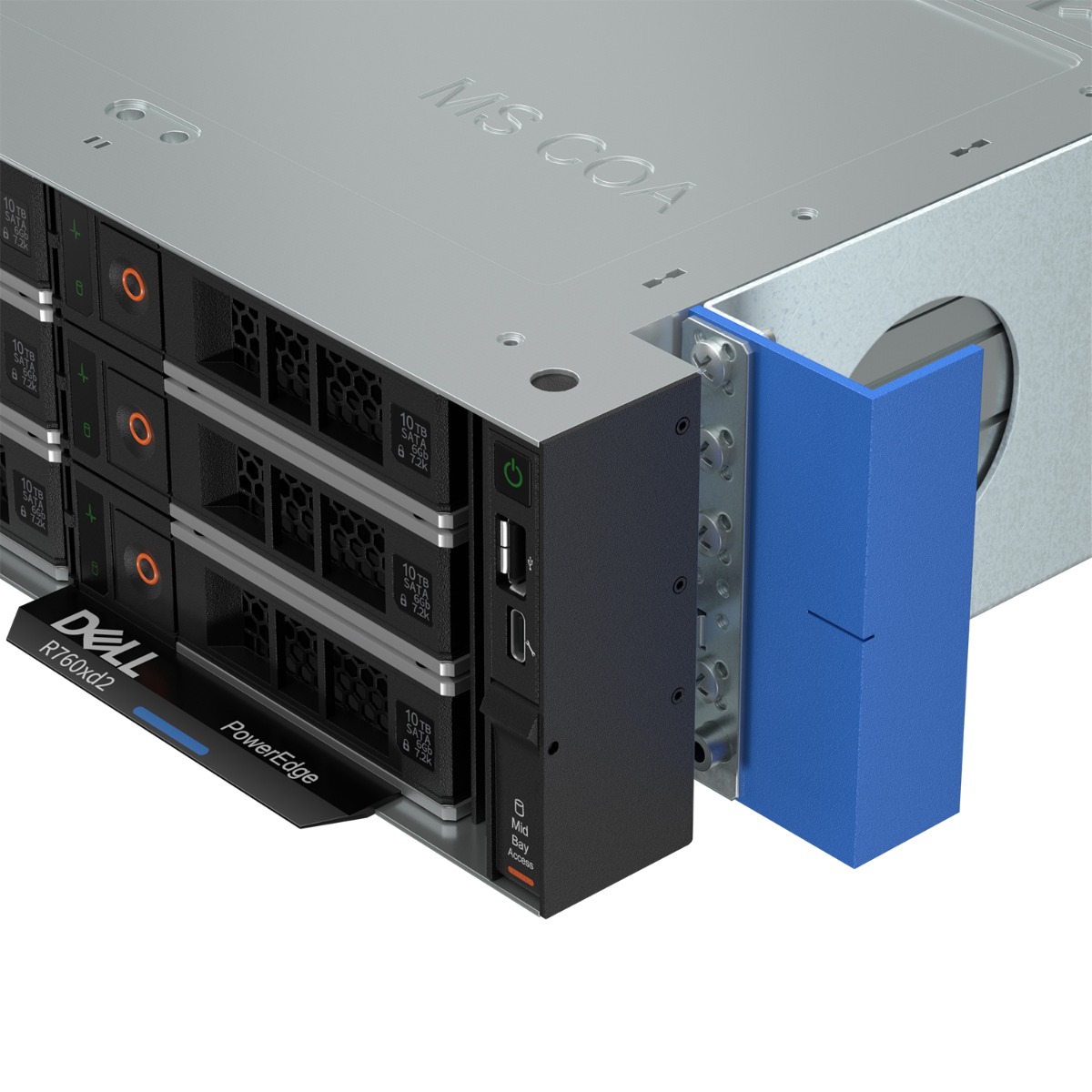

Dell Slam Latch Retaining Plate
The 2U retaining plate allows the Dell PowerEdge R760xd2 server to be secured in place when using our server rail. The retaining plate provides full securement at the front of the chassis,

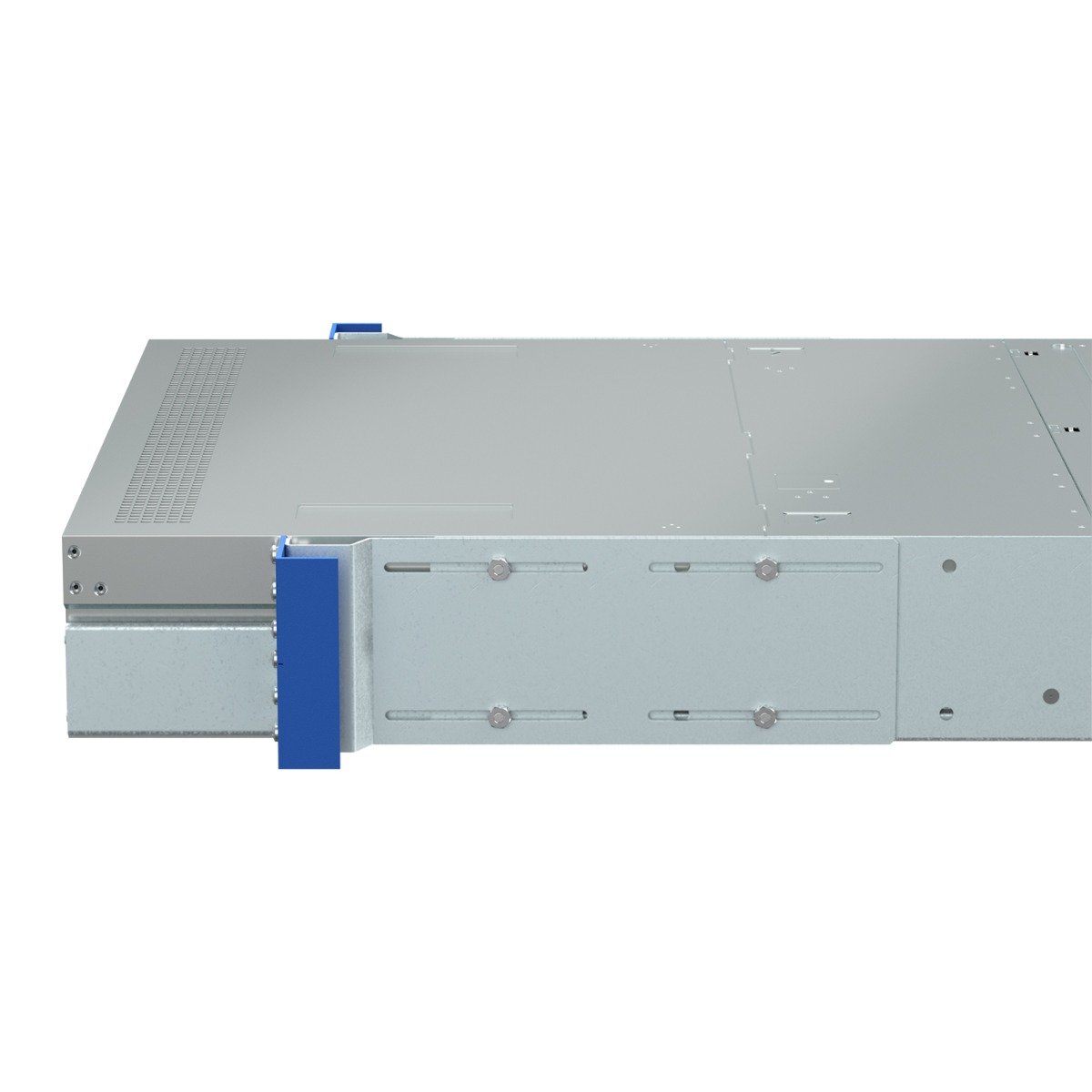

Rail Depth Does Not Exceed Server Depth
These server rails do not exceed beyond the depth of the Dell PowerEdge R760xd2 server. This ensures that the rail kit does not obstruct the rear rack equipment such as PDUs.
Dell Compatibility
The 2U Cobra 135-A Rail for Dell is specifically designed for the Dell PowerEdge R760xd2.
| BABA Compliant | Yes |
|---|---|
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
| UL Compliant | No |
| ETL Compliant | No |
| Weight (lbs) | 9.400000 |
| Country of Manufacture | United States |
| Included Hardware | Kit Contents:
|
| Compatibility | Dell |
| Fixed/Sliding | Sliding |
| Hole Type | Compatible with square, round, and #12 threaded holes racks |
