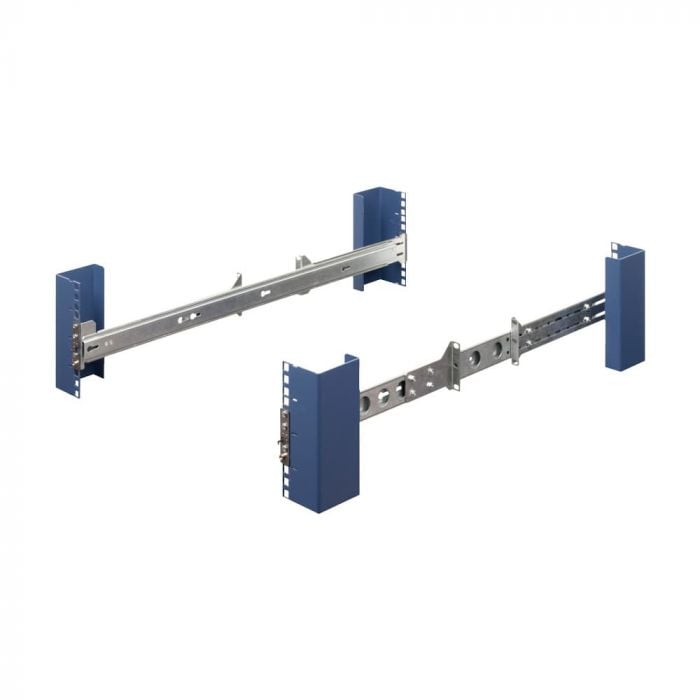

The Dell PowerEdge R520, R720,R730, R820 Dry Slide rails are an alternative solution for the Dell rail kit that is provided with the R510, R520, R530, R720,R720xd, R730, R820 and R7910 server. This rail kit is not a ball-bearing rail kit. Dell PowerEdge R720 Slide Rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3 - 32" (76.2 - 812.8 mm).
- Additional Information
Compatibility Dell PowerEdge R820 Dell PowerEdge R720 Dell PowerEdge R720XD Dell PowerEdge R730XD Dell PowerEdge R730 Dell PowerEdge R740 Dell PowerEdge R520 Dell PowerEdge R530 Dell PowerEdge R510 Dell PowerEdge R540 Rail OEM Dell Fixed/Sliding Sliding Tool-less/Standard Standard Included Hardware Assorted Assembly Notes Phillips head screwdriver required Rail Type Dry Slide Mounting Depth Range 4Post: 12 - 32" (304.8 - 812.8 mm) 2Post: 3 - 6" (76.2 - 152.4 mm) uprights Tech Notes The front mounting flange of the rail kit engages the Dell slam latch. Finish Zinc plated Rack Units 2U Rack Type 2 Post , 4 Post RoHS Compliant Yes Hole Type Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24 and metric M6
