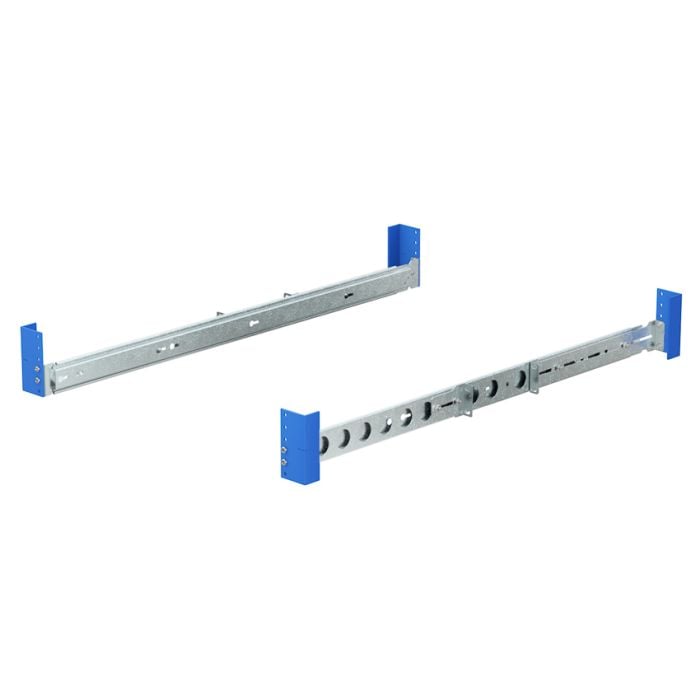

Dell PowerEdge R320, R420, R620 Slide Rails


Availability: In stock

Dell PowerEdge R320, R420, R620 Slide Rails
  • 122-2579 with server
    122-2579 with server
  • 122-2579 RackSolutions Dell R320, R410, R420, R620 Slide Rails
    122-2579 RackSolutions Dell R320, R410, R420, R620 Slide Rails

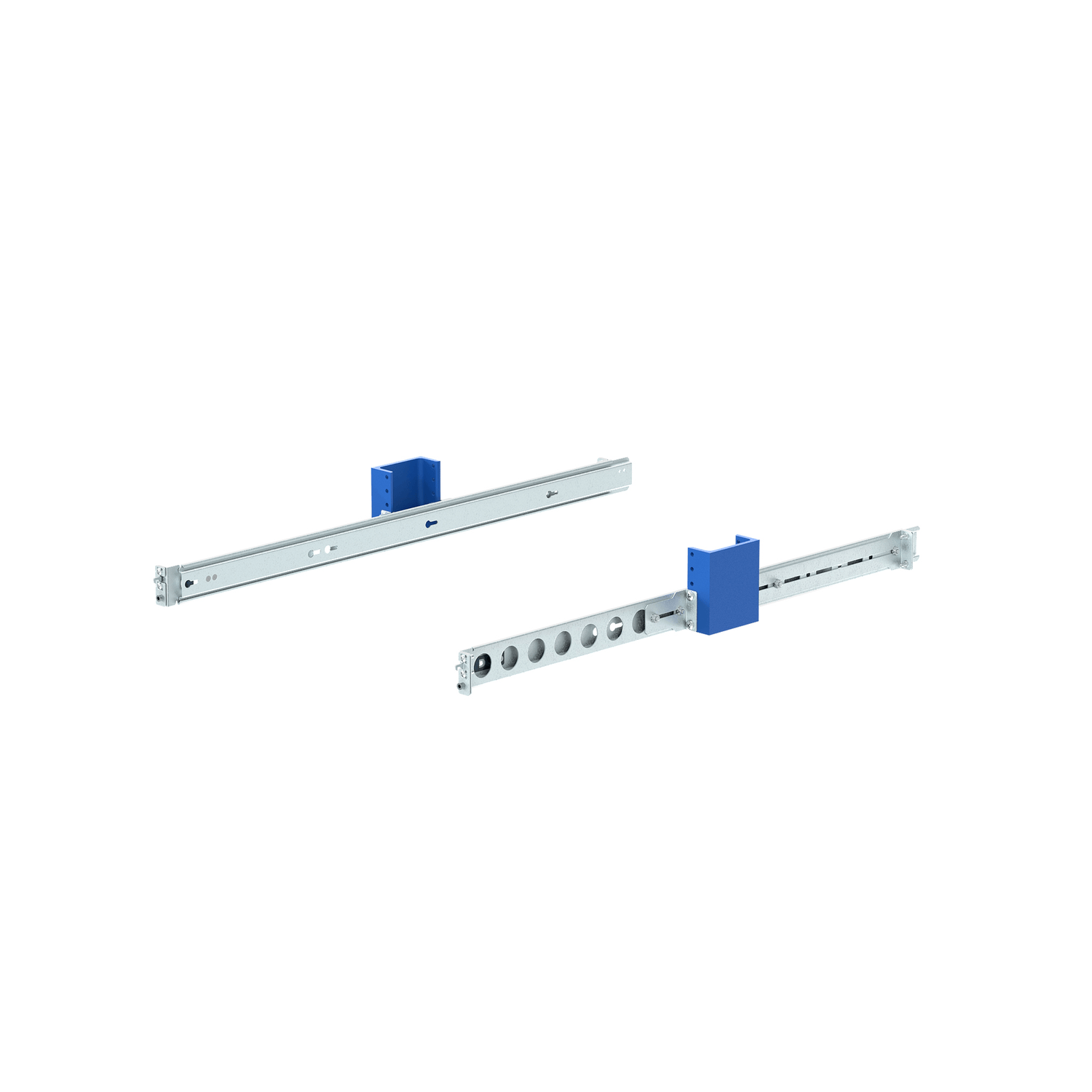

  • 122-2579 2 Post Rack
    122-2579 2 Post Rack
  • 122-2579 2 Post Center Mount
    122-2579 2 Post Center Mount

Fits any 4Post rack

  • Square, round, threaded holes.
  • Mounting depth of 3 - 30" (76.2 - 762 mm).
  • Dell rail kit not required.
  • Supports L, C, Z and ? rack upright shapes

Alternative to Dell R620 rail kit

  • High quality, dry slide rail kit

Fits any 2Post rack

  • Centre mounts in 2Post rack
  • Works with 3" - 6" uprights
Rack Solutions Promise
Product Name SKU Price Qty
Dell PowerEdge R320, R420, R620 Slide Rails 122-2579
Excl. VAT: €98.00 Incl. VAT: €114.66



The Dell PowerEdge R320, R420, R430, R620, R630, NX300, NX400, R230 Slide Rails can provide a stable, sturdy and easy-to-install sliding rail solution for Dell-compatible server racks. These slide rails are compatible with standard 19" EIA-310 server racks, and can work with either 2 post or 4 post models. In terms of server compatibility, the slide rails are designed for the Dell PowerEdge R320, R330, R410, R415, R420, R620, R630, R230, NX300 and NX400. The device is designed to fit in racks using either standard square, round or threaded holes, and feature an adjustable mounting depth between 3” - 30" (76.2 - 762 mm). This rail kit is not a ball-bearing rail kit.

Additional Information

Additional Information

Compatibility Dell PowerEdge R620
Dell PowerEdge R630
Dell PowerEdge R640
Dell PowerEdge R420
Dell PowerEdge R430
Dell PowerEdge R440
Dell PowerEdge R415
Dell PowerEdge R410
Dell PowerEdge R320
Dell PowerEdge R330
Dell PowerEdge R230
Dell PowerEdge NX300
Dell PowerEdge NX400
Dell EMC PowerEdge R440
Rail OEM Dell
Fixed/Sliding Sliding
Tool-less/Standard Standard
Included Hardware Assorted hardware included
Assembly Notes Phillips head screwdriver required
Rail Type Dry slide rails
Mounting Depth Range 3” - 30" (76.2 - 762 mm)
Rack Units 1U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type Compatible with round, square and threaded racks.
