Wall Mount for Dell OptiPlex 790 SFF and OptiPlex 9010 SFF

Availability: In stock

Wall Mount for Dell OptiPlex 790 SFF and OptiPlex 9010 SFF

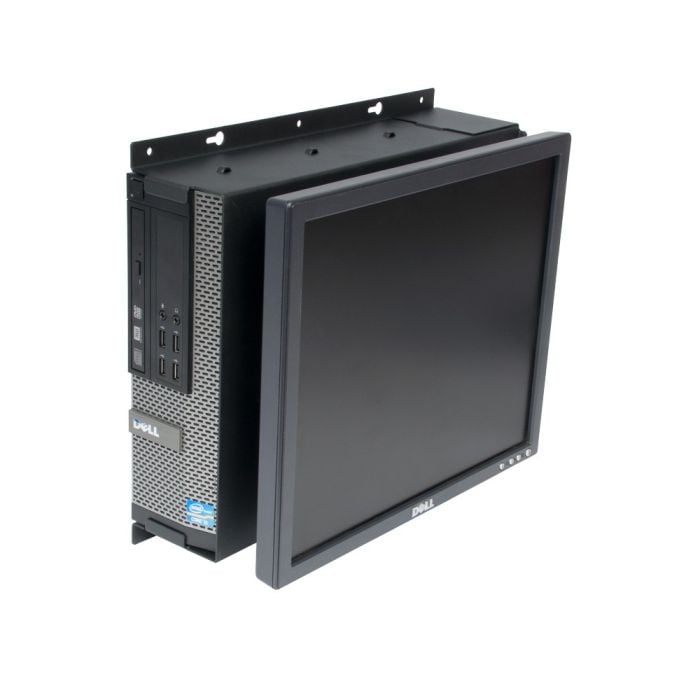

  • Front view - Dell 790 SFF Fixed Wall Mount - shown with PC & monitor
    Front view - Dell 790 SFF Fixed Wall Mount - shown with PC & monitor
    close
  • Rear view - Dell 790 SFF Fixed Wall Mount - shown with PC & monitor
    Rear view - Dell 790 SFF Fixed Wall Mount - shown with PC & monitor
    close
  • Front view - Dell 790 SFF Wall Mount - fixed version
    Front view - Dell 790 SFF Wall Mount - fixed version
    close
  • Front view - Dell 790 SFF Tilt Wall Mount - shown with PC & monitor
    Front view - Dell 790 SFF Tilt Wall Mount - shown with PC & monitor
    close
  • Rear view - Dell 790 SFF Tilt Wall Mount - shown with PC & monitor
    Rear view - Dell 790 SFF Tilt Wall Mount - shown with PC & monitor
    close
  • Front view - Dell 790 SFF Wall Mount - tilt version
    Front view - Dell 790 SFF Wall Mount - tilt version
    close

Wall Mount for Dell OptiPlex SFF PC Models

  • Compatible with Dell OptiPlex 790 SFF and 9010 SFF PCs and more
  • Creates a compact, wall mounted, all-in-one solution
  • 75 mm and 100 mm VESA hole pattern
  • Wall mount bracket can hold up to 50 lbs
  • Includes all mounting hardware
  • PC & Monitor not included

Customize to your needs

  • Compatible with most monitors
  • Tilt option available to position the monitor as needed
  • Combined with a keyboard wall mount provides a full wall mounted system
NOTE: See "Additional Information" below for compatibility. RackSolutions is a Dell Technology Partner
Rack Solutions Promise

Choose from "tilt" or "fixed" monitor options

Product Name SKU Price Qty
Dell Optiplex 790 SFF Wall Mount - Fixed Monitor 104-2323
Excl. VAT: €93.00 Incl. VAT: €108.81
Dell Optiplex 790 SFF Wall Mount - Tilt Monitor 104-2324
Excl. VAT: €104.00 Incl. VAT: €121.68
Description

Details

RackSolutions' Dell Optiplex 790 SFF Wall Mount allows you to mount Dell OptiPlex 790 Small Form Factor PCs, as well as other OptiPlex SFF models including the 9010 to the wall. The wall mount creates a compact all-in-one system by mounting both the PC and the monitor together on the wall. The mount also allows you to mount the PC horizontally under a table or desk if desired at the expense of the monitor mount. There are two options when choosing a Dell Optiplex 790 SFF Wall Mount, a version that allows your monitor to tilt and one that stays fixed. The wall mount is compatible with almost any flat panel display using 75 mm and 100 mm VESA hole patterns. All required mounting hardware is included with the Dell Optiplex 790 SFF Wall Mount.

Additional Information

Additional Information

Compatibility Optiplex 7010 SFF
Optiplex 7040 SFF
Optiplex 9010 SFF
Optiplex 3010 SFF
Optiplex 3020 SFF
Optiplex 7020 SFF
Optiplex 9020 SFF
Optiplex 790 SFF
Optiplex 990 SFF
Optiplex 980 SFF
Optiplex 960 SFF
Optiplex 740 SFF
Optiplex 745 SFF
Compatiblity Dell
Assembly Notes Requires Phillips screwdriver
Dimensions Fixed Monitor Outside Dimensions P/N: 104-2323
H x W x D = 13.26" (336 mm) x 15.41" (391 mm) x 4.06" (103 mm)

Tilt Monitor Outside Dimensions P/N: 104-2324
H x W x D = 13.26" (336 mm) x 15.41" (391 mm) x 5.09" (129 mm)
Finish Black, textured powder finish
RoHS Compliant Yes
Included Hardware
  • Monitor Hardware:
  • (8) Nylon spacers
  • (4) M4 x 10 mm pan head screws
  • (4) M4 x 18 mm pan head screws
  • (4) M4 x 25 mm pan head screws

  • Wall Mount Hardware:
  • (4) pan head screws
  • (4) pan anchors

  • Pivot Hardware:
  • (4) 8-32 flat head screws
  • Pivot hardware is only included with P/N: 104-2324
