2U 4Post Rackmount Sliding KVMs
Monitor, keyboard, trackpad
- Use your own 15 - 19" VESA (opens in a new tab) monitor
- 17 - 19" monitors available
- Space saving trackpad
- Keyboard plug is 54 1/2" long
- Cable included prerouted
- Cable management arm
- Compatible with KVM switches, USB, PS/2
NOTE: Belkin or Raritan KVM Switches are not compatible with these products.
Install in any 4Post, 19" rack
- Square, round, threaded holes
- Mounting depth 15.5 - 31.5" (394 - 800 mm) 2UKVM-125
- Mounting depth 13.5 - 29.5" (343 - 749 mm) 2UKVM-135
Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

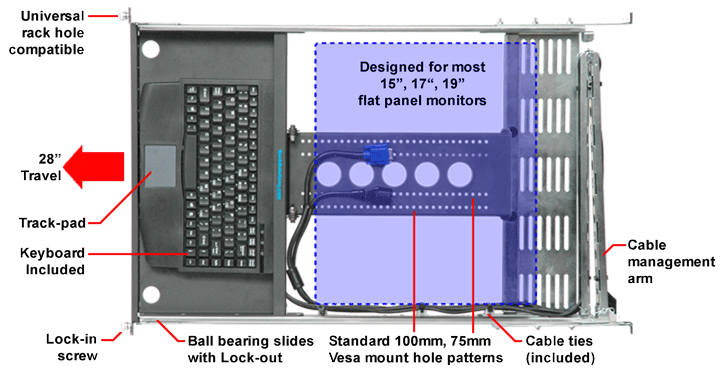

The RackSolutions Rackmount KVM lets users efficiently mount a keyboard and monitor in server racks with installation depths of 15.5" to 31.5" for the 2UKVM-125 and 13.5 - 29.5" (343 - 749 mm) for the 2UKVM-135.
The Rackmount KVM is designed to support monitors ranging from 15" to 19", making it a suitable platform for users to install their own flat panel computer monitors. For installation purposes, the monitor must also feature 75 mm or 100 mm holes. The product is available as a standalone rackmount or with a 17" or 19" monitor included.
The rail used to support the Rackmount KVM is a 28" travel server rack rail equipped with ball bearings for extra support and easy slide control.
The keyboard that comes with the device features a standard PS2 cable and a USB adapter. It also supports the full functionality of a standard rackmount keyboard and features a standard embedded number pad with numerical keys and 12 function keys. The keyboard's plug is 54 1/2 " long.
When you purchase the Rackmount KVM, USB Keyboard, without Monitor (2UKVM-125USB) OR the Rackmount KVM, Keyboard, without Monitor (2UKVM-125) the Rack Solutions USB Dongle for PS2 keyboard is included.

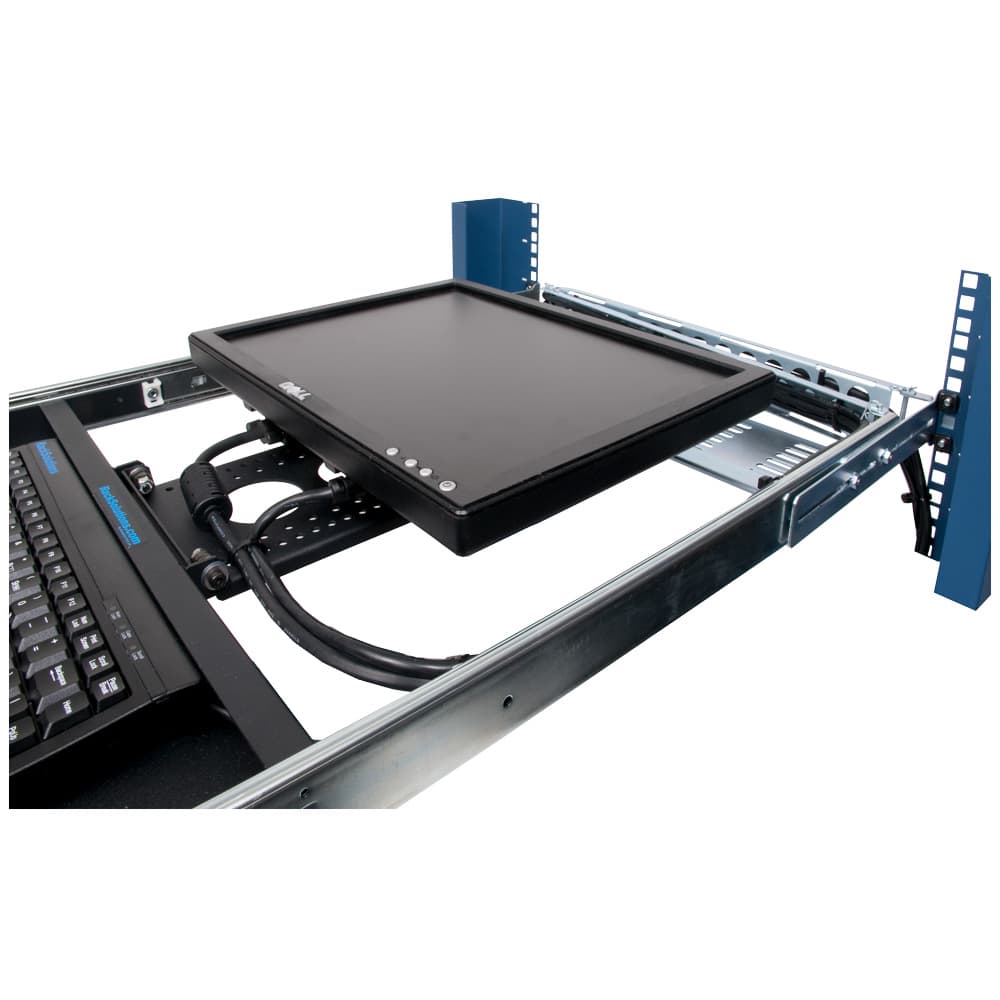

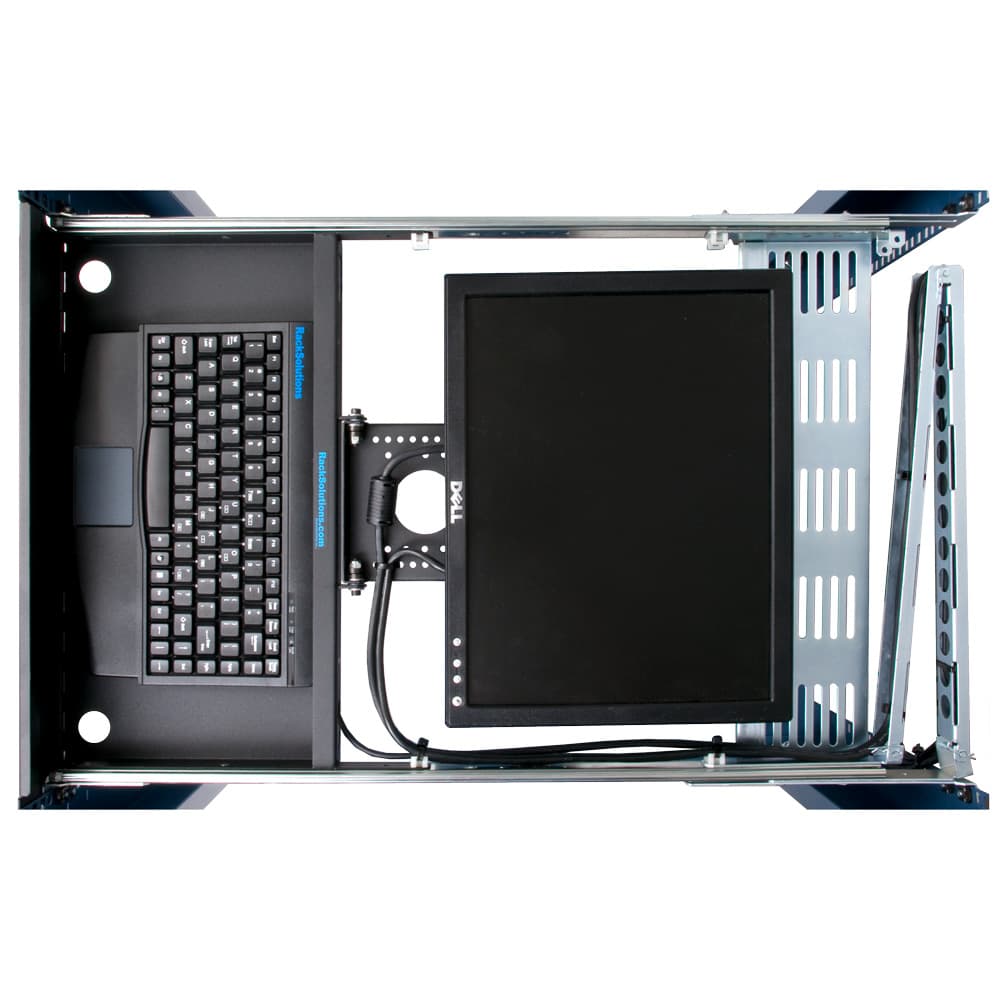

The Rackmount KVM is compatible with most KVM devices and will ship with the hardware necessary for installation. It comes fully-assembled with the keyboard and monitor cords already routed. The only assembly necessary is the monitor, which will not be assembled with the rest of the device when shipped.

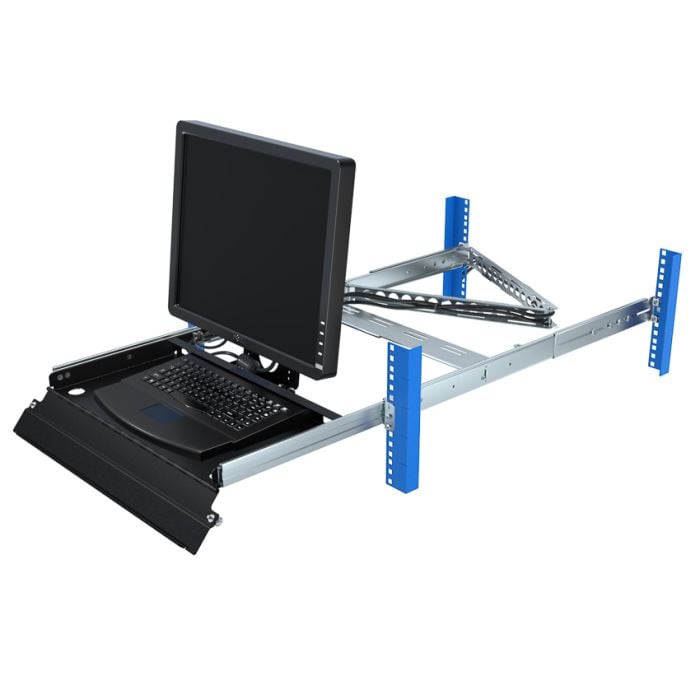

RackSolutions 2U KVM
Our 4 Post KVMs come with a keyboard and we offer a monitor to purchase separately.
2UKVM-135 & 2UKVM-125 KVMs

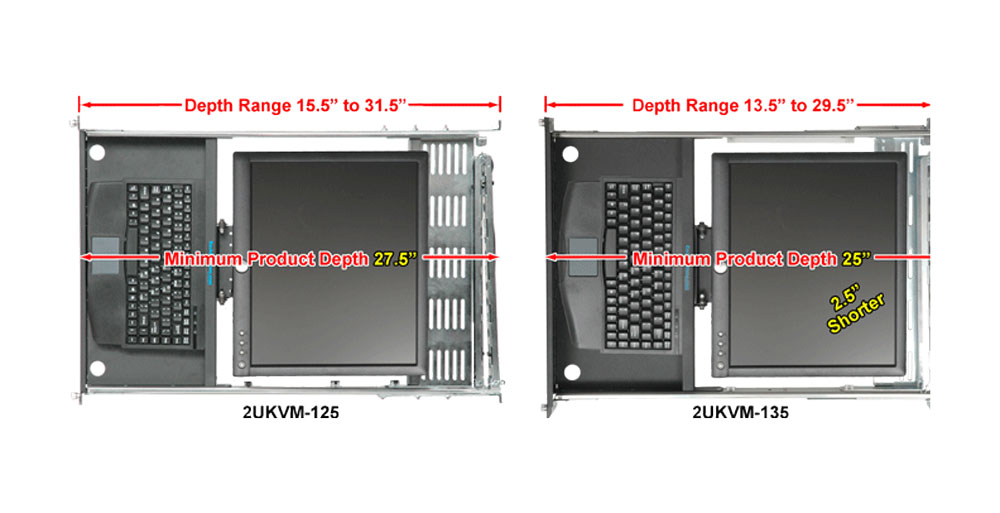

The 4 Post KVMs come in two different sizes of equipment depth. The 2UKVM-135 is the shallow version and the 2UKVM-125 allows for more room to mount a switch.
For more information on VESA Mounting Standards and what VESA stands for visit VESA Mounting Standards Explained (opens in a new tab).
| Country of Manufacture | United States |
|---|---|
| KVM Type | Keyboard and Monitor Mount |
| Mounting Depth Range | 15.5" - 31.5" (394 - 800 mm) 2UKVM-125 13.5 - 29.5" (343 - 749 mm) 2UKVM-135 |
| Rack Type | 4 Post Rack |
| Overall Installation Depth | 31" Minimum (787 mm) 2UKVM-125 26" minimum (660 mm) 2UKVM-135 |
| Cable Management | Articulated cable management arm |
| Hole Type | Compatible with the industry standard 3/8" square hole racks Cage nuts included for square hole mounting Compatible with all standard round (non-threaded) holes Compatible with all standard threads including 10-32, 12-24, and Metric M6 |
| Included Hardware | 10-32 and 12-24 Screws Cage nuts provided for square hole racks |
| Assembly Notes | Fully assembled, except for optional monitor Power, VGA, and keyboard cables are pre-routed |
| Rail Type | 28" travel (394 mm) Ball bearing slides |
| Fixed/Sliding | Sliding |
| Monitor Specs | 17” (432 mm) monitor specs Monitor is Dell E170S (optional) Height 15" x Width 14.8" 1280 x 1024 pixels @ 60Hz max resolution TFT active matrix 250 cd/m² brightness 800:1 image contrast ratio VGA signal input 19” (483 mm) monitor specs Dell E190S (optional) Height 16.2" x Width 16.3" 1280 x 1024 pixels @ 75Hz max resolution TFT active matrix 300 cd/m² brightness 800:1 image contrast ratio VGA signal input |
| Keyboard Specs | PS/2 or USB USB Interface requires the use of an adapter (included) 88/89 keys have the functionality of a 104/105 rack mount keyboard Embedded numeric keypad and 12 dedicated function keys |
| VESA Mount | 100 mm or 75 mm VESA (opens in a new tab) hole patterns (required) Most LCD display have 4 VESA mounting holes on the back The VESA holes may be hidden by the display stand |
| Monitor Thickness | LCD display thickness: 2.75" (70 mm) maximum Exceeding this thickness will require more than 2U of rackmount space |
| Monitor Width | LCD display width: 17.5" (444 mm) maximum 15", 17" or 19" (381 mm, 432 mm or 483 mm) LCD display will typically fit |
| Dell Part Number | 2UKVM-125USB: AB131755 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Synnex Part Number | 2UKVM-125USB - 5182298 |
| Ingram Part Number | 2UKVM-135 - 8RP543 2POST-2UKIT/2 - 8W3425 2UKVM-125USB - 2CR164 |
| RoHS Compliant | Yes |
| TAA Compliant | Yes |
