3U 2Post Cantilever Shelf for 6 Apple Mac Mini (M4, 2024)

€305.00 €260.68
Quote Now / Temporarily Out of Stock
SKU
107-9097

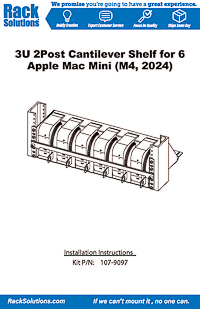

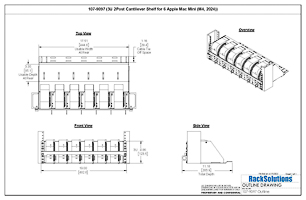

Resources
Compatibility

Works in 2 Post and 4 Post Racks

  • Built-in airflow management allows for efficient cooling and prevents thermal buildup
  • Integrated button pusher for convenient power activation
  • Cable lances and obrounds help to manage and organize cables along the shelf
  • Made in the USA

Rack Mount 6 Mac minis Per Shelf

  • Compatible with Apple Mac mini (M4, 2024) and Apple Mac mini (M4 Pro, 2024)
  • Usable shelf depth for additional accessories : 3.35” (85.1 mm)
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for compatibility.

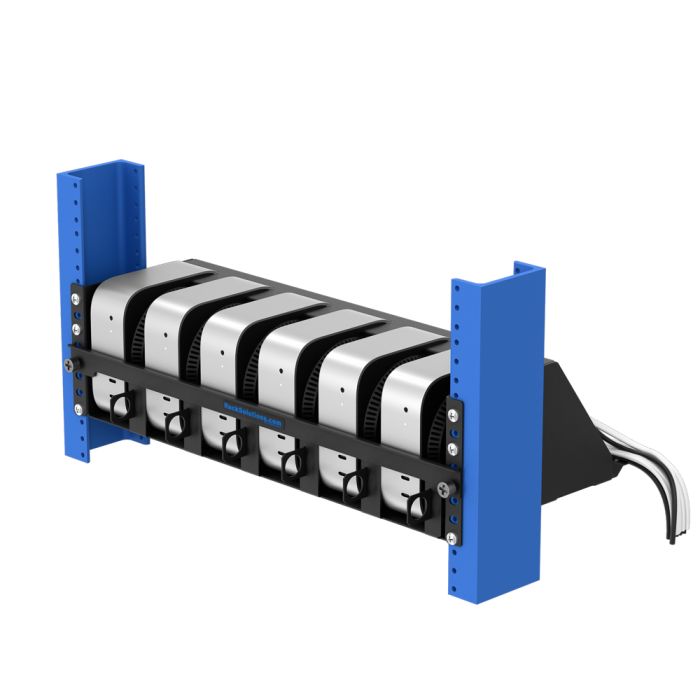

The RackSolutions 3U 2Post Cantilever Shelf for Apple is designed to store and organize your Mac mini (M4 or M4 Pro) devices in place. Constructed from 16 GA steel, it can be mounted in most standard 19 inch EIA standard relay racks, telco racks, and 4 post racks. This shelf features slots for up to 6 Mac minis. To secure each device properly, align it with one of the slots and insert it until it’s fully seated and flush with the shelf surface.

Additionally, its ventilated, fixed design maintains efficient airflow and heat dissipation. With the cable lances and obrounds, these built-in slots allow you to neatly route your cables along specific paths, preventing tangling and clutter. This makes your overall setup much cleaner and easier to maintain.

The shelf has a total depth of 11.18" (283.9 mm), with 3.35" (85.1 mm) of usable rear space. This extra space is ideal for external SSDs or other additional accessories that enhance the deployment of your Mac minis. External SSDs offer extra storage for project files and makes it easier for customers to transfer and carry over data or files as needed. The built-in cable lances allow these accessories to be securely strapped in place, keeping everything organized. It’s an efficient solution for deployments where portability and additional storage are needed.

Built to meet the needs of diverse environments, this shelf is engineered to work across various industries. For media and post-production studios, it supports render farms and editing suites. In educational and university IT departments, it supports computer labs, developer environments, and virtualization setups.

For colocation and hosting providers, it supports staging and testing environments. It also offers retail, theater, and hospitality venues seamless management of digital signage and kiosks. And lastly, it provides an efficient, scalable solution for Mac mini clusters used in app development, machine learning, or compact server deployments. Each use case benefits from its space-saving design, scalability, and ease of deployment.

Built-in Airflow Management (desktop image)Built-in Airflow Management (mobile image)

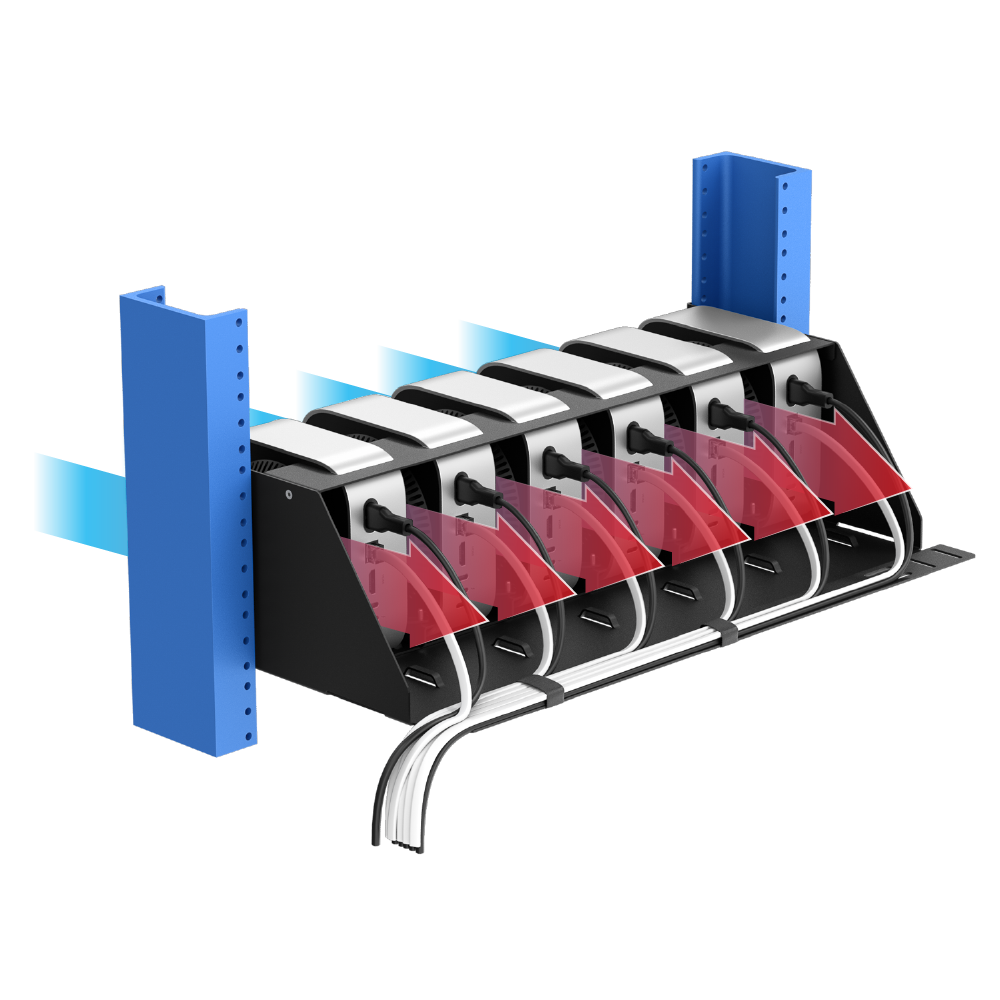

Built-in Airflow Management

The 3U 2Post Cantilever Shelf is expertly designed with a ventilated surface that enhances cooling and thermal performance. With no interference to the cold air intake and exhaust ports, it ensures optimal airflow by drawing cool air in from the front and efficiently expelling hot air out the back. Even during intense tasks, your Mac minis will stay cool and perform at its best.

Power Button Activation (desktop image)Power Button Activation (mobile image)

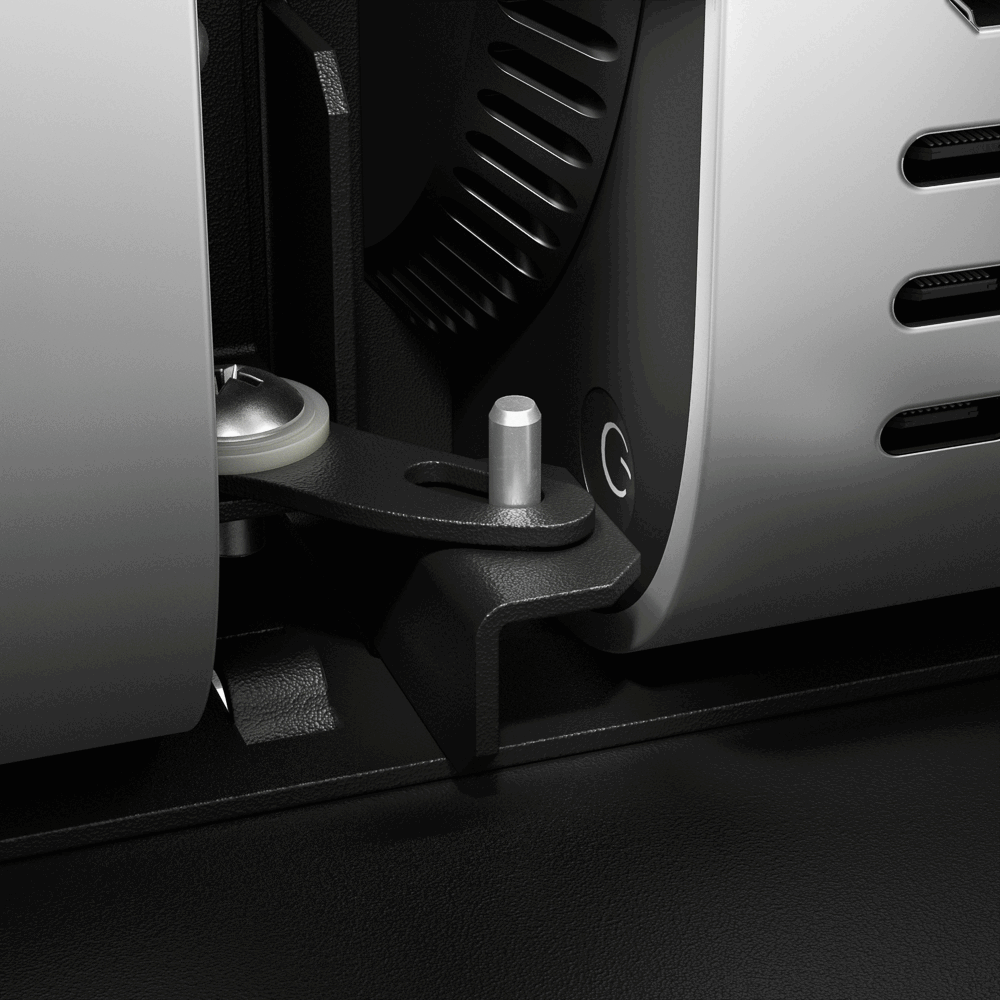

Power Button Activation

Each shelf slot includes an integrated button pusher for convenient power access. To turn on your Mac mini, pull and hold the tab for that slot until the device's power indicator light turns on or you hear the startup sound. To power the device down, repeat the process until the light turns off or the shutdown sound is heard, no need to remove the device.

Built-in Cable Organization (desktop image)Built-in Cable Organization (mobile image)

Built-in Cable Organization

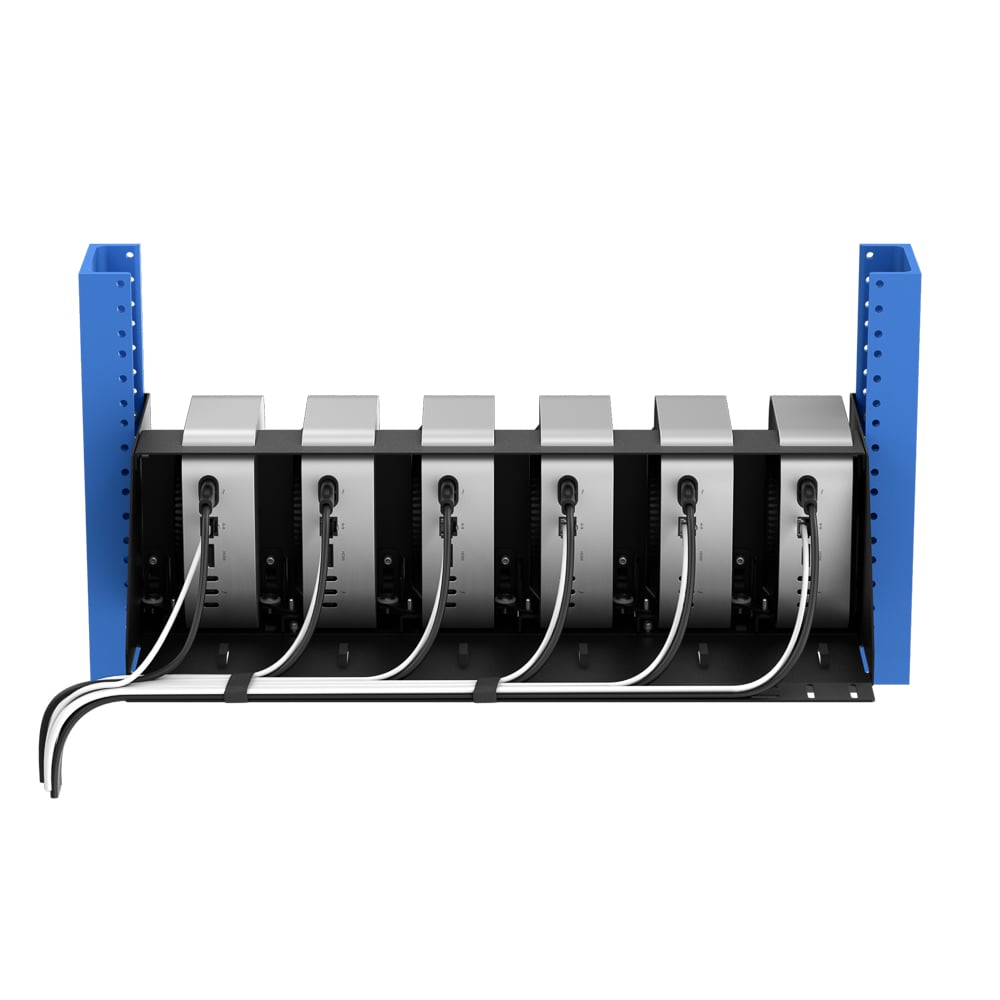

The cantilever shelf includes integrated tie points, which designate the cable pathways for cable organization. This allows you to easily route the cables and prevent tangling. Proper cable organization also keeps airflow pathways clear, reducing heat buildup and allowing cooling systems to work more efficiently. This is essential for maintaining optimal performance in high-density rack environments.

More Information
Made In America Yes
BABA Compliant Yes
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Weight (lbs) 10.100000
Country of Manufacture United States
OEM Compatibility Apple
Generation 2024
Product Line Mac mini
U Height 3U
Rack Type 2 Post , 4 Post
Rack Hole Type 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole
Shelf Depth 7"- 18" (178mm-457mm)
Fixed/Sliding Fixed
Finish Black Powder Coat
Material Cold-Rolled Steel

Kit Contents:

  • (1) 2-Post Cantilever Shelf
  • (1) Front Stop
  • (1) 50" Velcro Wrap
  • (3) Zip Ties

Rack Mount Hardware:

  • (8) 10-32 x .500 Pan Head Screw
  • (8) 12-24 x .500 Pan Head Screw
  • (8) 12-24 x Square Nut
  • (8) 12-24 x Cage Nut
  • A3238
  • A3239
