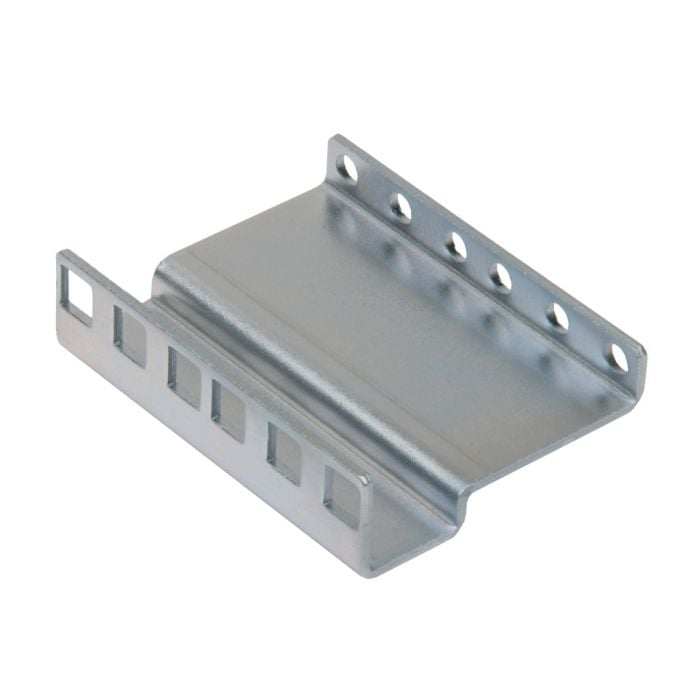

Please note that these do not work with L shaped uprights.RackSolutions' Adapter Kits provide a solution to the common problems associated with installing rackmount servers in many different server racks. These adapter kits allow for considerable adjustment in the installation depth of the server rack. If the server rack is too deep or too shallow, these adapter kits will solve the problem. If your server rack has round holes and your slide rails require square holes, these kits will convert round holes to square holes.
Extension for shallow RackFor shallow depth racks, our brackets can be used for rails that extend out past the uprights.
Extension for Deep RacksIf the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.
What's the mounting depth?First, measure the mounting depth of your server rack, to determine the size of bracket that you will need.
Bracket InstallationInstall brackets (hardware not included) in the space where the rack needs to be extended or reduced.
- Additional Information
Finish Zinc plated Tech Notes
- Rack type:
- 4post cabinets (Chatsworth MegaFrame, Great Plains, Shark and most other racks)
- Double 2Post frame (Homaco, APC, and others). Recommended double relay rack spacing
- Rack upright depth:
- 23.8" - 33.2" (measured from front to back of the rack's mounting surface)
Included Hardware 12-24 & 10-32 cage nuts & screws Assembly Notes This kit has an assortment of brackets that can be configured in multiple ways to solve most common installation issues RoHS Compliant Yes Hole Type
- EIA 3/8" square holes (9.5 mm) to attach to rack
- Round holes or 12-24 threaded holes to attach to Rapid Rail
Rack Post Shape 2UBRK-059: C shape
2UBRK-200: ? shape
2UBRK-270: ? shape
2UBRK-290: C shape
2UBRK-350: ? shape What are L, C, Z and ? rack upright shapes?
Bracket Dimensions 2UBRK-059: 0.59" (15 mm)
2UBRK-200: 2.00" (50.8 mm)
2UBRK-270: 2.70" (68.6 mm)
2UBRK-290: 2.90" (73.7 mm)
2UBRK-350: 3.50" (88.9 mm)
TAA Compliant Yes
