2U Adapter Brackets

Availability: In stock

2U Adapter Brackets
  • 2UBRK-350-FULL - 2U Adapter Brackets
    2UBRK-350-FULL - 2U Adapter Brackets
    close
  • 2UBRK-059-FULL - 2U Adapter Brackets
    2UBRK-059-FULL - 2U Adapter Brackets
    close
  • 2UBRK-100-FULL - 2U Adapter Brackets
    2UBRK-100-FULL - 2U Adapter Brackets
    close
  • 2UBRK-290-FULL - 2U Adapter Brackets
    2UBRK-290-FULL - 2U Adapter Brackets
    close
  • 2UBRK-200-FULL - 2U Adapter Brackets
    2UBRK-200-FULL - 2U Adapter Brackets
    close

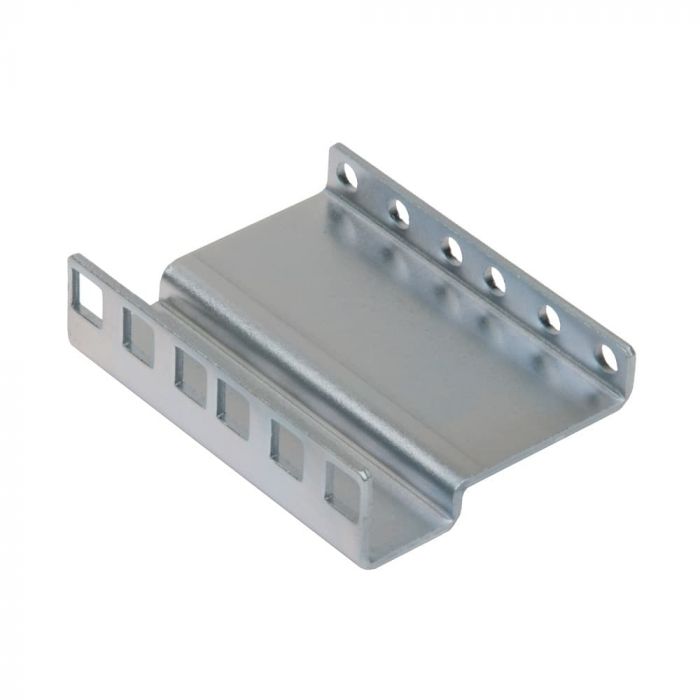

  • 2UBRK-270-FULL - Mounted on rear rack post
    2UBRK-270-FULL - Mounted on rear rack post
    close
  • 2UBRK-270-FULL - 2U Adapter Brackets
    2UBRK-270-FULL - 2U Adapter Brackets
    close
  • 2UBRK-270-FULL - Mounted on front rack post
    2UBRK-270-FULL - Mounted on front rack post
    close

Fits any 4Post cabinet, open frame rack

  • Converts round holes to square holes
  • 5 depths available
  • Brackets are sold as singles
  • Dell, HP, IBM compatible

Adjust installation depth of server rack

  • Work with Dell Rapid Rails
  • Provides solution for common install issues
Rack Solutions Promise

Requires 3/8" Screws- Hardware not included (Brackets sold as individuals)

Product Name SKU Price Qty

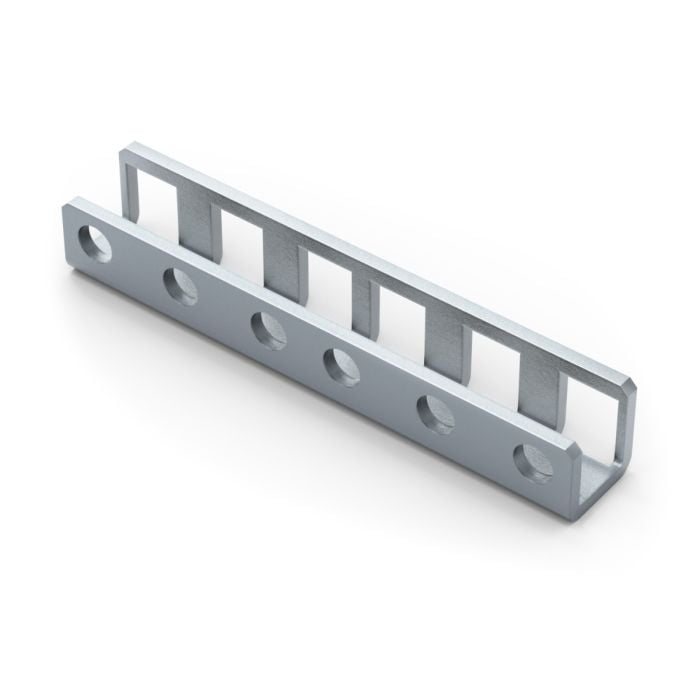

2U Bracket, 2-bends, 0.59" wide 2UBRK-059-FULL
Excl. VAT: €8.25 Incl. VAT: €9.65

Hardware not included (Brackets sold as individuals)

Product Name SKU Price Qty
2U Bracket, 4-bends, 2.00" wide 2UBRK-200-FULL
Excl. VAT: €8.25 Incl. VAT: €9.65
2U Bracket, 4-bends, 2.50" wide 2UBRK-250-FULL
Excl. VAT: €8.25 Incl. VAT: €9.65

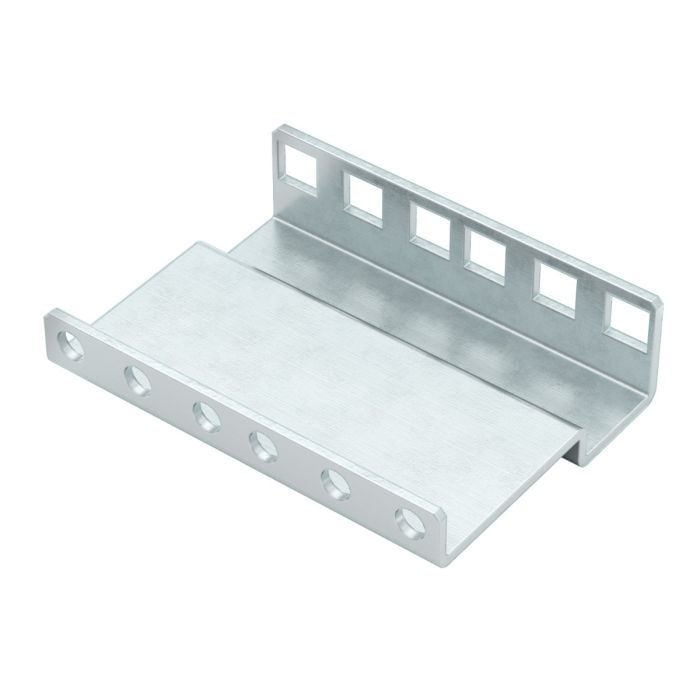

2U Bracket, 4-bends, 2.70" wide 2UBRK-270-FULL
Excl. VAT: €8.25 Incl. VAT: €9.65
2U Bracket, 2-bends, 2.90" wide 2UBRK-290-FULL
Excl. VAT: €8.25 Incl. VAT: €9.65
2U Bracket, 4-bends, 3.50" wide 2UBRK-350-FULL
Excl. VAT: €8.25 Incl. VAT: €9.65
Description

Details

Please note that these do not work with L shaped uprights. RackSolutions' adapter brackets provide a solution to two common issues associated with installing rackmount equipment in a variety of different server racks that may differ in size and hole types. These adapter brackets are able to adjust the installation depth of the server rack. For example, if the rack is too deep or shallow to handle a piece of equipment, the brackets can be used to increase, or decrease the depth of the rack, depending on which side of the upright they are installed. In addition to adjusting the depth of the rack, they can also convert round holes into square holes, allowing you to install tool-less equipment such as Dell Rapid Rails.

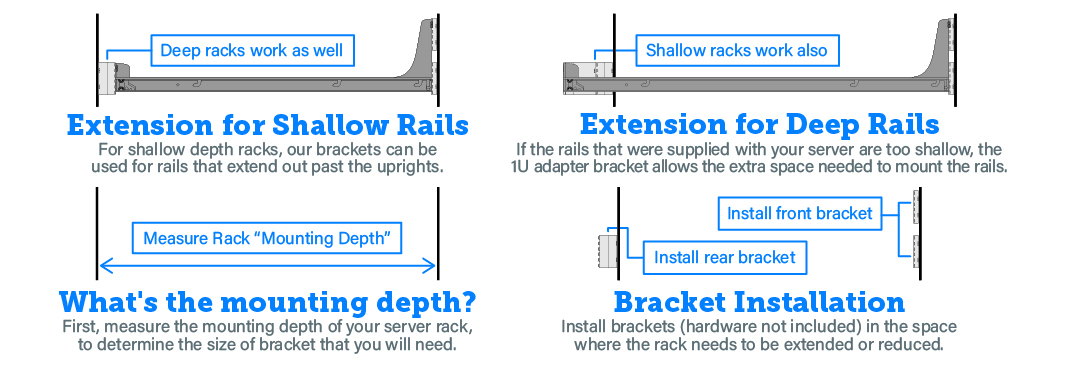

  • Shallow Rack Extension
    Extension for shallow Rack
    For shallow depth racks, our brackets can be used for rails that extend out past the uprights.
  • Server Rail Extension
    Extension for Deep Racks
    If the rails that were supplied with your server are to shallow, the 1U adapter bracket allows the extra space needed to mount the rails.
  • Measure Mounting Depth
    What's the mounting depth?
    First, measure the mounting depth of your server rack, to determine the size of bracket that you will need.
  • Install brackets
    Bracket Installation
    Install brackets (hardware not included) in the space where the rack needs to be extended or reduced.
Additional Information

Additional Information

Hole Type Compatible with the industry standard 3/8" square hole racks.
Compatible with all standard round (non-threaded) holes.
Compatible with all standard threads including 10-32, 12-24 and metric M6.
RoHS Compliant Yes
