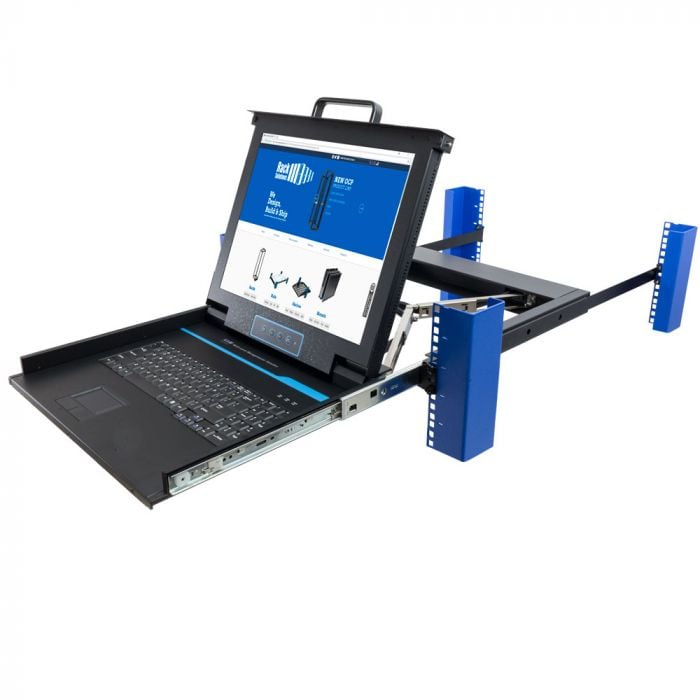

RackSolutions 1U KVM 1 Port Console is perfect for controlling a single system within a server rack using a 15 pin VGA port or a large system with the addition of a KVM switch. The entire console integrates a 17" LED monitor, a 106-key keyboard, and touchpad within a single rack unit. The KVM console easily slides in and out of the rack on high quality ball bearing slide rails and locks in place when opened or closed. The integrated cable management feature keeps the sleeved cables from getting tangled. When the console is closed, it is set to auto-sleep to save power as well as increase the life of the product and easily folds away into 1U when not in use.
- Additional Information
Mounting Depth Range 18.3 - 33.4" (465 - 850 mm) Rack Type 4 Post Rack Tech Notes Product dimension (W × D × H) 17.64" x 18.54" x 1.67" Power Input-100V-240V Cable Management Cable management arm included Included Hardware Packaging Contents: User Manual 1pc Power cord 1 pc Rack mount kit 2 pcs KVM Signal Cable: KVM Port 15 pin HDB male Server or PC Port: 15 pin VGA Port Rail Type Ball-bearing slide Fixed/Sliding Sliding Monitor Specs 1280 x 1024 @ 75 Hz Keyboard Specs 106-Key US Standard Keyboard RoHS Compliant Yes
