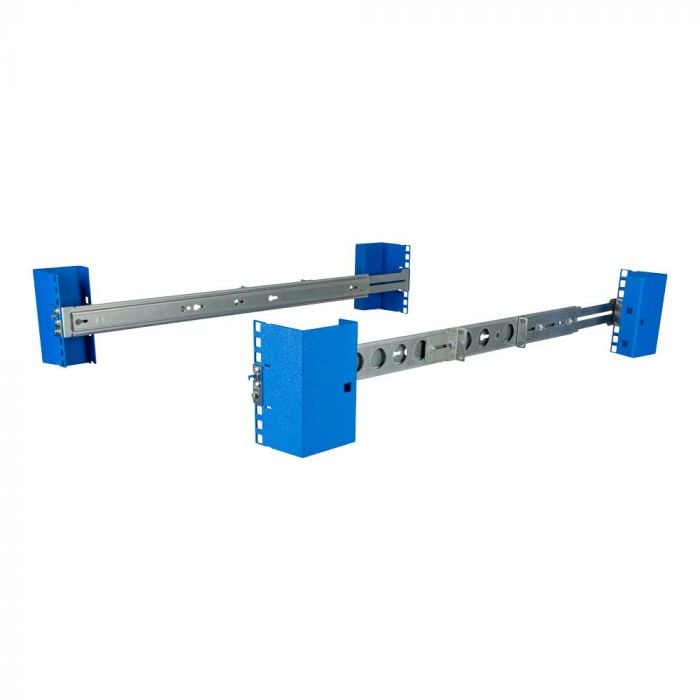

1U Cobra 155-A Dry Slide Rail for Dell
Designed for shallow depth racks
- Inner rails are shortened so they don’t stick out of shallow depth racks
- Works with square, round, and threaded holes
- Dry slide rails offer greater longevity
- Works with all EIA 19” standard racks
- Learn about the Cobra product line
Mount in a 2 or 4 post rack with any hole type
- Center mount on 2 post racks
- Supports L, C, and ? rack upright shapes
- Mounting depth:
- 4 Post: 20” - 30" (596mm - 762mm)
- 2 Post: 3” - 6” (76.2mm - 152.4mm)
Compatible with these servers:
- Dell PowerEdge R240
- Dell PowerEdge R210
- Dell PowerEdge R340
- View entire compatibility list
The Dell PowerEdge R210 and R240 are known as “short depth servers” and we designed a rail to capitalize on that fact. Dry slide rails designed for full length servers typically have excess inner rail in the back. Since the R210 and R240 are shorter servers, the inner rails of this kit can be shortened so that they will fit within low depth racks.
Unlike OEM Dell rails, these will work with square, round or threaded hole racks out of the box. It also can be converted between 2 post and 4 post and four post mounting orientations. The rail is made from 18 Ga galvanized steel for long lasting, high quality experience.
Inner rail protrudes on the 122-2579 (Cobra 79)
Inner rail stays within outer rail on the 122-7650 (Cobra 50)
| Compatibility | Dell PowerEdge R6515 Dell PowerEdge R210 Dell PowerEdge R210 II Dell PowerEdge R220 Dell PowerEdge R230 Dell PowerEdge R240 Dell PowerEdge R250 Dell PowerEdge R320 Dell PowerEdge R340 Dell PowerEdge R410 Dell PowerEdge R415 Dell PowerEdge R420 Dell PowerEdge XR2 Dell Precision 3930 Rack Compatible with most Dell EMC VxRails |
|---|---|
| Dell Part Number | 122-7650- AB490271 For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page. |
| Ingram Part Number | 122-7650 - 8UD720 |
| Rail OEM | Dell |
| Fixed/Sliding | Sliding |
| Tool-less/Standard | Standard |
| Included Hardware | Assorted Hardware Included |
| Assembly Notes | Phillips head screwdriver required |
| Overall Installation Depth | 20" - 30" (508 - 762mm) |
| Rail Type | 2 Post, 4 Post |
| Mounting Depth Range | 4 Post: 20” - 30" (508 - 762 mm) 2 Post: 3” - 6" (76.2 - 152.4 mm) |
| Finish | Galvanized |
| Material Type | Galvanized 18 Gauge Steel |
| Rack Units | 1U |
| Rack Type | 2 Post , 4 Post |
| RoHS Compliant | Yes |
| Hole Type | Compatible with round, square and threaded racks. |
| TAA Compliant | Yes |
Download 1U Cobra 155-A Dry Slide Rail for Dell (122-7650) Installation Instructions
Download 1U Cobra 155-A Dry Slide Rail for Dell (122-7650) 4 Post Mounting - Dimensional Drawings
Download 1U Cobra 155-A Dry Slide Rail for Dell (122-7650) 2 Post Flush Mounting - Dimensional Drawings
Download 1U Cobra 155-A Dry Slide Rail for Dell (122-7650) 2 Post Center Mounting - Dimensional Drawings
