Modular Rack Shelf for Device Test Labs
For Enterprise Mobile App Testing and Other Consumer Devices
When developing apps, software, and websites to work across a wide array of electronic devices, it's important to test on real devices. Modular Rack Shelves are ideal solutions for a small in-house mobile test lab setup or an enterprise device farm for cloud-based mobile app testing.
Our Modular Shelves maximize space and improve organization of test labs by deploying hardware in a server rack, rather than using temporary improvised solutions. Utilizing these dynamic shelves, rather than laying your devices around, makes more efficient use of space. This allows you to house multiple devices on a single shelf with flexible options based on your needs, increasing density and scalability.
1U Modular Device Testing Sliding Rack Shelf 28in Depth
SKU: 115-6933
The 1U Modular Sliding Shelf 28" allows the most flexibility and space possible in a modular shelf. With this model, you will be able to choose from the full selection of brackets that we offer. Ball-bearing slide rails are utilized for increased accessibility, making for faster and easier serviceability of the hardware.
2U Cantilever Modular Shelf 13in Depth
SKU: 107-7604
The 2U Cantilever Modular Shelf 13" offers a flexible solution for both 2 post and 4 post server racks. This model can be used for lighter equipment or devices that don’t require full-depth rack space. Its open design is ideal for scenarios where space is limited or requires rear access. Additionally, the shelf doesn't occupy internal rack space, allowing for easy mounting in unused U spaces on the rear uprights of 4 post racks, making it a great option for managing extra devices or components like power cables.

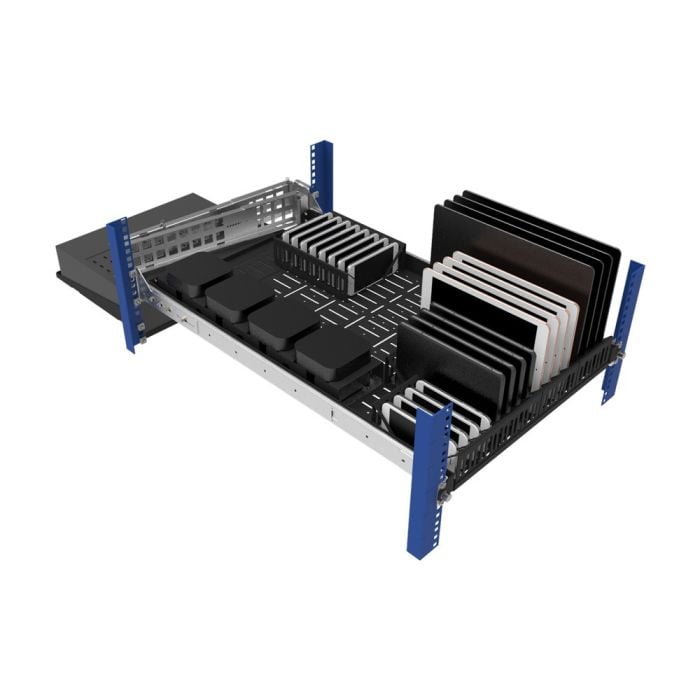

Combined Solution
SKU: 115-6933 and 107-7604
Combining both the 4 post and cantilever Modular Shelf is a powerful way to manage extra devices or components that you might need for testing. When using both shelves as a pair, you can mount the cantilever shelf above, below, or behind the 4 Post Shelf.
| Made In America | Yes | BABA Compliant | Yes | RoHS Compliant | Yes | TAA Compliant | Yes | UL Compliant | No | ETL Compliant | No | Country of Manufacture | United States | OEM Compatibility | Apple, Dell, HP / HPE, Lenovo, Universal | U Height | 1U, 2U | Rack Type | 2 Post , 4 Post | Rack Hole Type | 10-32 Thread, 12-24 Thread, M6 Thread, Square Hole | Shelf Type | Vented | Shelf Depth | 25"- 30" (635mm-762mm) | Fixed/Sliding | Fixed, Sliding | Finish | Black, Textured Powder Coat | Material | Steel | Synnex Part Number | 115-6933 - 6451840 |
|---|
Kit Contents:
- (1) Modular Shelf
- (2) Ball Bearing Slides (Left & Right)
- (2) Rear Rail Brackets (Left & Right)
- (1) Cable Management Attachment
Assembly Hardware:
- (8) 8-32 x .375 Truss Head Screws
- (8) 8-32 Keps Nuts
- (2) 8-32 x .312 Flat Head Screws
Mounting Hardware:
- (9) 10-32 x .500 Pan Head Screw
- (9) 12-24 x .500 Pan Head Screw
- (9) 12-24 x Square Nut
- (9) 12-24 x Cage Nut
Assembly Components:
- (1) Left Rail
- (1) Right Rail
- (2) Retainer Brackets

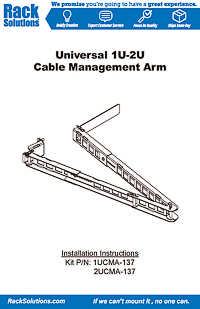

Cable Arm Hardware:
- (1) Cable Arm Assembly
- (2) CMA Extension Brackets (L/R)
- (1) Hook and Loop
Components:
- (1) Shelf
Mounting Hardware:
- (4) 10-32 Pan Head Screws
- (4) 12-24 Pan Head Screws
- (4) 12-24 Cage Nuts
- (4) 12-24 Square Nuts
Cable Management Arm Hardware:
- (6) 12" Zip Ties
- (1) 50" Hook and Loop
- (1) Plastic Lanyard 6"
- (1) Chassis Bracket with Adhesive
Rack Mount Hardware:
- (3) 12-24 Square Nuts
- (3) 10-32 Pan Head Screws, 3/4"
- (3) 12-24 Pan Head Screws, 3/4"
- (3) 12-24 Cage Nuts "Black"
