HP ML370 G5 - Rackmount Rail Guide

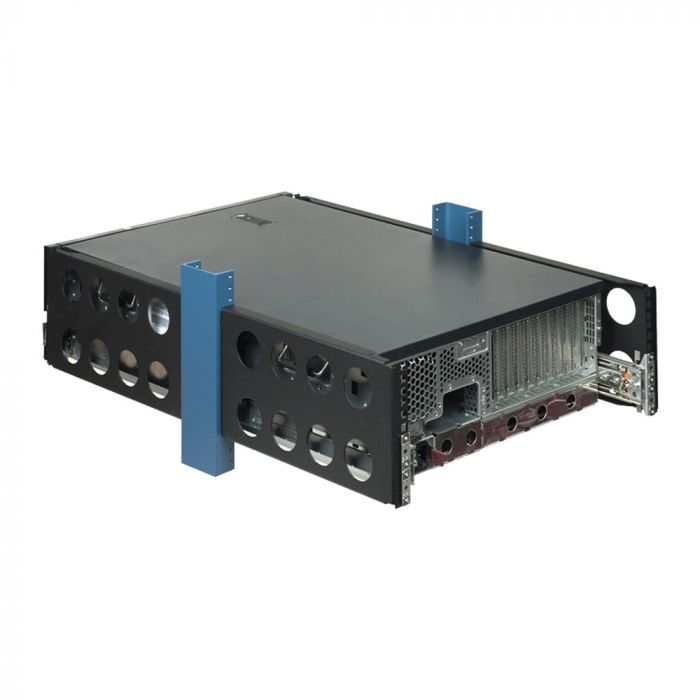

Our Rackmount Rail Guide serves to show how the HP ML370 G5 can be rackmounted in a 2 post server rack. RackSolutions offers the 2POST-5UKIT for center mounting, and the 4UKIT-003 for a flush mount for this model server chassis.


+ HP Standard 3U-7U Universal Rail Kit
Used for Most 19" 4Post Racks
Compatible with both square and round holed racks
Rack mounting depth must be between 24" and 36"
+ 2Post center mount
Use the HP Standard 3U-7U Universal Rail Kit
Convert 5U of 2Post rack to 4Post using 2POST-5UKIT
One kit mounts one server
Compatible with upright depths from 3 - 9"
+ 2Post flush mount
Use the HP Standard 3U-7U Universal Rail Kit
Convert 4U of 2Post rack to 4Post using 4UKIT-003
One kit mounts one server
Compatible with upright depths from 3 - 9"
+ 4Post racks
Use the HP Standard 3U-7U Universal Rail Kit
Tool-free support for racks with square holes
Minimum rack depth 28"
Maximum rack depth 35"
Thread types: 10-32, 12-24, Metric M5, or unthreaded
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
