HP ML350 G5 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HP ML350 G5 can be rackmounted in a 2 post server rack. RackSolutions offers the 2POST-5UKIT for center mounting, and the 4UKIT-003 for a flush mount for this model server chassis. 4 post rack options also available.

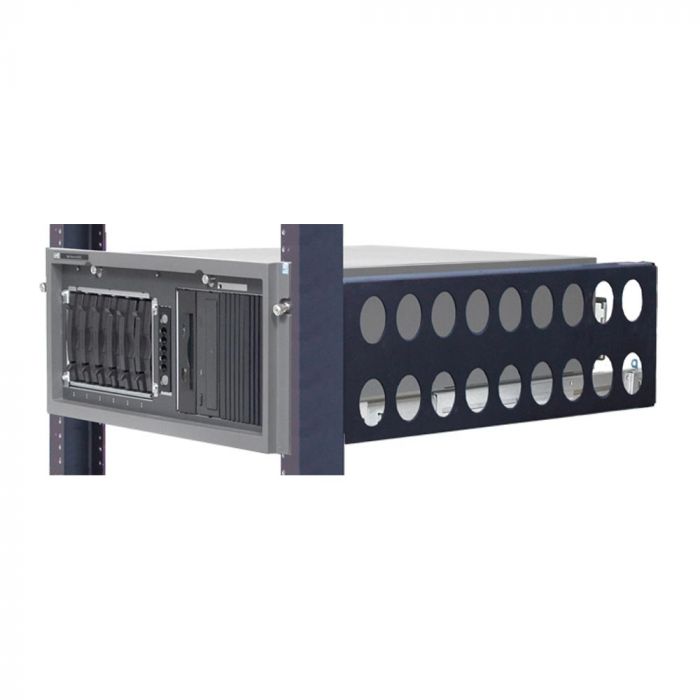

Note: Your server may look different than the one pictured


+ HP Standard 3U-7U Universal Rail Kit
Tool-free support for racks with square or round mounting holes: 24"-36"
+ 2Post center mount
Use the HP Standard 3U-7U Universal Rail Kit.
Convert 5U of 2Post rack to 4Post using 2POST-5UKIT
Compatible with upright depths from 3 - 9"
+ 2Post flush mount
Use the HP Standard 3U-7U Universal Rail Kit.
Convert 4U of 2Post rack to 4Post using 4UKIT-003
Compatible with upright depths from 3 - 9"
+ 4Post racks
Use the HP Standard 3U-7U Universal Rail Kit.
Tool-free support for racks with square holes
Minimum Rack Depth: 23-3/4"
Maximum Rack Depth: 35"
Hole Type: Square, Round
Thread Type: 10-32, 12-24, Metric M5, or unthreaded
If you don't have the HP Rails, RackSolutions' Universal Rails 3UKIT-109 is an option. Tool-less, Universal Rails 3UKIT-109-QR is a great option for square hole racks
Rack Issues, Problems
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
