HP DL560 Gen 9 - Rackmount Rail Guide
Our Rackmount Rail Guide serves to show how the HPE DL560 Gen 9 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 122-2447 as an HP alternative rail for this server chasis, The rail kit mounts in both 4 post and 2 post racks.

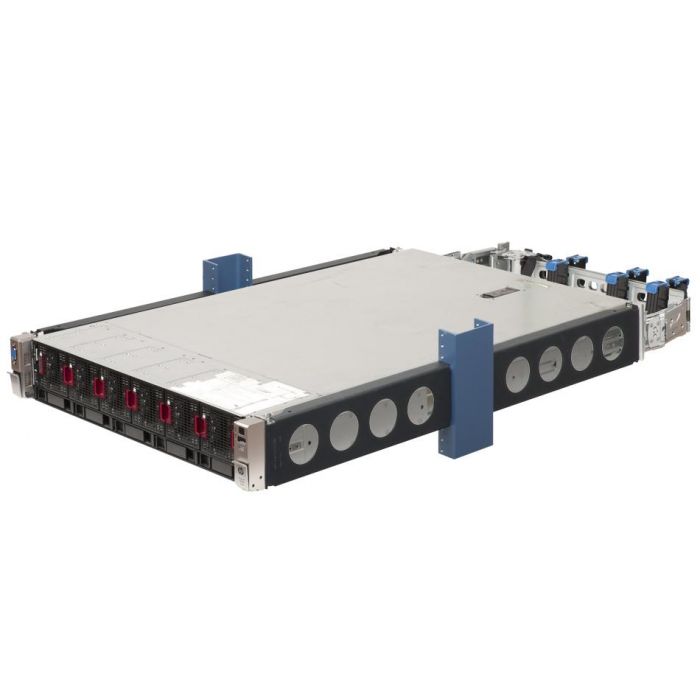

Note: Your server may look different than the one pictured
+ HP Standard 2U Universal Rail KitUsed for most 19" 4Post Racks.
Used for most 19" 4Post racks.
Compatible with both square and round hole racks.
Rack mounting depth must be between 24" and 36" (610-914mm)
+ 2Post Center Mount Racks
Use HP standard 2U universal rail kit.
Convert 2U of 2Post rack to 4Post using 2POST-2UKIT. (one kit mounts one server)
Compatible with 3" wide side channels. Alternative kits available for wider side channels.
+ 2Post Flush Mount Racks
Use the HP standard 2U universal rail kit.
Convert 4U of the 2Post rack to a 4Post rack using 4UKIT-003.
Compatible with 3" wide side channels. Alternative kits available for wider side chanels.
+ Alternative Rails
2Post or 4Post Rail Kit 122-2447.
Compatible with 2Post racks with side channel from 3" to 10". Centermount or Flushmount configurations.
Compatible with racks with installation depths from 24" or 32".
Compatible with all mounting interfaces: square, round, or threaded holes.
+ Wall Mounting
Use HP Universal Rail Kit.
Use 2URACK-110 Wall Mount Kit.
Rack issues, problems?
Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.
