HP DL380 G7 - Rackmount Rail Guide

Availability: In stock

HP DL380 G7 - Rackmount Rail Guide

HP Standard 2U Universal Rail Kit

Used for Most 19" 4Post Racks.
Compatible with both square and round holed racks.
Rack mounting depth must be between 23 11/16" and 36 3/8"

2Post center mount racks

  1. Use the HP standard 2U universal rail kit. Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (One kit mounts one server)
  2. Compatible with upright depths from 3 - 10"

2Post flush mount racks

  1. Use the HP standard 2U universal rail kit
  2. Convert 4U of the 2Post rack to a 4Post rack using
    4UKIT-003 (two servers per 4U kit)
  3. Compatible with upright depths from 3 - 10"

4Post racks

  1. Use HP's Quick deploy rail system (no RackSolutions product needed)
  2. Tool-free support for racks with square or round mounting holes
  3. Adjustment range of 24 - 36" (610 - 914 mm)
  4. If you don't have the HP Rails, you may use RackSolutions' Fixed Universal Rails, P/N: 2UKIT-109

Wall Mounting

  1. Use HP Universal Rail Kit
  2. Use 2URACK-110 Wall Mount Kit

Rack Issues, Problems

  1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.

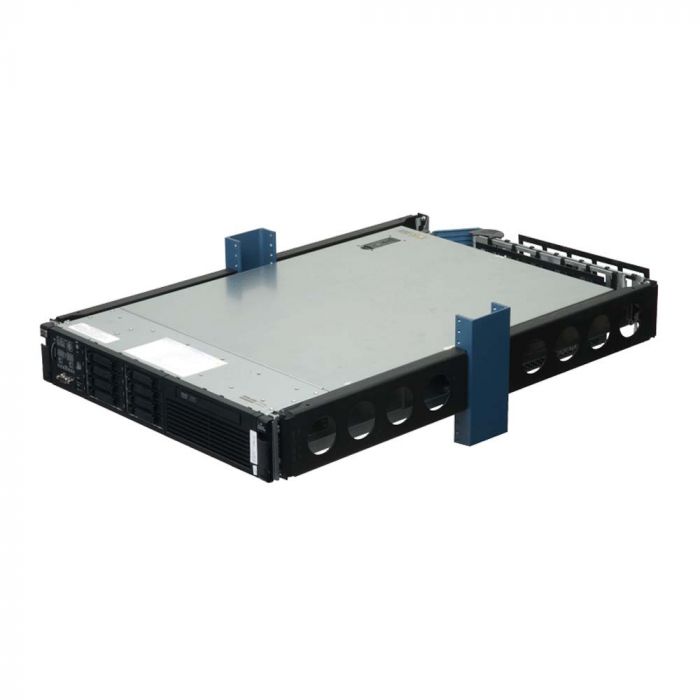

Note: Your server may look different than the one pictured

HPE Servers
Product Name SKU Price Qty
2U, 2Post Conversion Kit 2POST-2UKIT
Excl. VAT: €85.00 Incl. VAT: €99.45
2U, Universal Rack Rails 2UKIT-109
Excl. VAT: €95.00 Incl. VAT: €111.15
2U Wallmount Rack 2URACK-110
Excl. VAT: €142.00 Incl. VAT: €166.14
4U, Flush Mount, Conversion Kit for 2Post Racks 4UKIT-003
Excl. VAT: €165.00 Incl. VAT: €193.05
Description

Details

Our Rackmount Rail Guide serves to show how the HP DL380 G7 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2POST-2UKIT and 4UKIT-003 as mounting solutions for this server chassis.
