HP DL380 G5 - Rackmount Rail Guide

Availability: In stock

HP DL380 G5 - Rackmount Rail Guide

HP Standard 2U Universal Rail Kit

Used for Most 19" 4Post Racks.
Compatible with both square and round holed racks.
Rack mounting depth must be between 22" and 35 3/4"

2Post center mount

  1. Use the HP standard 2U universal rail kit. Convert 2U of 2Post rack to 4Post using 2POST-2UKIT (One kit mounts one server)
  2. Compatible with upright depths from 3 - 10" (76 - 254 mm)

2Post flush mount

  1. Use the standard 2U universal rail kit
  2. Convert 4U of 2Post to 4Post using 4UKIT-003 (two servers per 4U kit)
  3. Compatible with upright depths from 3 - 10" (76 - 254 mm)

4Post Racks

  1. Use the HP standard
  2. Use 2UKIT-109 2U Universal Rail Kit
  3. Tool-free support for racks with square, round holes
  4. Adjustable rack depth 22 - 35.7" (559 - 907 mm)
  5. Fits square, round holes
  6. Thread types: 10-31, 12-24, metric M5, unthreaded

Wall Mounting

  1. Use HP Universal Rail Kit
  2. Use 2URACK-110 Wall Mount Kit

Rack Issues, Problems

  1. Call RackSolutions if you have racking issues or if your rack is not in the ranges listed above.

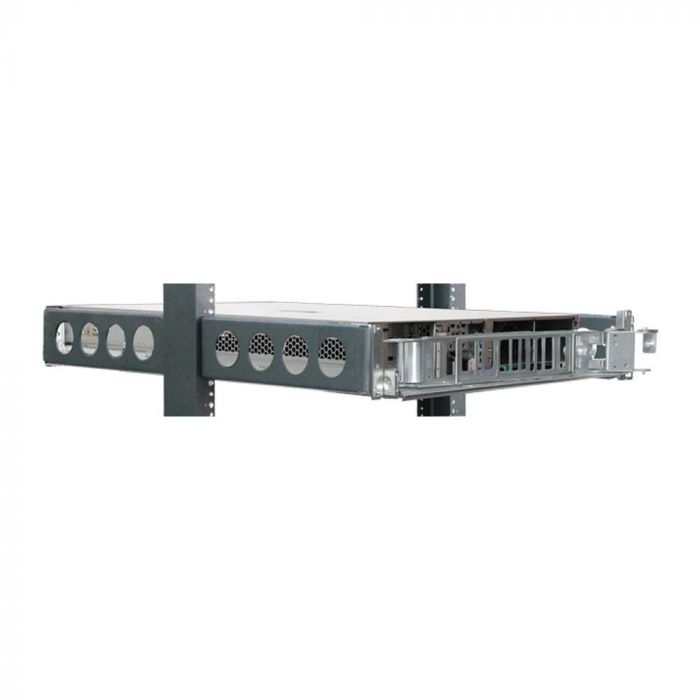

Note: Your server may look different than the one pictured

HPE Servers
Product Name SKU Price Qty
2U, 2Post Conversion Kit 2POST-2UKIT
Excl. VAT: €85.00 Incl. VAT: €99.45
4U, Flush Mount, Conversion Kit for 2Post Racks 4UKIT-003
Excl. VAT: €165.00 Incl. VAT: €193.05


Our Rackmount Rail Guide serves to show how the HP DL380 G5 can be rackmounted in both 4 post and 2 post configurations. RackSolutions offers the 2UKIT-109 and 4UKIT-003 as mounting solutions for this server chassis.
