HP DL320 G5P, DL320S, DL160 G6 Rack Rails

Availability: Out of stock

HP DL320 G5P, DL320S, DL160 G6 Rack Rails
  • Front view 4Post with server - HP DL320G5P Fixed Rails
    Front view 4Post with server - HP DL320G5P Fixed Rails
    close
  • Rear view 4Post with server - HP DL320G5P Fixed Rails
    Rear view 4Post with server - HP DL320G5P Fixed Rails
    close

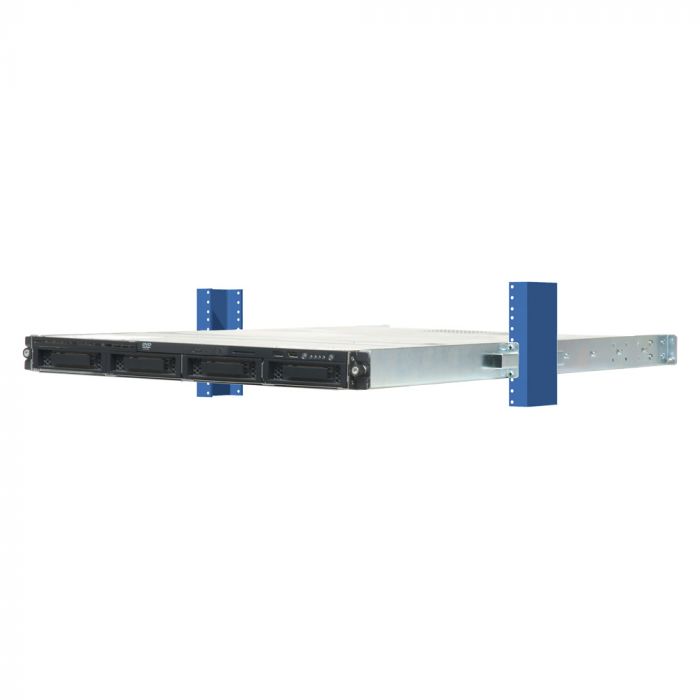

  • Side view, 2Post center mount with server - HP DL320G5P Fixed Rails
    Side view, 2Post center mount with server - HP DL320G5P Fixed Rails
    close
  • Rear view, 2Post center mount with server - HP DL320G5P Fixed Rails
    Rear view, 2Post center mount with server - HP DL320G5P Fixed Rails
    close

Fits any 4Post,2Post rack

  • Square, round, threaded holes
  • Supports L, C, Z, and ? rack upright shapes
  • HP standard rail kit not required

4Post Mounting

  • 4Post Mounting: Requires the P/N: BRK-HP-4P-001

2Post Mounting

  • 2Post Center Mount: Requires the P/N: BRK-HP-2PC-001
  • 2Post Flush Mount: Requires the P/N: BRK-HP-2PF-001

HPE Servers
Rack Solutions Promise
Product Name SKU Price Qty
2Post Centermount Rails for HP DL320 G5P, DL320S, DL160, DL360 G6/G7 BRK-HP-2PC-001
Excl. VAT: €70.00 Incl. VAT: €81.90

Out of stock

4Post Rails for HP DL320 G5P, DL320S BRK-HP-4P-001
Excl. VAT: €75.00 Incl. VAT: €87.75

Out of stock

Description

Details

Features

These three rail kits allow the HP DL320 G5P to be installed into any type of server rack. These rail kits replace the HP rail kits that would normally come with the sever. The rail kits are compatible with several of the HP servers such as the DL320S, DL120 G7 and the DL160. These rail kits allow the DL320 G5P to be installed into a typical 4Post server racks as well as 2Post server racks in both the center mount and flush mount configurations.

Additional Information

Additional Information

Compatibility HP DL320 G5P
HP DL320S
HP DL160 G6
HP DL120 G7
Rail OEM HP
Fixed/Sliding Fixed
Tool-less/Standard Standard
Included Hardware All necessary hardware is included
Cable Management Cabling crossbar is included
Assembly Notes Phillips head screwdriver required
Rail Type Fixed rail, non-ball bearing slides
Mounting Depth Range 4Post rack dimensions: Compatible with server rack depths from 3" (76.2 mm) to 32.5" (825.5 mm)
2Post rack dimensions: Compatible with relay racks with upright dimensions of 3" (76.2 mm)
Tech Notes This rail kit replaces the HP rail kit in installations where the HP rail kit is incompatible with the existing server rack
BRK-HP-2PC-001: 2Post center mount
BRK-HP-2PF-001: 2Post flush mount
BRK-HP-4P-001: 4Post
Finish Zinc plated
Rack Units 1U
Rack Type 2 Post , 4 Post
RoHS Compliant Yes
Hole Type Compatible with the industry standard 3/8" (10 mm) square hole racks
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
