Data Center Rack Cabinet Enclosures

As low as €0.00 €0.00
In stock
Ships fully assembled. Loading dock or lift gate required for delivery.

Unique Features:

  • Side panels secured via inaccessible fasteners
  • All doors open 180°
  • No internal airflow recirculation
  • Casters and levelers not required, saving significant cost
  • Clearly marked rack units on EIA uprights of the rack

Features & benefits

  • 48" or 42" of physical depth will easily accommodate modern equipment
  • Rack Units: 42U or 48U
  • Reversible doors
  • Static load of 3000 lbs
  • Compatible with overhead cabling and raised floor cabling systems
  • Robust steel frame

Please call for shipping rates to Hawaii, Alaska and Puerto Rico.

Rack-151

Available Heights
18U, 22U, 27U, 32U, 37U, 42U

Available Depths
39" (1000mm)

Available Widths
23.6" (600mm)

Weight Capacity (Static)
1680 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Management Bars Included

Customizable Configuration

151SW

Available Heights
24U, 32U, 37U, 42U, 48U

Available Depths
42", 48" (1070 mm, 1200mm)

Available Widths
23.6", 31.5" (600mm, 800mm)

Weight Capacity (Static)
3000 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Management Bars Included

Customizable Configuration

151DC

Available Heights
16U, 42U, 45U, 48U

Available Depths
42", 48" (1070 mm, 1200mm)

Available Widths
24", 30" (610mm, 762mm)

Weight Capacity (Static)
3000 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Management Bars Included

Customizable Configuration

Rack-151

151SW

151DC

Available Heights

18U, 22U, 27U, 32U, 37U, 42U

24U, 32U, 37U, 42U, 48U

16U, 42U, 45U, 48U

Available Depths

39" (1000mm)

42", 48" (1070 mm, 1200mm)

42", 48" (1070 mm, 1200mm)

Available Widths

23.6" (600mm)

23.6", 31.5" (600mm, 800mm)

24", 30" (610mm, 762mm)

Weight Capacity (Static)

1680 lbs

3000 lbs

3000 lbs

Rack and Stackable

19" EIA Square Mounting Holes

Adjustable Mounting Depth

Fully Enclosed Rack with Perforated Locking Doors

(2) Vertical Cable Managment Bars Included

Customizable Configuration

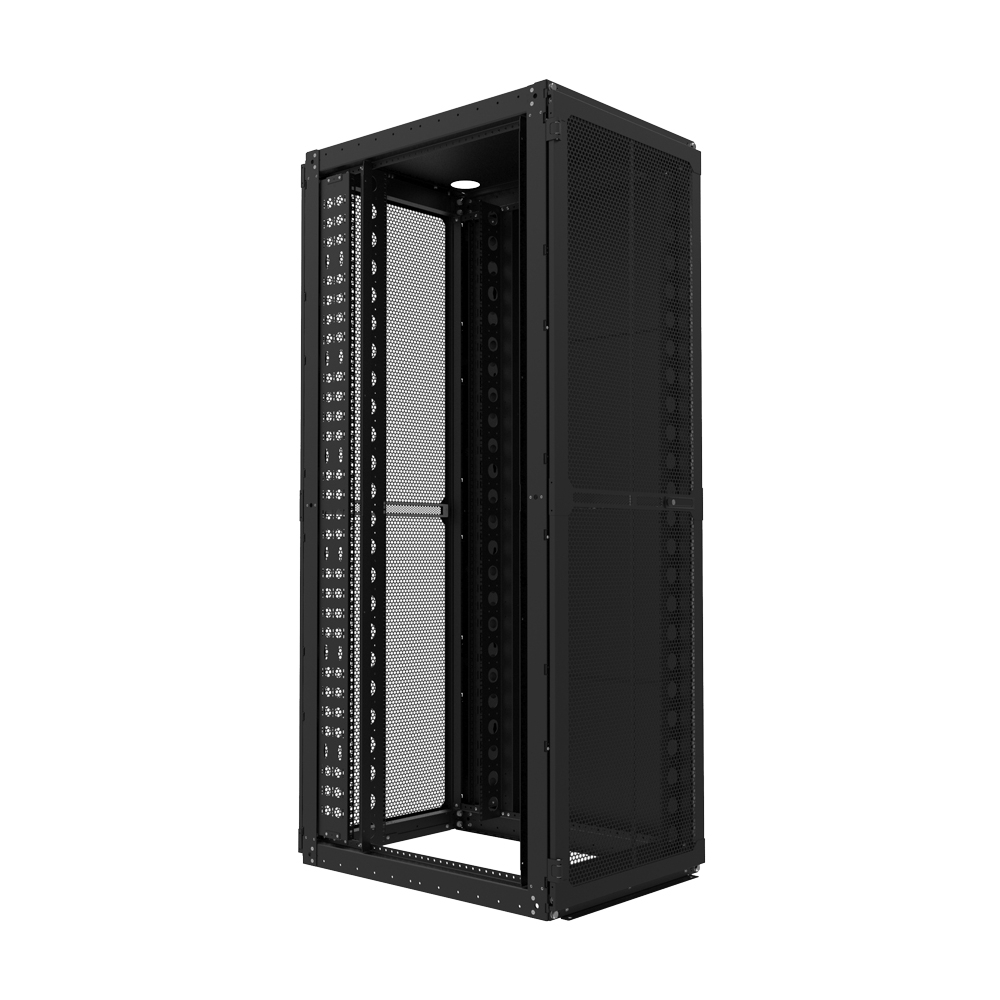

Custom Configurable Racks

The RackSolutions 151DC Data Center enclosed server racks are compatible with Dell, HP and IBM servers and computers. They are also compatible with most other standard brands as well. These server racks meet the EIA standards for 19" server racks.The fully enclosed server racks range in size from a 42U server rack or a 48U server rack, perfect for most any server room or data center. These racks also ship fully assembled and ship on a pallet . Security has been addressed as well, with our locking front and back doors and locking side panels.

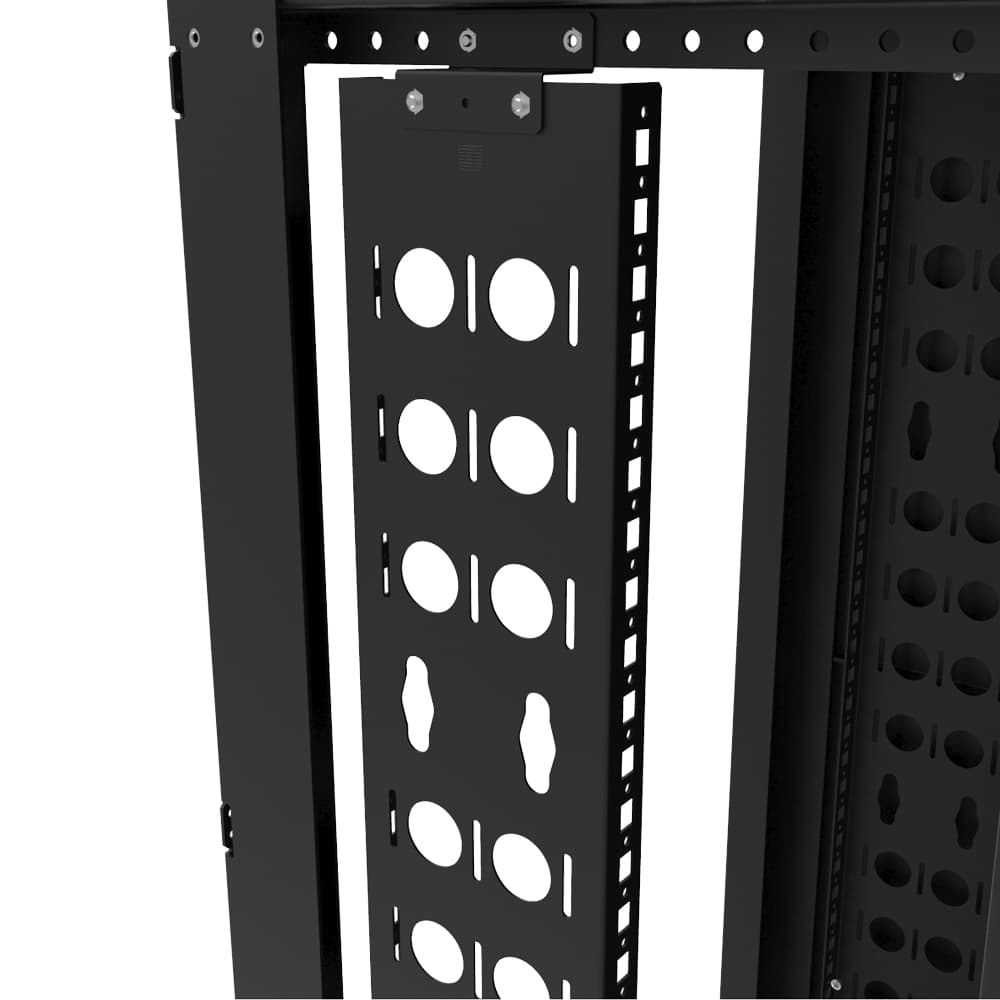

Cable Management Bars

Each of these racks come standard with 2 vertical cable management bars. The 5" width of the cable management bars create enough room to mount 2 APC style PDUs side by side. The design allows for the cable management bars to be recessed for maximum airflow pass through.


Casters & Leveling Feet Kit

This user installed upgrade kit adds casters and leveling feet to the rack to allow the rack to move while fully populated with 3000 lbs.Once the rack is rolled into place it can then be set on the leveling feet.

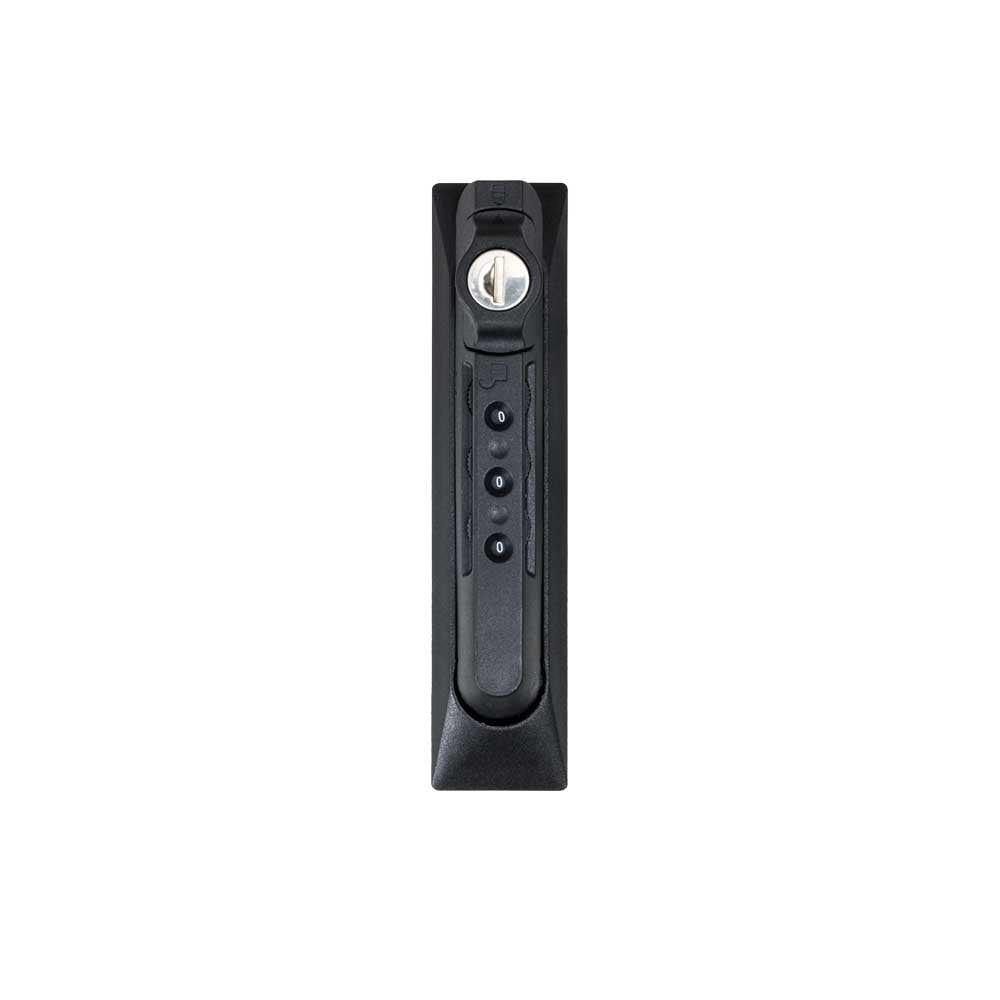

Lock Upgrade (106-4075)

The lock upgrade gives you the option of using the key or combination lock to access the rack. This feature is user install-able even after the purchase of rack. This upgrade changes the locks on the front and rear doors.

Note: This upgrade is a factory installed upgrade and may delay shipment.


RackSolutions 30 Inch Wide Cabinet Rack RackSolutions 30 Inch Wide Cabinet Rack

30" Wide Cabinet

The 30" Wide Cabinet is ideal as a network rack enclosure. This rack has cable pass throughs on the front uprights that run from the front to the rear of the rack. The extra width allows for high density cabling situations with network switches.

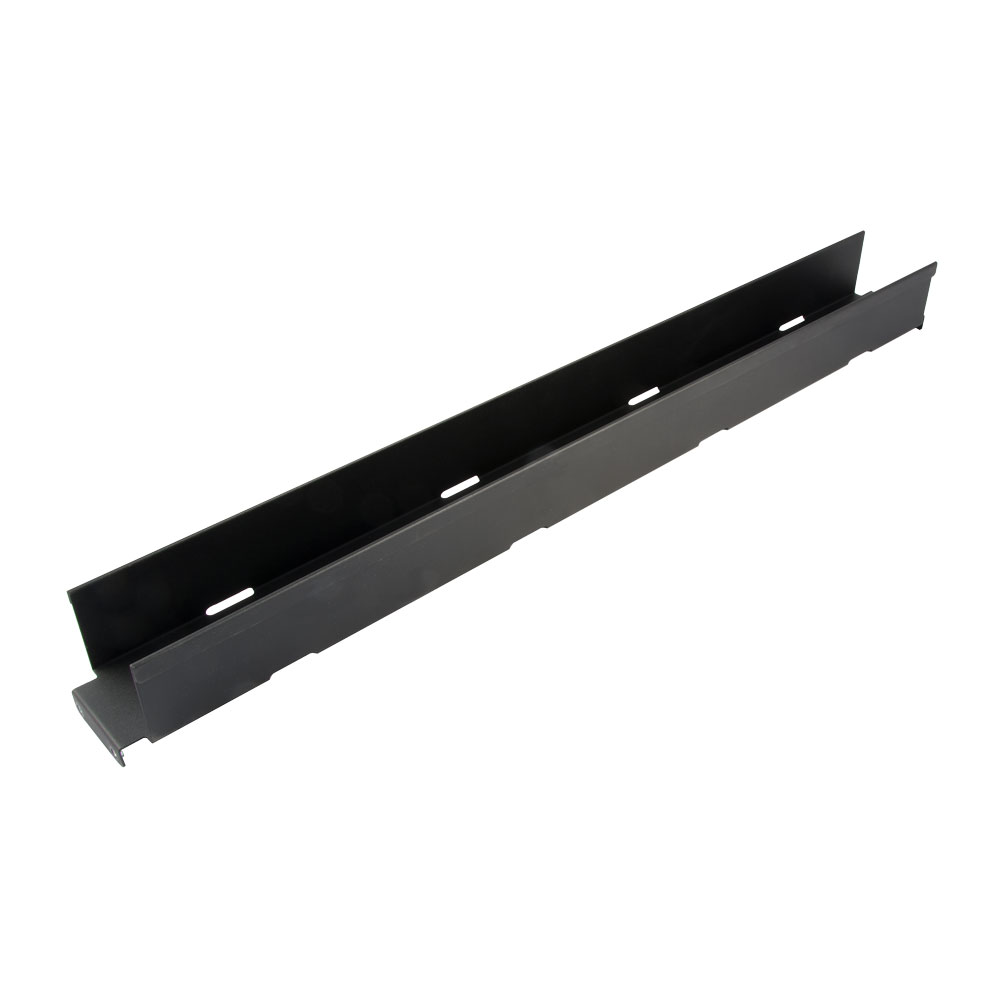

Cable Tray for 30" Wide RackCable Tray for 30" Wide Rack

Cable Tray for 30" Wide Rack

This cable management tray (137-3111) runs horizontally through the depth of the rack (151DC-3969 Only).

More Information
Product Line 151DC
Visbility Bypass Enabled Yes
Rack Type 4 Post Rack, Enclosed
Hole Type EIA 3/8" square holes
Rack Internal Width EIA 19" Standard Rack
Tech Notes Static load capacity - 3000 lbs
Dimensions: 56”H x 23.6”W x 39”D Weight: 312 lbs (151SW-4561)
Dimensions: 64.8”H x 24”W x 42”D Weight: 360 lbs (151SW-4562)
Dimensions: 90.6”H x 24”W x 48”D Weight: 431 lbs (151DC-4070)
Dimensions: 80”H x 24”W x 42”D Weight: 384 lbs (151DC-4071)
Dimensions: 90.6”H x 30”W x 42”D Weight: 448 lbs (151DC-3969)
Dimensions: 85.4"H x 24.9"W x 48"D Weight: 438 lbs (151DC-4453)
Includes 2 vertical cable management bars that are the same height as the U space.
Note: The caster kit adds 2" of height to any data center rack.
"EIA-310 19” Rack
Square hole mounting posts
Multiple cage nut sizes fit in square holes
Reversible doors
Finish Durable, powder coat finish
Assembly Notes Ships fully assembled on a pallet
Rack Doors Removable, lockable and reversible
RoHS Compliant Yes
TAA Compliant Yes

Download 131-2328 Caster Kit Dimensional Drawing

Download 131-2328 Caster Kit Installation Instructions

Download 151DC Data Center Enclosure Data Sheet

Download Rack Dimensional Drawing (151DC-3969)

Download 151DC-4070,151DC-4071 Dimensional Drawing

Download Combination Lock Instructions
